- Excellent strength
- Anti-corrosive
- Accurate dimension
Product Code: PSK410
EAN: 8720028101672
PRODUCT DESCRIPTION

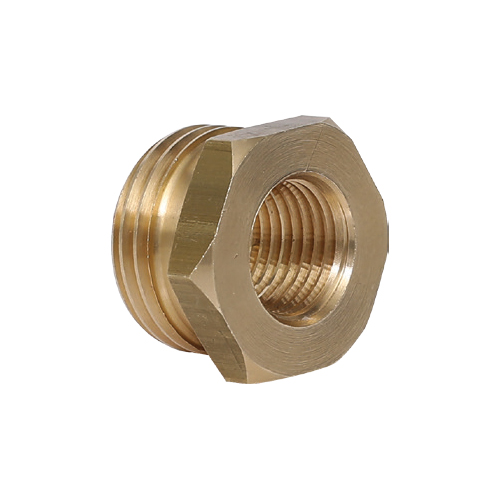

reducing nipple / reducers / hex nipple reducer
This reducing nipple is used to transfer internal BSP thread 1/2’’ to bigger external BSP thread 3/4’’ or the other way around.
- Thread type internal = BSP 1/2"
- Thread type external = BSP 3/4"
- Pressure rating = 30bar
- Operating temperature = 90 - 100C
- Material = brass
Technical specifications
Dimensions and weights
- Weight =0.03Kg
- Product weight =0.026Kg
- Length =13.0mm
- Width =25.0mm
- Height =25.0mm
- Product Length =13.0mm
- Product Width =25.0mm
- Product Height =25.0mm
