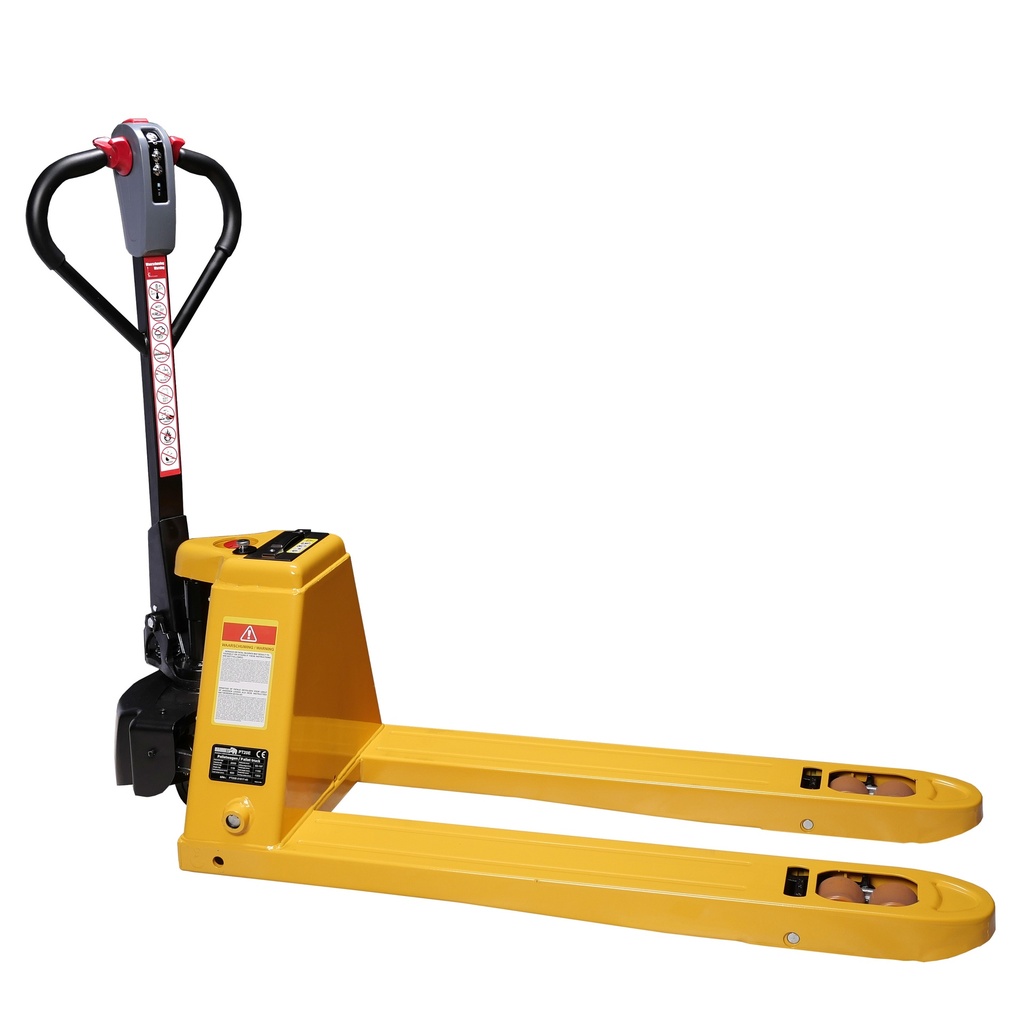

[PT20E] Mammuth electric pallet truck 2000 kg

€ 0.00 € 900.00

  • Lifting capacity
  • Lifting height min.
  • Lifting height max.
  • Battery type
  • Battery voltage
  • Power supply
  • Fork size (length x width x height)
  • Fork overall width
  • Gradeability max. loaded / unloaded
  • Driving speed loaded max.
  • Driving speed no-load max.
  • Lifting speed loaded
  • Lifting speed unloaded
  • Lowering speed loaded
  • Lowering speed unloaded
  • Turning radius
  • Wheel material
  • Steering wheel diameter
  • Load wheel diameter
  • Fully electric
  • Lifting capacity 2000 kg
  • Brushless motor
  • Removable lithium battery
  • Polyurethane wheels

Logistics / Pallet jacks / Electric pallet trucks

Product Code: PT20E

EAN: 8720028107490

PRODUCT DESCRIPTION

The Mammuth electric pallet truck is designed for internal pallet transport in warehouses, distribution centres and production areas. With a lifting capacity of 2000 kg, this electric pallet truck is suitable for moving loaded pallets in daily logistics operations.

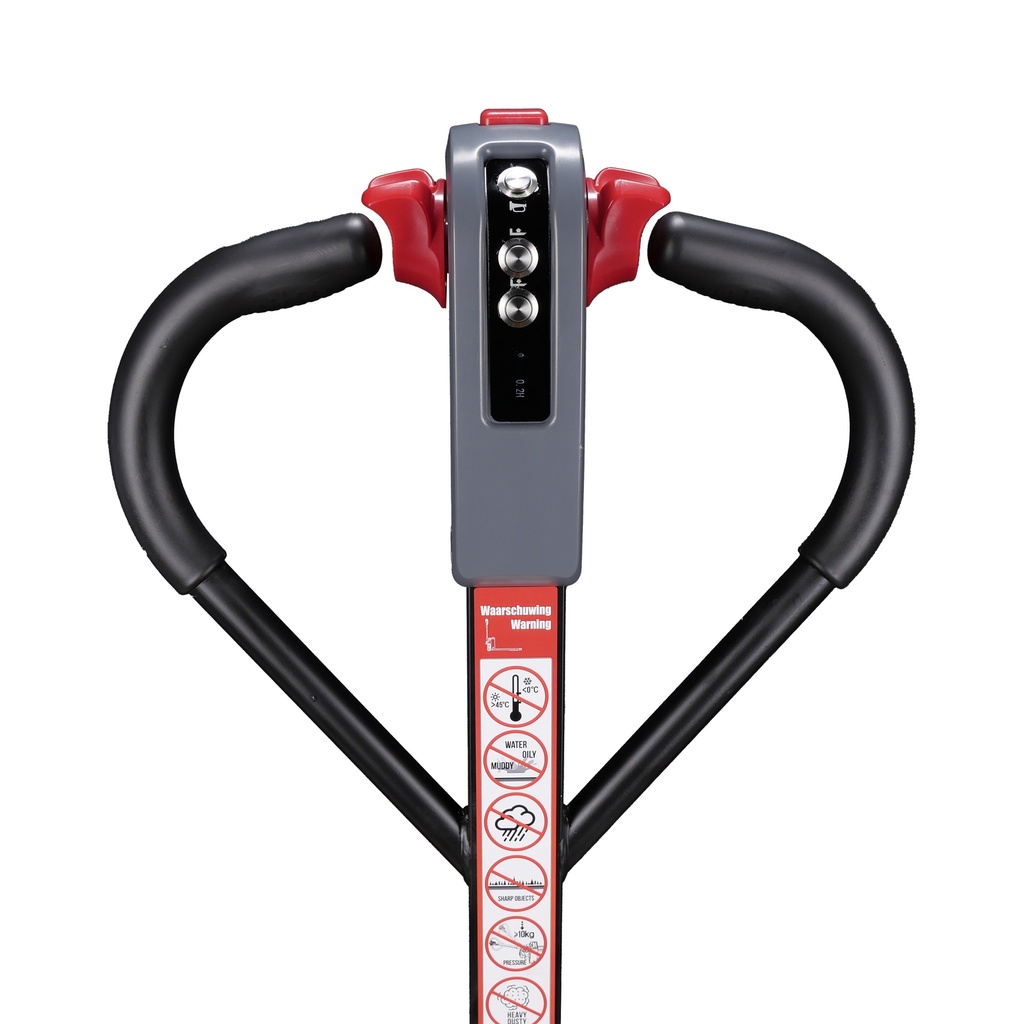

Operation is via the tiller, with electric driving, lifting and lowering to reduce physical strain during pallet transport. Drive is provided by a brushless motor to minimise motor maintenance, while polyurethane wheels ensure stable driving characteristics and good traction on flat, smooth floors.


The removable lithium battery has a long service life and is charged using the supplied 230 V charger. Battery status can be read on the indicator, with a warning signal at low battery voltage, allowing better planning of operation and charging moments.


Key features:

  • Fully electric

Ease of use when driving, lifting and lowering via the controls.


  • Lifting capacity 2000 kg

Sufficient load capacity for loaded pallets.


  • Brushless motor

Efficient drive with reduced maintenance requirements.


  • Removable lithium battery

Long service life and quick battery replacement, charging via 230 V.

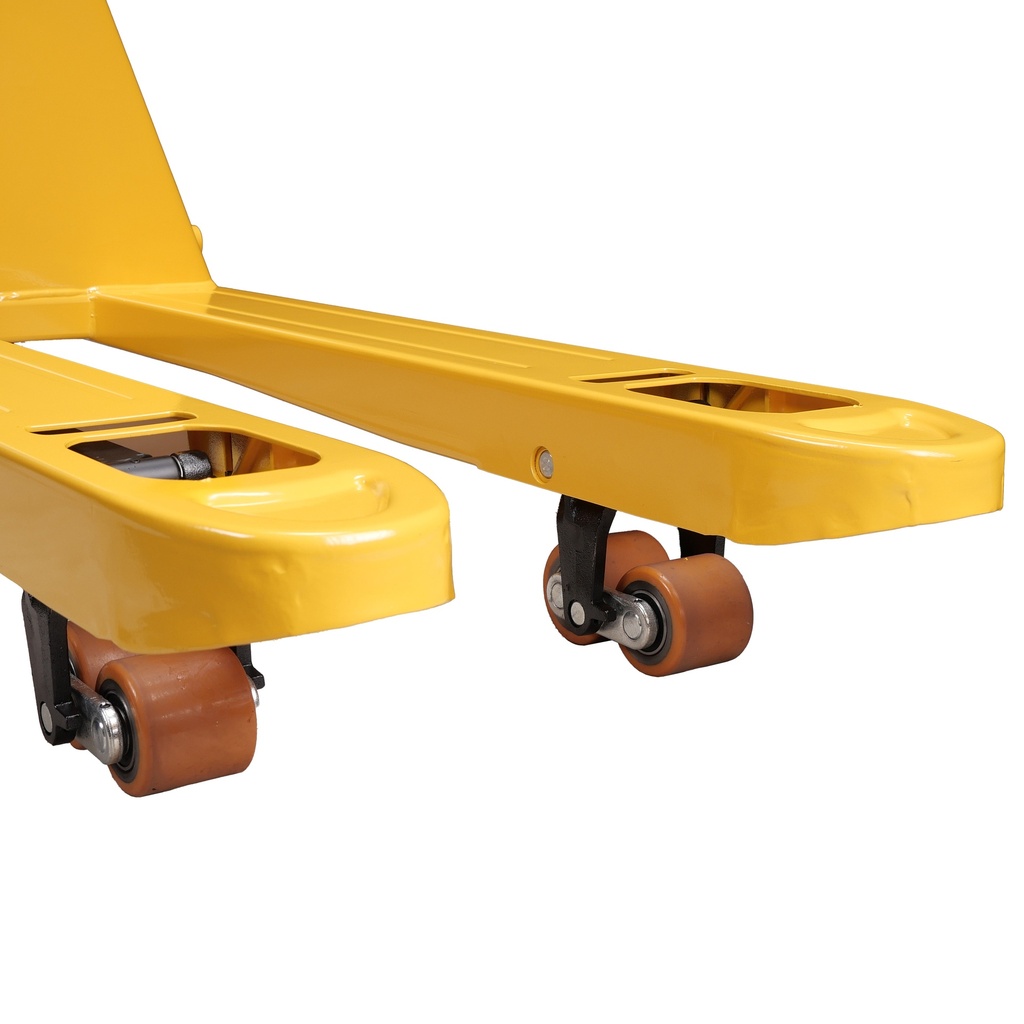

  • Polyurethane wheels

Good traction and smooth running on flat warehouse floors.

Technical specifications

  • Lifting capacity = 2000 kg
  • Lifting height min. = 84 mm
  • Lifting height max. = 190 mm
  • Battery type = lithium-ion
  • Battery voltage = 48V/15Ah
  • Power supply = 230V
  • Fork size (length x width x height) = 1150 x 160 x 65mm
  • Fork overall width = 540 mm
  • Gradeability max. loaded / unloaded = 6% / 20%
  • Driving speed loaded max. = 4 km/h
  • Driving speed no-load max. = 4.5 km/h
  • Lifting speed loaded = 18 mm/sec
  • Lifting speed unloaded = 23 mm/sec
  • Lowering speed loaded = 56 mm/sec
  • Lowering speed unloaded = 46 mm/sec
  • Turning radius = 1353mm
  • Wheel material = Polyurethane
  • Steering wheel diameter = 140 mm
  • Load wheel diameter = 80 mm

Dimensions and weights

  • Weight =117.0Kg
  • Product weight =117.0Kg
  • Length =1560.0mm
  • Width =550.0mm
  • Height =1255.0mm
  • Product Length =1560.0mm
  • Product Width =550.0mm
  • Product Height =1255.0mm
