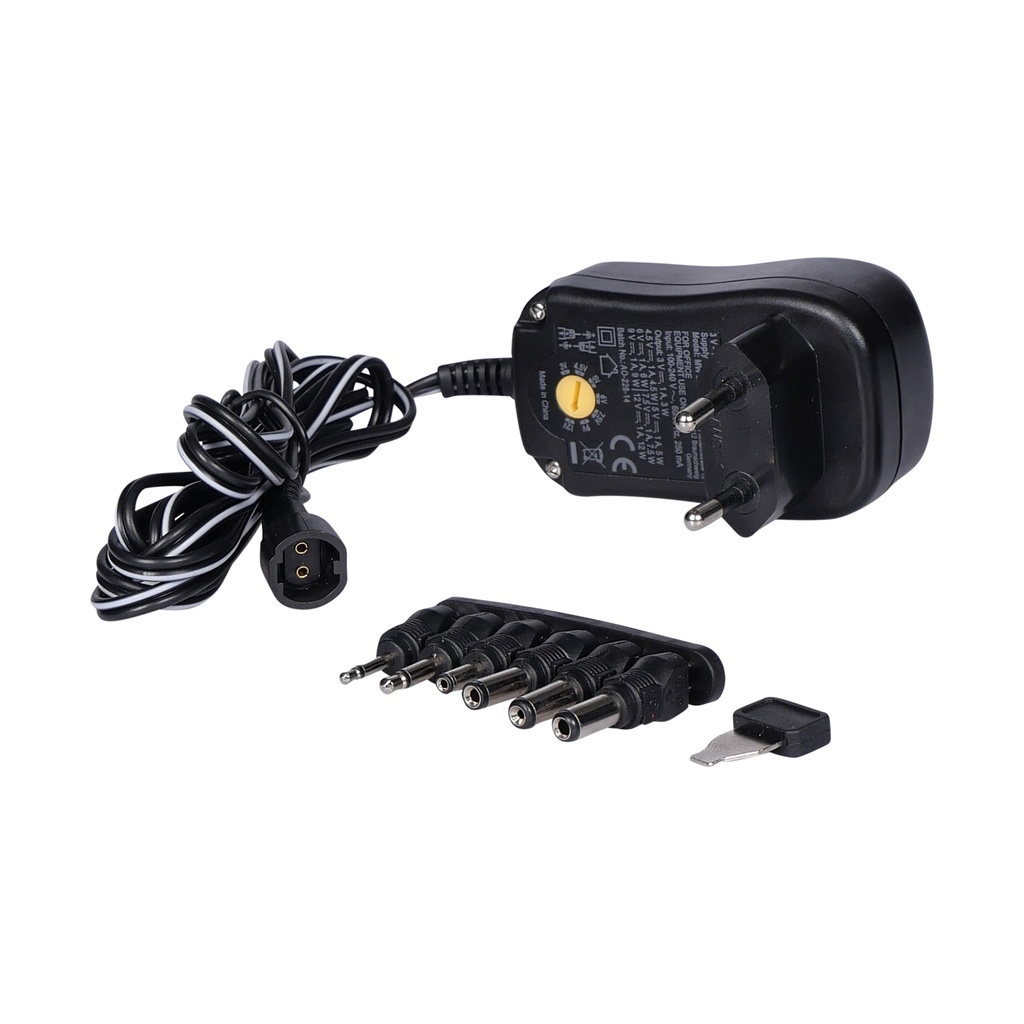

[PUA01A] Universal AC DC adapter

Universal power adapter

This universal AC/DC adapter is ideal for connecting various devices to the mains supply to power or charge them. The adapter comes with 6 interchangeable plugs and is easy to set to 7 different voltages.

Technical specifications:

• voltage in = 100~240V / 50-60Hz

• voltage off =


  - 3.0V DC @ 1A, 3W

  - 4.5V DC @ 1A, 4.5W

  - 5.0V DC @ 1A, 5W

  - 6.0V DC @ 1A, 6W

  - 7.5V DC @ 1A, 7.5W

  - 9.0V DC @ 1A, 9W

  - 12.0V DC @ 1A, 12W

• current = 250mA

• max efficiency = 72.5%

• cable length = 1,8m

Suitable for the lamps LB10LIS, LB10BAS, WL04CM, WL04UV and ML50LED. Also suitable for the LED lighting 8W for workshop modules GC8WLED, it is possible to connect 3 of these LED bars to 1 adapter.

Note: The polarity is reversible, make sure it is set correctly.

Dimensions of interchangeable plugs:

• 2.5mm

• 3.5mm

• DC 3.5 x 1.35mm

• DC 5.0 x 2.1mm

• DC 5.5 x 1.5mm

• DC 5.5 x 2.5mm
