PRODUCT DESCRIPTION

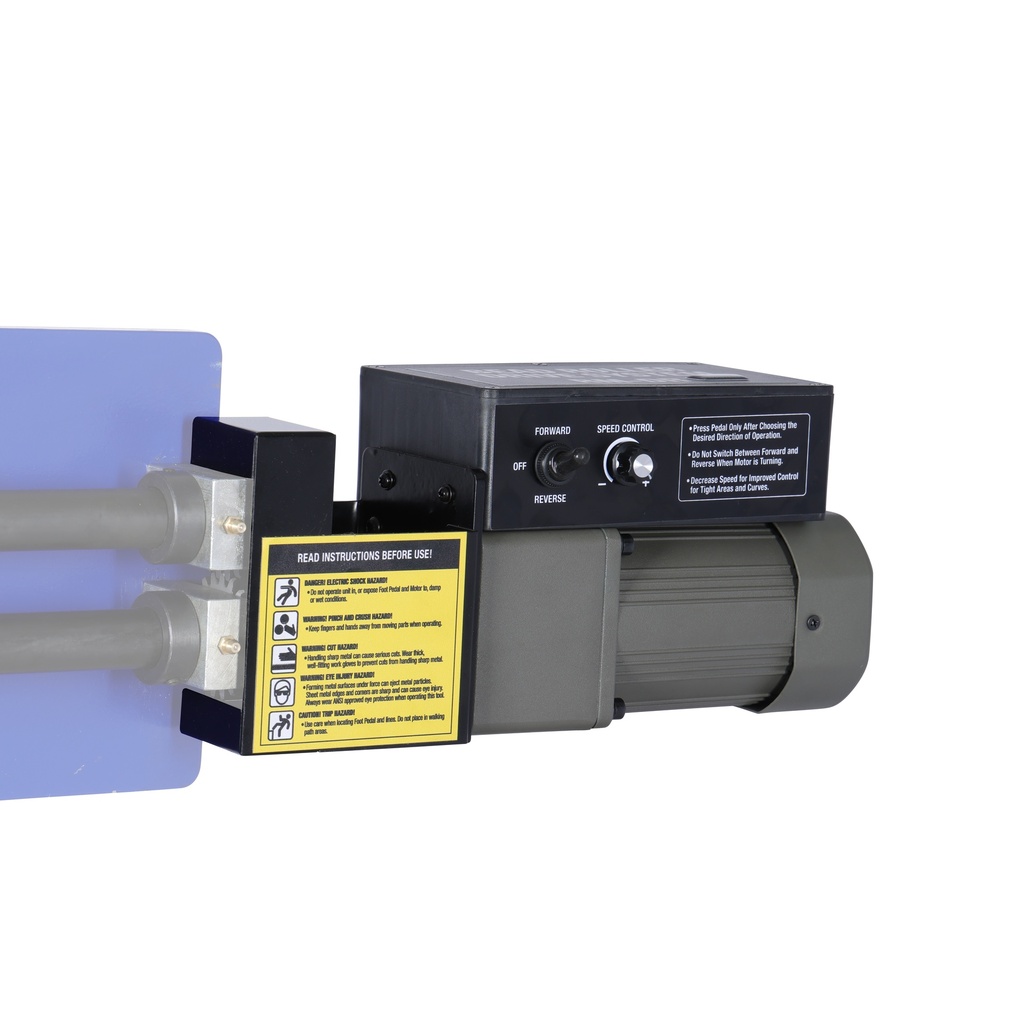

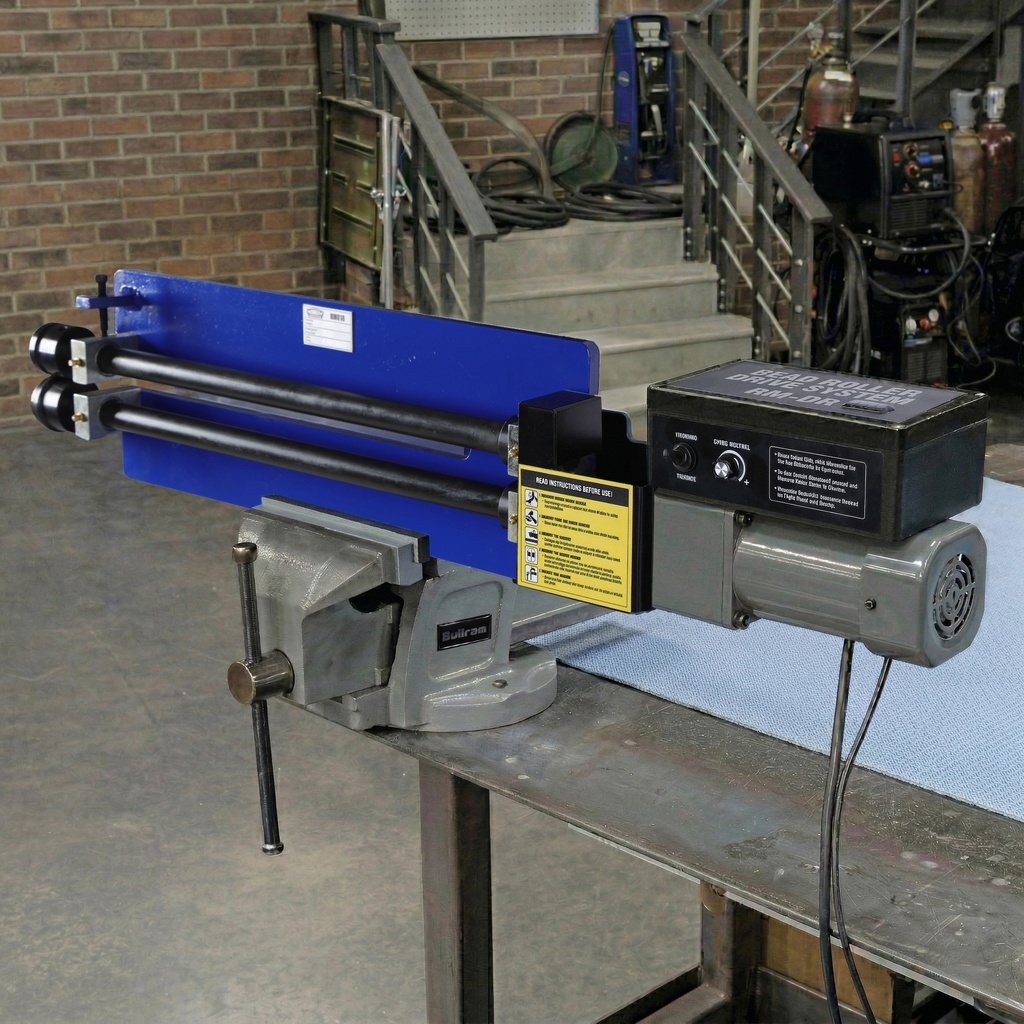

The Cowley motor conversion kit converts a manual beading machine into a motor-driven machine for beading, flanging and other sheet metal operations. This conversion kit is suitable for the Cowley RM018 and comparable manual machines with matching shaft connection and mounting points.
Forward/reverse switching allows processing in both directions, while the infinitely variable speed helps to precisely match the working speed to the material and operation. Operation via a foot pedal keeps both hands free for guiding the workpiece.
Key features:
- Motor drive
Enables continuous operation without hand crank.
- Forward/reverse switchable
Allows processing in both directions.
- Infinitely variable speed
Allows precise adjustment of working speed to material and operation.

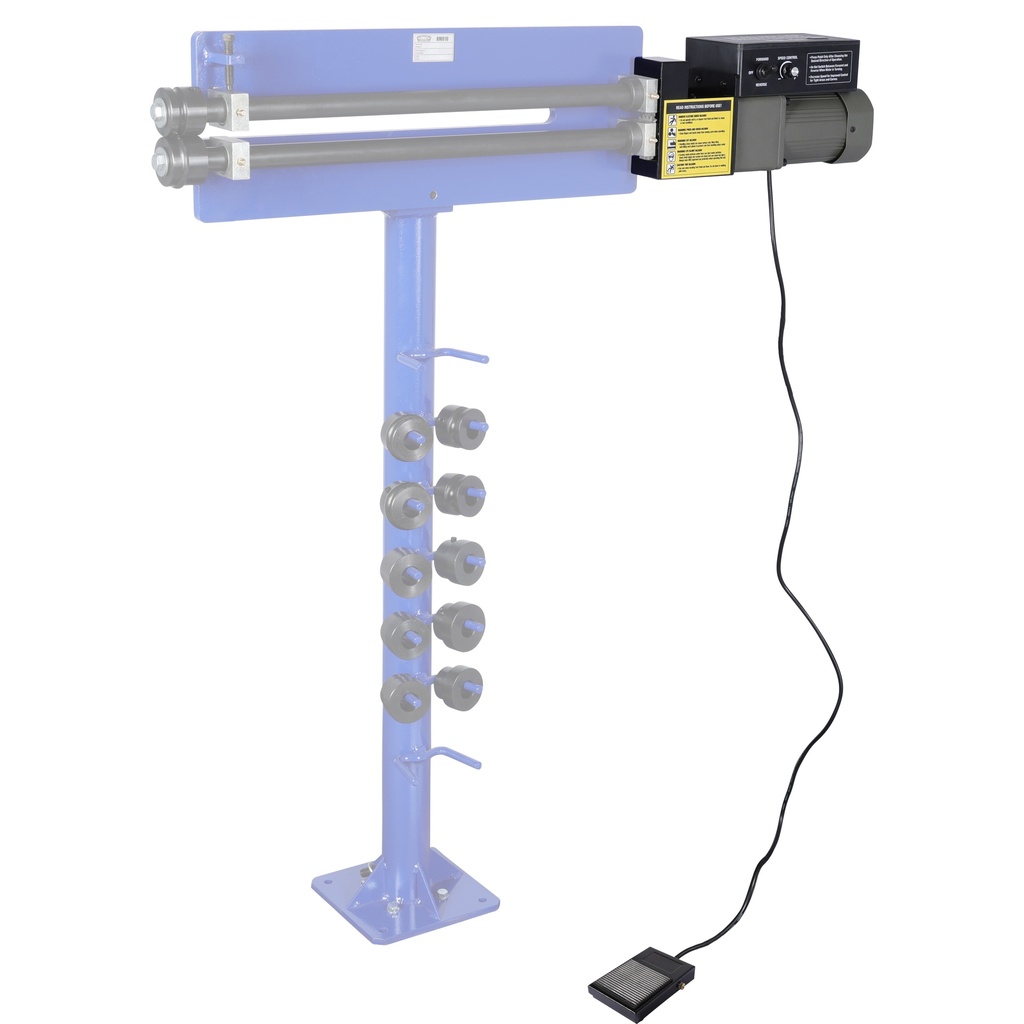

- Foot pedal control
Keeps both hands free for guiding the workpiece.
- Suitable for RM018 and comparable machines
Fits manual beading machines with matching shaft connection and mounting points.
Technical specifications
- Motor power = 120 W
- Current = 1.65 A
- Rotation speed = 0 - 20 rpm
- Bead roller shaft diameter = 25 mm
- Minimum free shaft length on the bead roller = 13 - 16 mm
Dimensions and weights
- Weight =10.0Kg
- Product weight =9.0Kg
- Length =450.0mm
- Width =200.0mm
- Height =230.0mm
- Product Length =405.0mm
- Product Width =115.0mm
- Product Height =150.0mm
