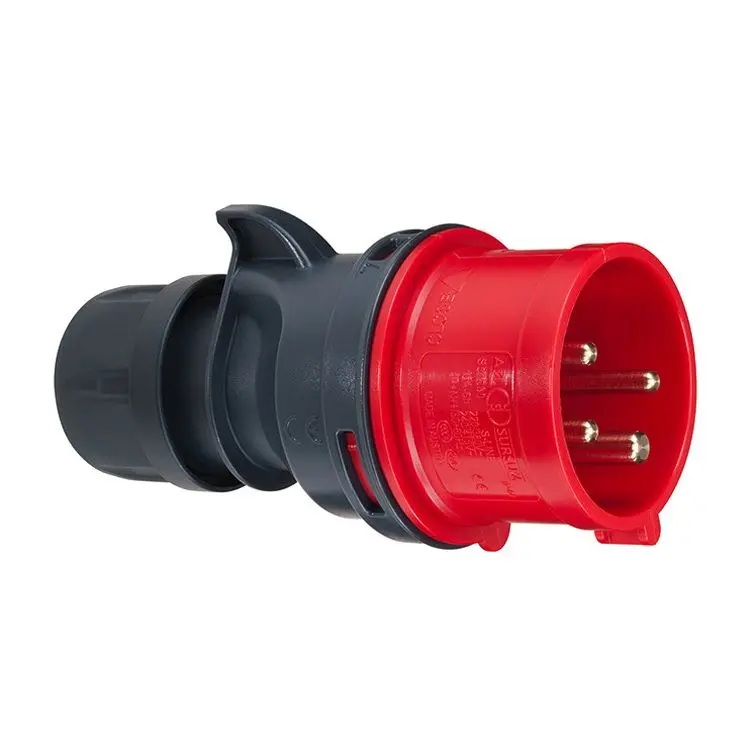

CEE plug 5 pins 16A

[S51S30] CEE plug 5 pins 16A

€ 0.00 € 5.50

  • Rated current (400V)
  • Voltage
  • Poles number
  • Cable entry
  • IP protection rating
  • Material
  • Connection type
  • Angle of plug
  • Earth pin position
  • Cable diameter
  • Voltage according to EN 60309-2
  • Packaging
Add to cart
Add to wishlist
Contact Us

Electrical and accessories / Electric equipment and material / Cable plugs

Product Code: S51S30

EAN: 4011721102085

PRODUCT DESCRIPTION

CEE plug 16A, 5-pin, 400V with top cable entry (8–16 mm). Fitted with screw terminals and quick-lock system (turn2fix). Splash-proof according to IP44 and compliant with VDE 0623, EN 60309 and IEC 60309. Equipped with unplated contacts and a 6h position indicator.

Technical specifications

  • Rated current (400V) = 16A
  • Voltage = 400V
  • Poles number = 5
  • Cable entry = Screw swivel
  • IP protection rating = IP44
  • Material = Thermoplastic
  • Connection type = Screw clamp
  • Angle of plug = Straight
  • Earth pin position = 6h (IEC 60309)
  • Cable diameter = 8 - 16 mm
  • Voltage according to EN 60309-2 = 400V (50+60 Hz)

Dimensions and weights

  • Weight =0.0Kg
  • Product weight =0.163Kg
  • Length =0.0mm
  • Width =0.0mm
  • Height =0.0mm
  • Product Length =285.0mm
  • Product Width =185.0mm
  • Product Height =130.0mm
