High-quality cast steel housing
4-way base plate
Ideal for fast and precise serial work
Product Code: SAP1
EAN: 8720028043743
PRODUCT DESCRIPTION

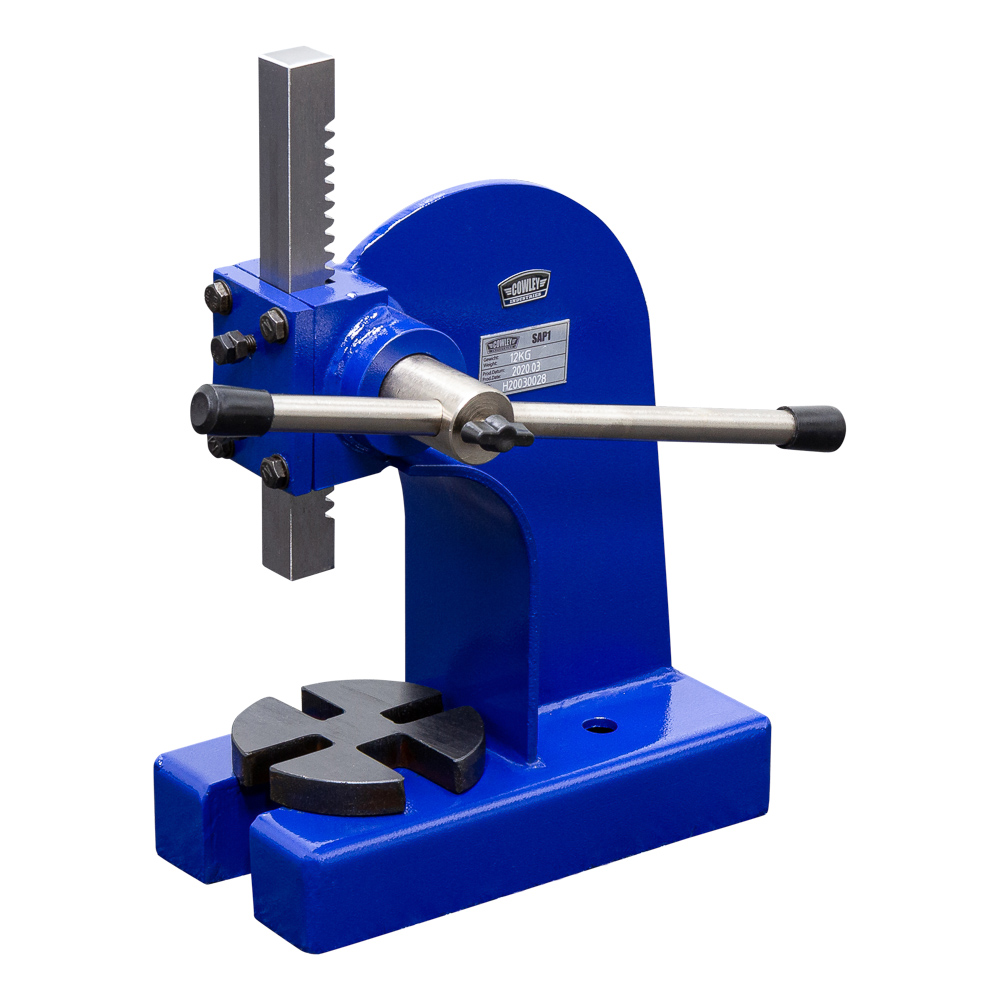

Rack and pinion press
This Cowley manual arbor press is suitable for pressing bearings and bushings and for bending, punching and forming workpieces. The base plate can be used in 4 different positions.
capacity = 1 ton
max. height workpiece = 110mm
throat depth = 100mm
dimensions square ram = 25 x 25mm
foot size = 268 x 190mm
Technical specifications
Dimensions and weights
- Weight =12.0Kg
- Product weight =10.0Kg
- Length =290.0mm
- Width =140.0mm
- Height =350.0mm
- Product Length =270.0mm
- Product Width =190.0mm
- Product Height =320.0mm
