Less load for the winch
Double power if needed
Product Code: SB10
EAN: 8720028073368
PRODUCT DESCRIPTION

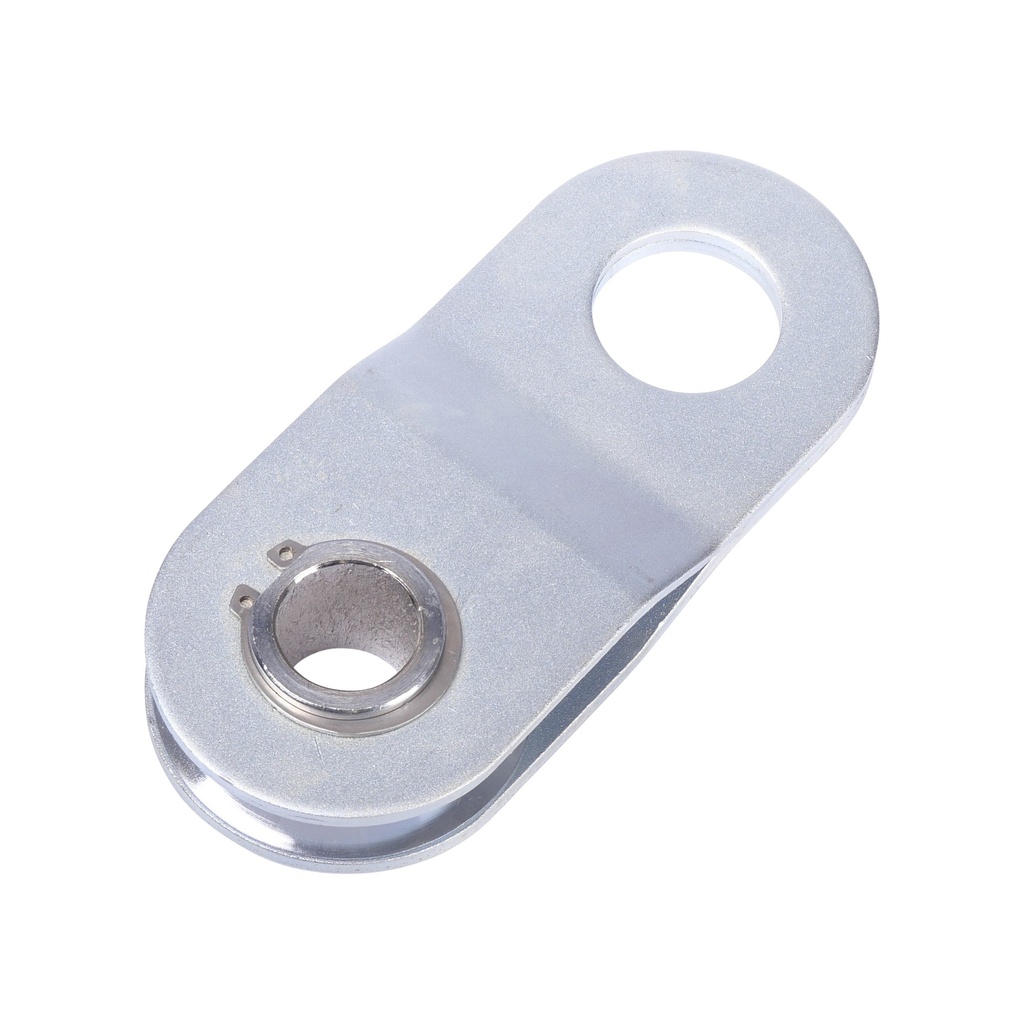

Snatch block
This Torso snatch block is suitable for doubling the cable of a winch. This makes it possible to realize twice as much force during winching.
Technical specifications:
capacity = 4500kg / 10000lbs
pulley external size = 98mm
pulley internal size = 71mm
cable diameter = 18mm
diameter hole = 50mm
diameter pulley hole = 35mm
Technical specifications
Dimensions and weights
- Weight =2.6Kg
- Product weight =2.53Kg
- Length =265.0mm
- Width =112.0mm
- Height =60.0mm
- Product Length =240.0mm
- Product Width =102.0mm
- Product Height =47.0mm
