Fully ground, for external thread
Suitable for unalloyed steel
High precision
Long lifetime
Product Code: SC237050
EAN: 8713974025178
PRODUCT DESCRIPTION

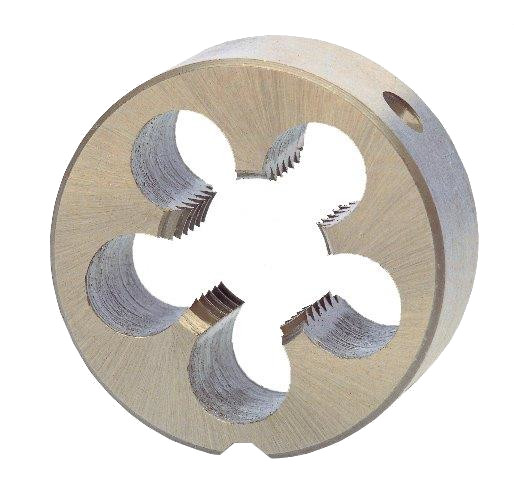

Round dies
HSS fully ground round dies are made from alloyed high speed steel. Full grinding during the production process results in a very sharp die with high precision. In combination with cutting oil this will result in a very long tool life. Very suitable for tapping external threads in unalloyed steels such as sheet steel, construction steel and cast iron.
Technical specificaties:
size = M5
pitch = 0,80mm
diameter = 20mm
thickness = 7mm
DIN EN 22568
material = HSS - G
right hand
fully ground
Technical specifications
Dimensions and weights
- Weight =0.03Kg
- Product weight =0.02Kg
- Length =90.0mm
- Width =45.0mm
- Height =18.0mm
- Product Length =20.0mm
- Product Width =20.0mm
- Product Height =7.0mm
