PRODUCT DESCRIPTION

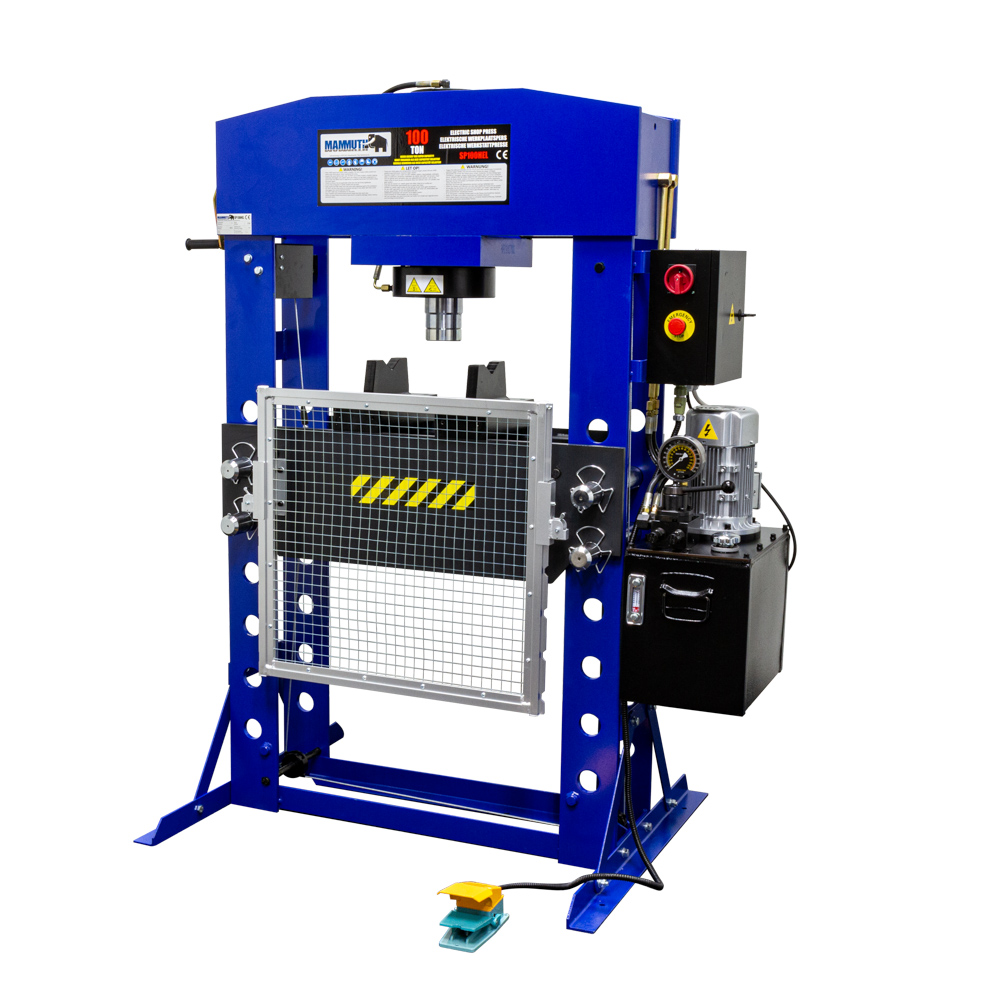

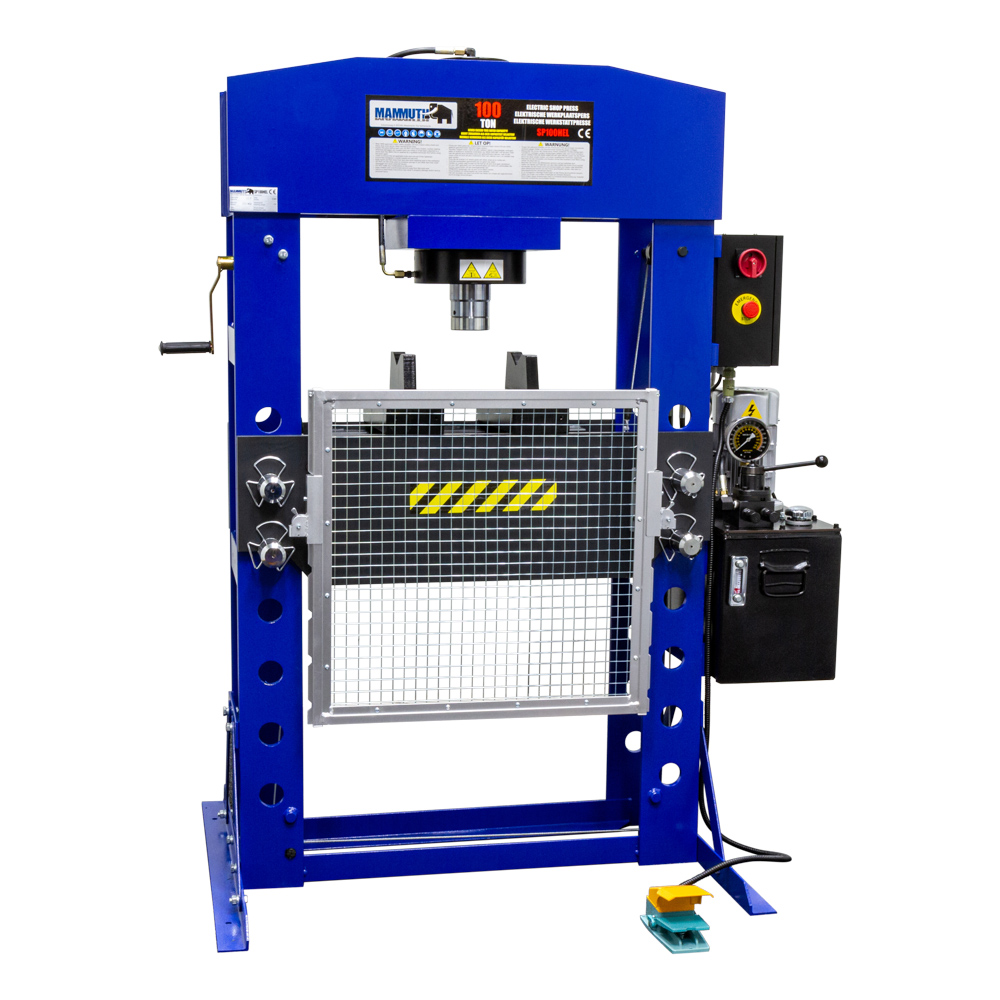

This Mammuth workshop press is a powerful and versatile machine. Thanks to the fully welded frame and electric hand or foot control, this press offers speed, power, and precision. This makes it a reliable choice for any workshop. Supplied with 2 pressing blocks.

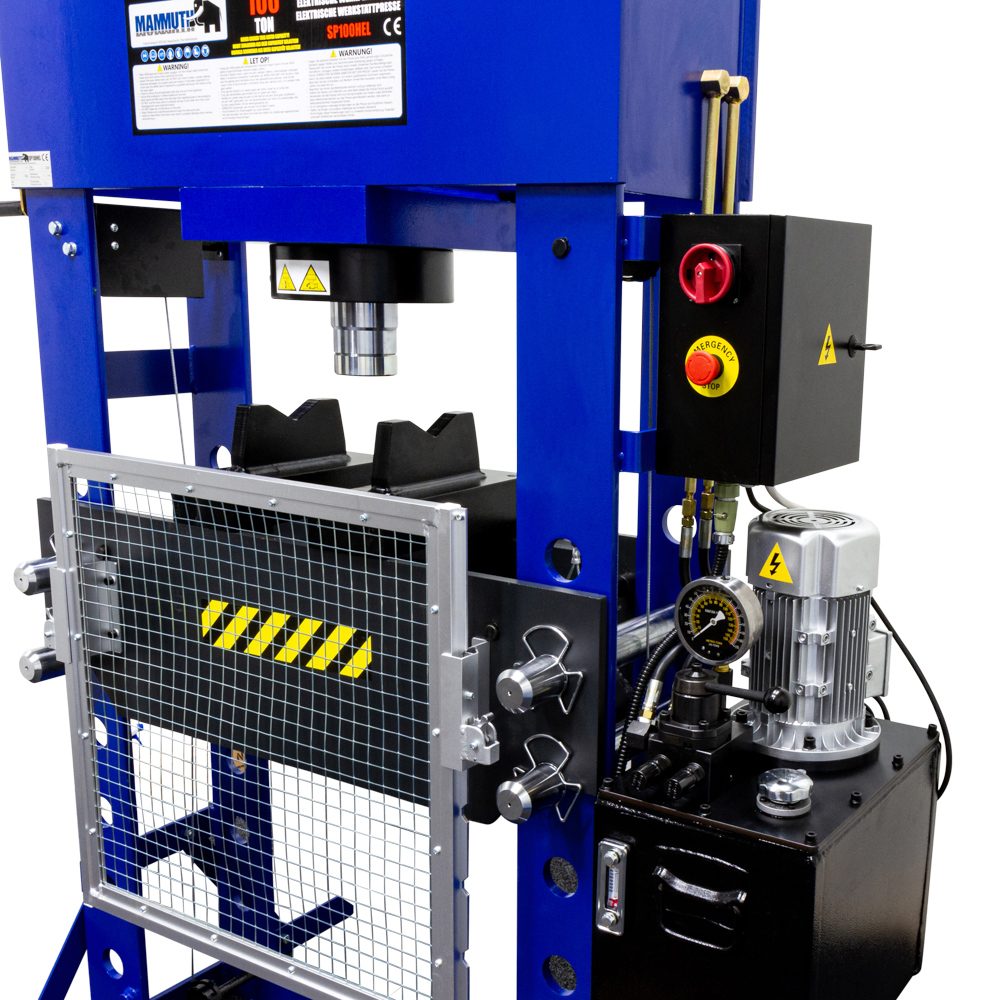

- Electric control: Effortless and fast operation.

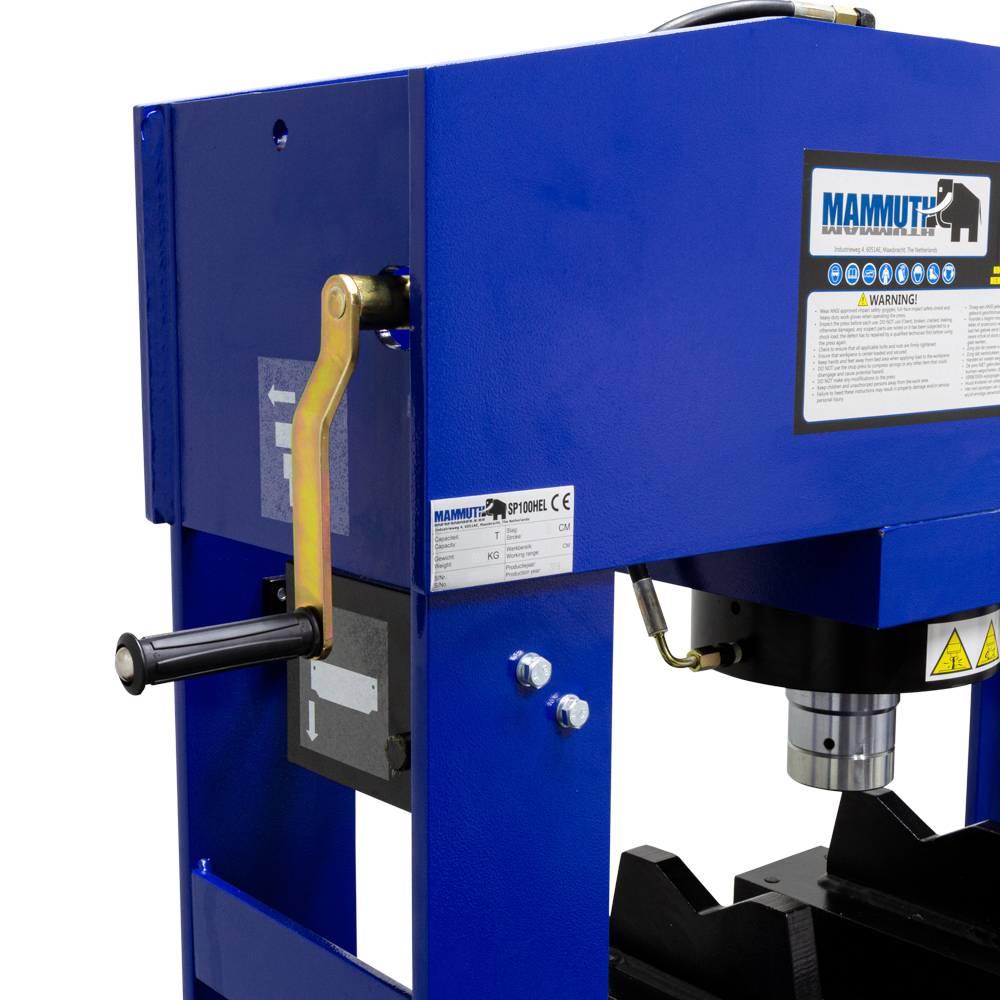

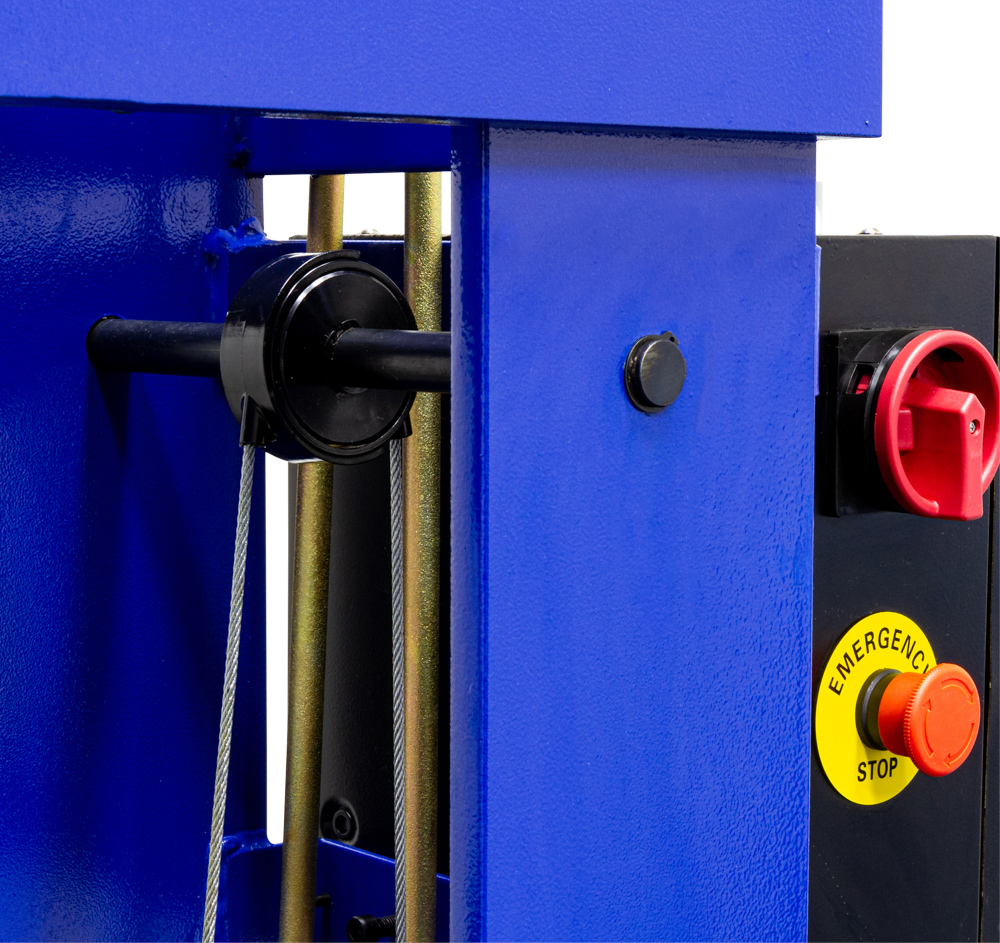

- Hand winch: Easily position the work table at 8 different heights and the cylinder is adjustable sideways.

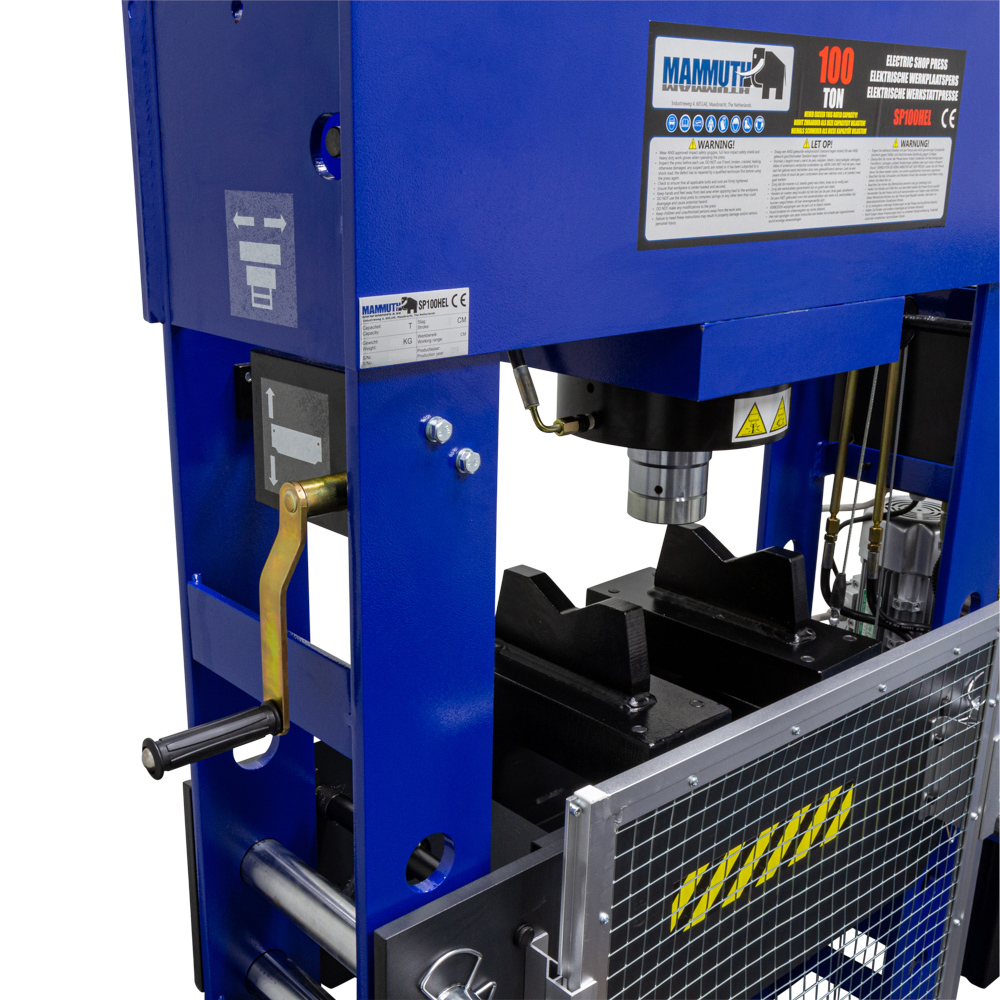

- Interchangeable pressing cap: Easily removable for using other attachments.
- Safety screen: Provides extra protection during use.
- Foot pedal: Keeps your hands free.
Note: The press is supplied without CH22 hydraulic oil (24 liters).
Technical specifications
- Capacity = 100 ton
- Workbed width = 800 mm
- Workbed depth = 310 mm
- Minimum working height = 113 mm
- Maximum working height = 813 mm
- Cylinder stroke = 250 mm

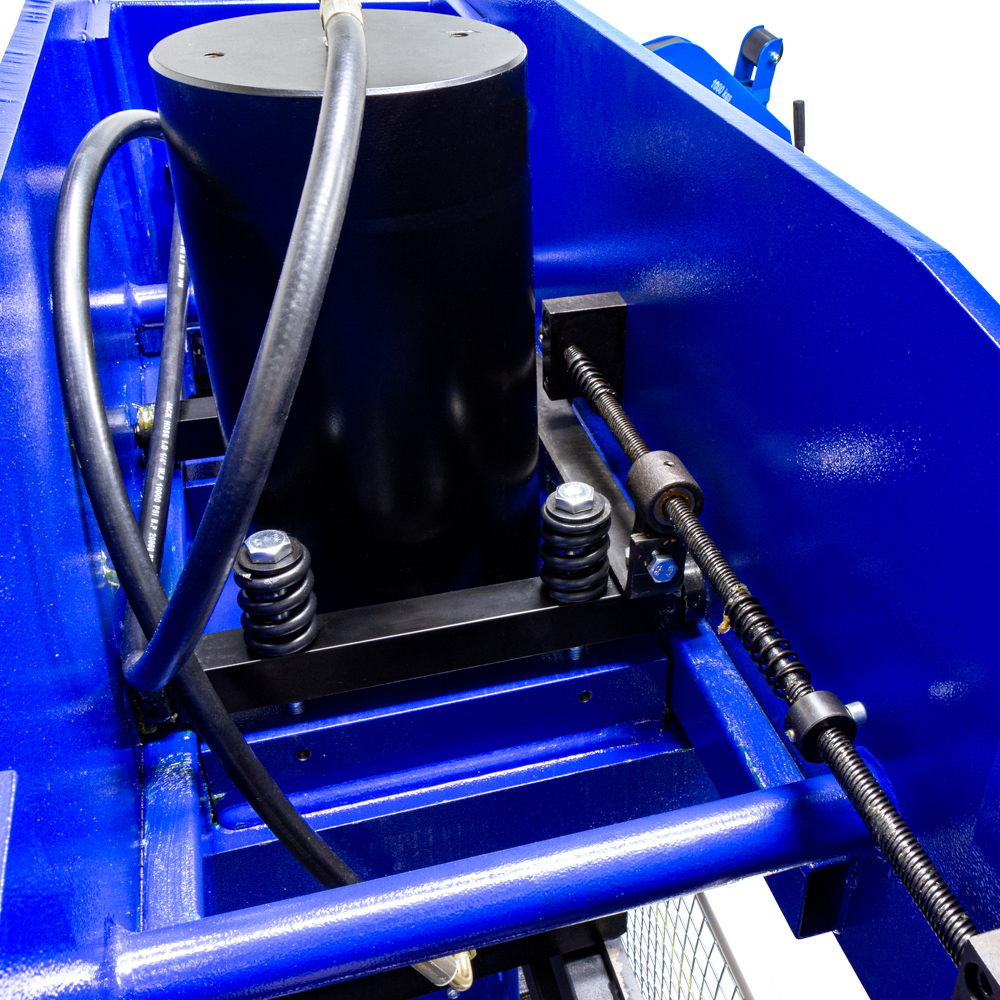

- Cylinder diameter = ø90 mm
- Voltage = 400V
- Power = 1.5 kw
- Motor speed = 1400 rpm
- Pressing speed (outward) = 2.3 mm/sec
- Pressing speed (inward) = 3.8 mm/sec
- Oil capacity = 24 L
- Oil type = OCH22
Dimensions and weights
- Weight =823.0Kg
- Product weight =755.0Kg
- Length =1000.0mm
- Width =2110.0mm
- Height =1220.0mm
- Product Length =1140.0mm
- Product Width =800.0mm
- Product Height =1860.0mm
