- Two-stage pump
- Hand winch work table
- Side-adjustable cylinder with scale
- Interchangeable pressing adapter
- Pneumatic foot pedal
Product Code: SP100XHAM
EAN: 8720028097777
PRODUCT DESCRIPTION

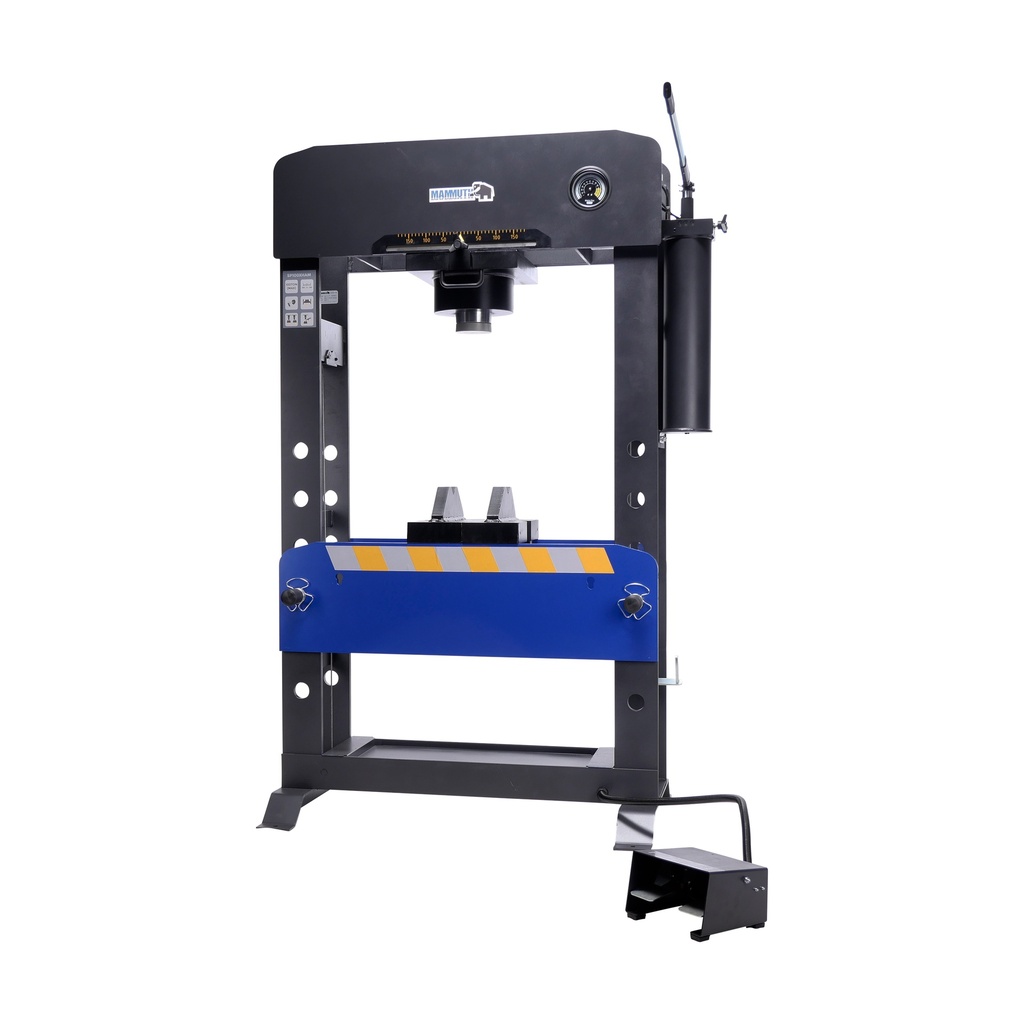

This Mammuth workshop press is a powerful and versatile machine. Thanks to the fully welded frame with an integrated pressure gauge and smooth operation, this press offers power and precision. This makes it a reliable choice for any workshop.
- Two-stage pump: Fast at first, then precise pressing.
- Hand winch work table: Easily adjustable to 6 heights using the winch.
- Side-adjustable cylinder with scale: For precise positioning.
- Interchangeable pressing adapter: Easy to remove for using other attachments.
- Pneumatic foot pedal: Effortless operation, keeping your hands free.
Technical specifications
- Capacity = 100 ton
- Workbed width = 850 mm
- Workbed depth = 280 mm
- Minimum working height = 185 mm
- Maximum working height = 700 mm
- Cylinder stroke = 300 mm
- Cylinder diameter = ø106 mm
- Working air pressure = 8 - 12 bar
- Air connection = 1/4 NPT
- Oil capacity = 2.5 L
- Oil type = OKCH68
Dimensions and weights
- Weight =700.0Kg
- Product weight =650.0Kg
- Length =1950.0mm
- Width =1300.0mm
- Height =400.0mm
- Product Length =1255.0mm
- Product Width =750.0mm
- Product Height =1938.0mm
