PRODUCT DESCRIPTION

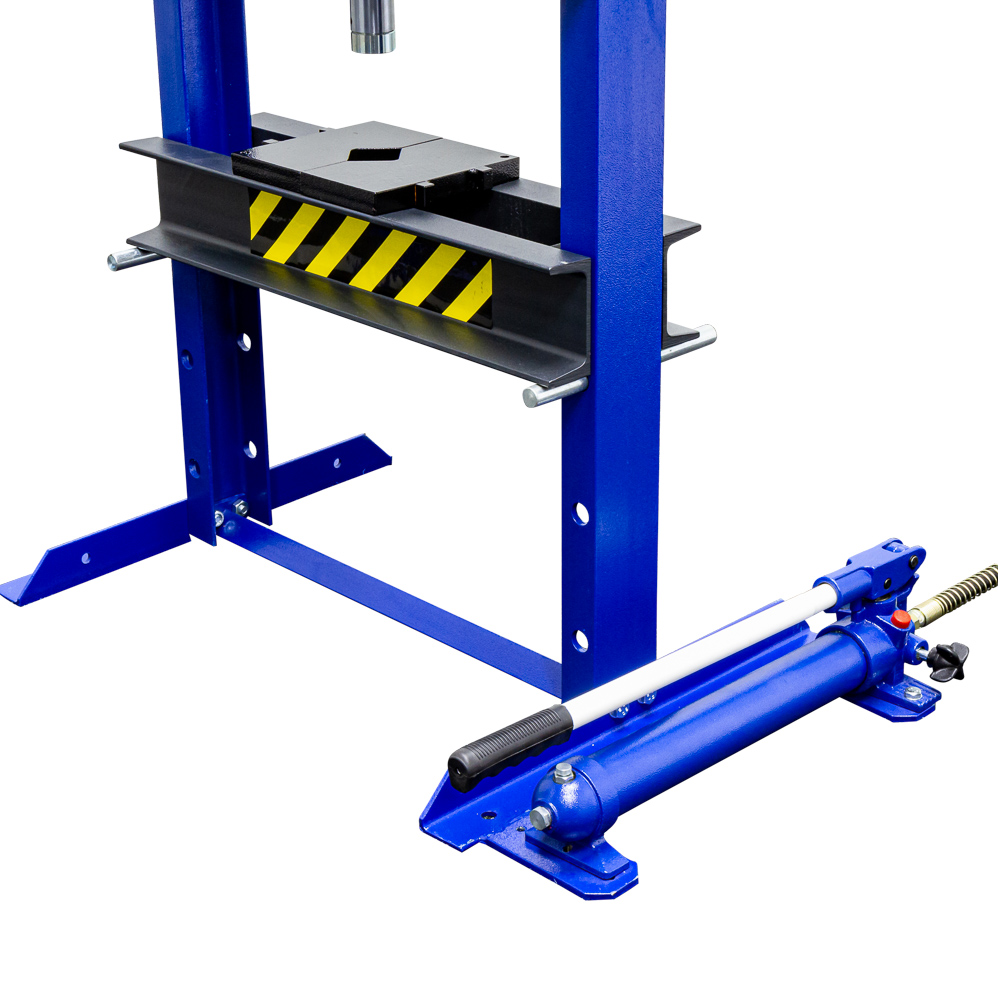

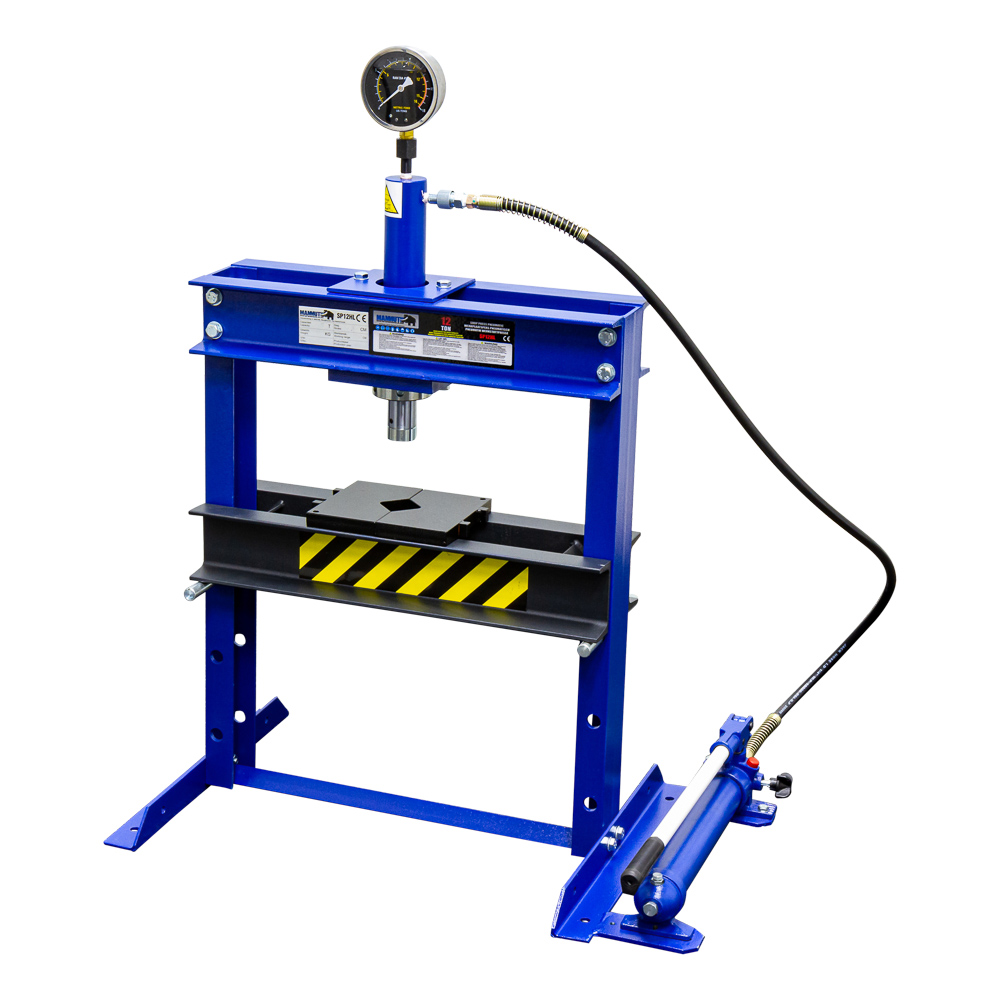

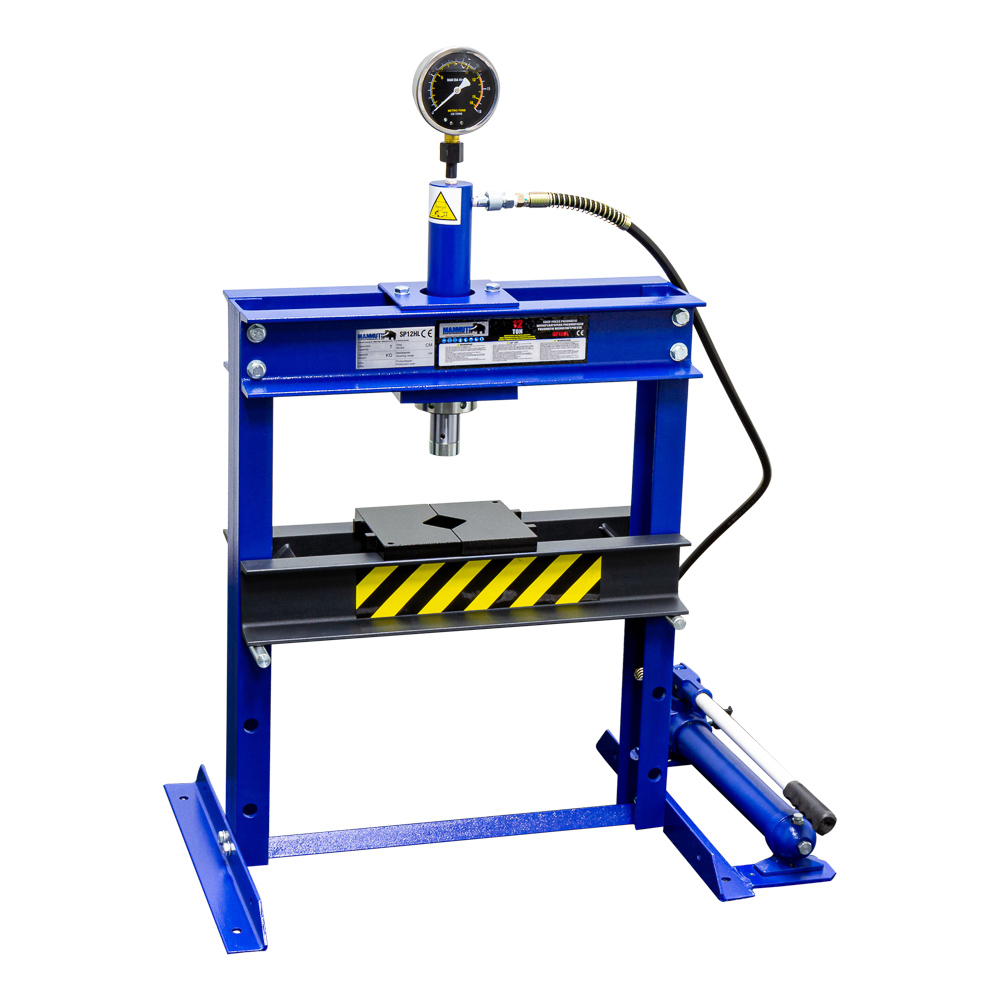

This Mammuth bearing press is ideal for installing bearings, pressing shafts and bolts, and other precise pressing tasks. Thanks to its sturdy construction and smooth operation, this press is a reliable choice for any workshop.
- Compact design: Takes up little space.
- Adjustable workbed: Easily locked at 3 different heights.
- Interchangeable receiver cap: Easily removed for the use of other attachments.
- Includes pressing blocks: Comes with 2 pressing blocks.
Technical specifications
- Capacity = 12 ton
- Workbed width = 505 mm
- Workbed depth = 84 mm
- Minimum working height = 110 mm
- Maximum working height = 364 mm
- Cylinder stroke = 175 mm
- Cylinder diameter = ø39 mm
- Oil capacity = 0.55 L
- Oil type = OKCH68
Dimensions and weights
- Weight =59.5Kg
- Product weight =57.5Kg
- Length =780.0mm
- Width =410.0mm
- Height =160.0mm
- Product Length =500.0mm
- Product Width =790.0mm
- Product Height =1060.0mm
