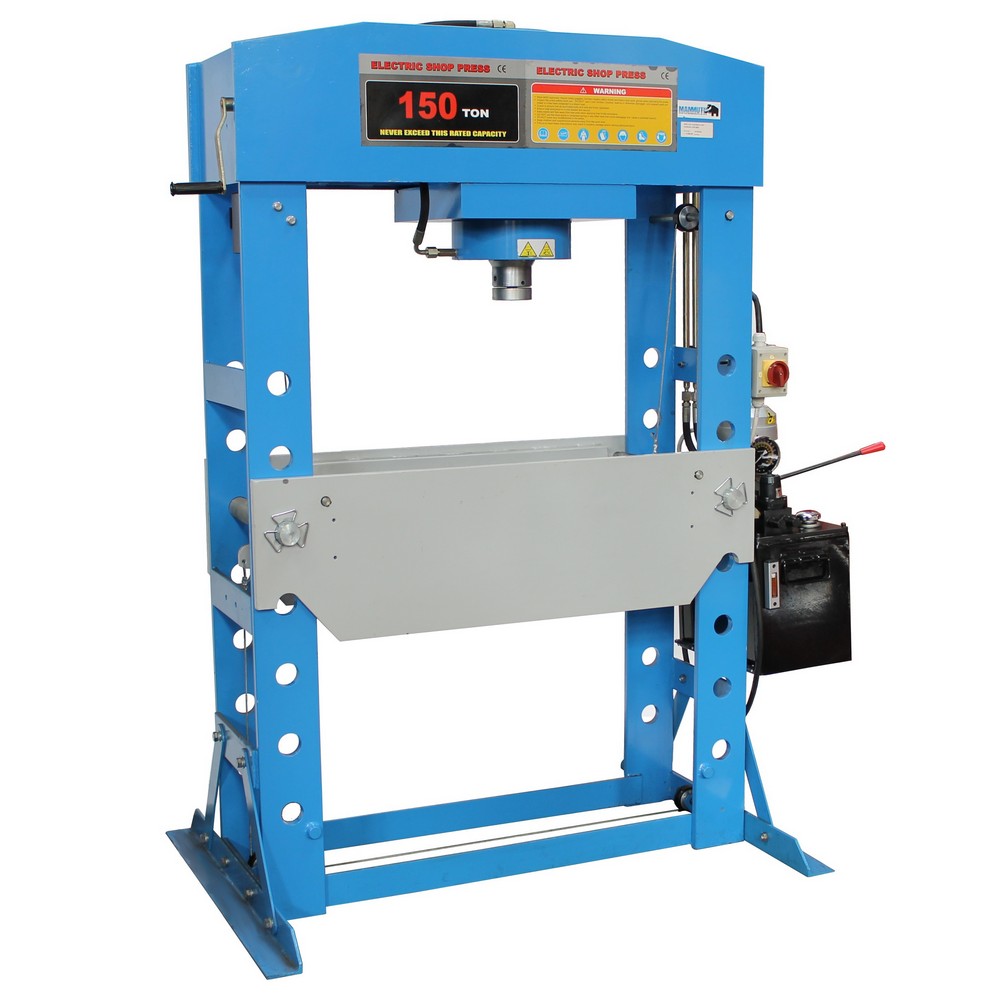

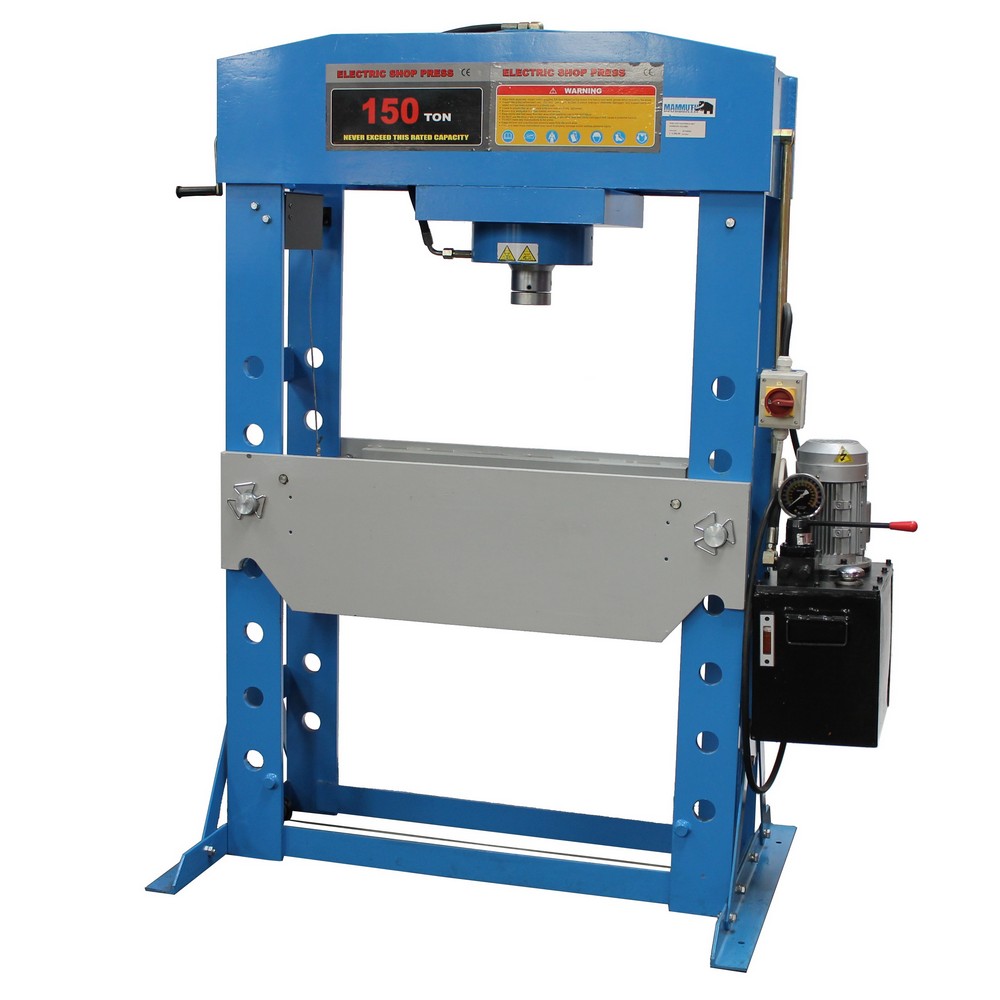

PRODUCT DESCRIPTION
This Mammuth workshop press is a powerful and versatile machine. Thanks to the fully welded frame and electric hand or foot control, this press offers speed, power, and precision. This makes it a reliable choice for any workshop.

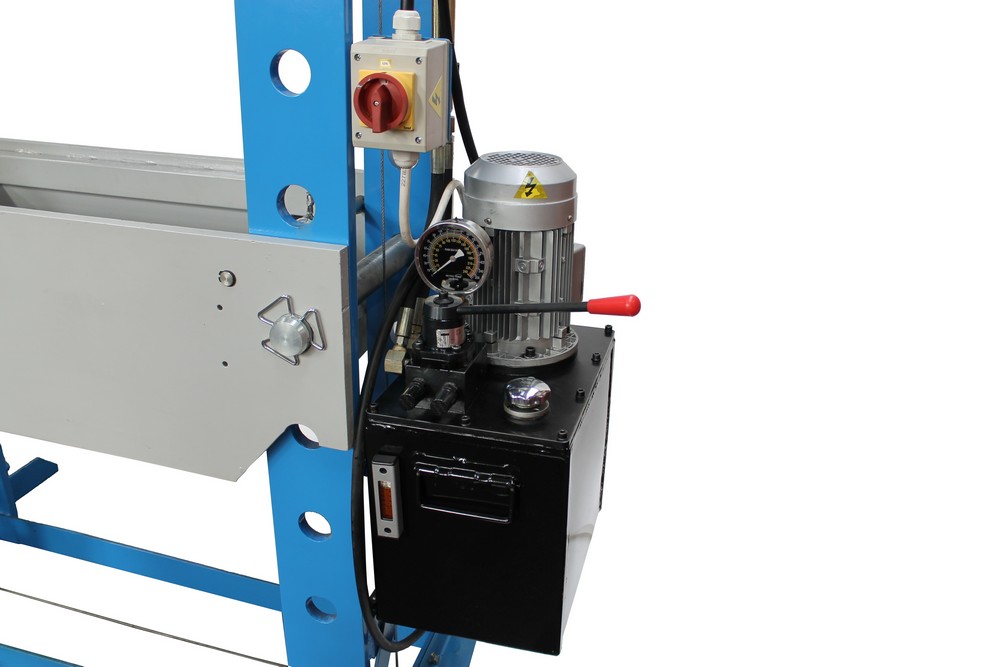

- Electric control: Effortless and fast operation.

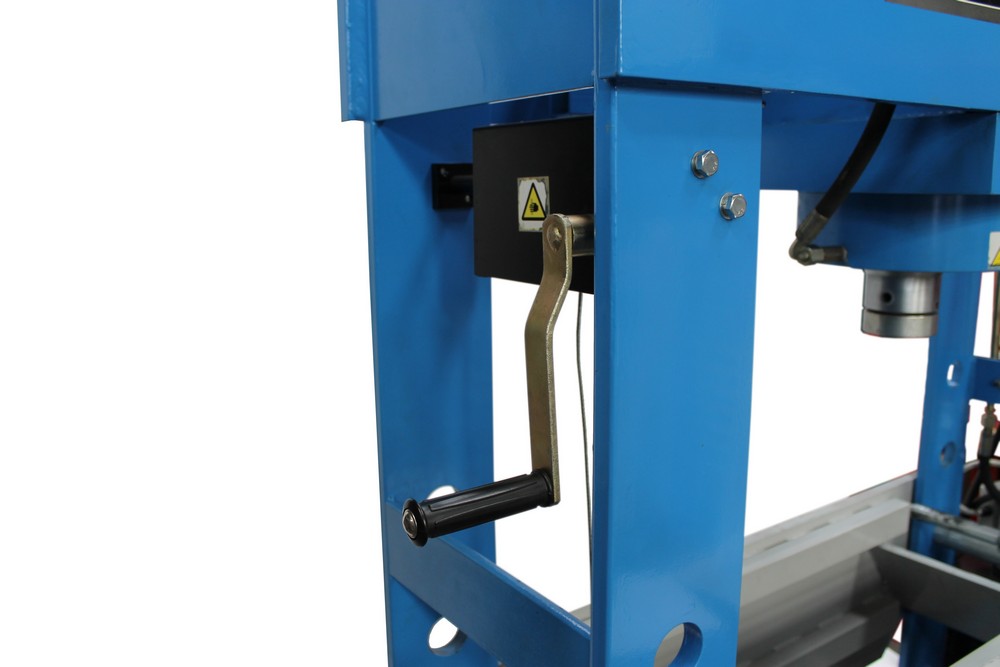

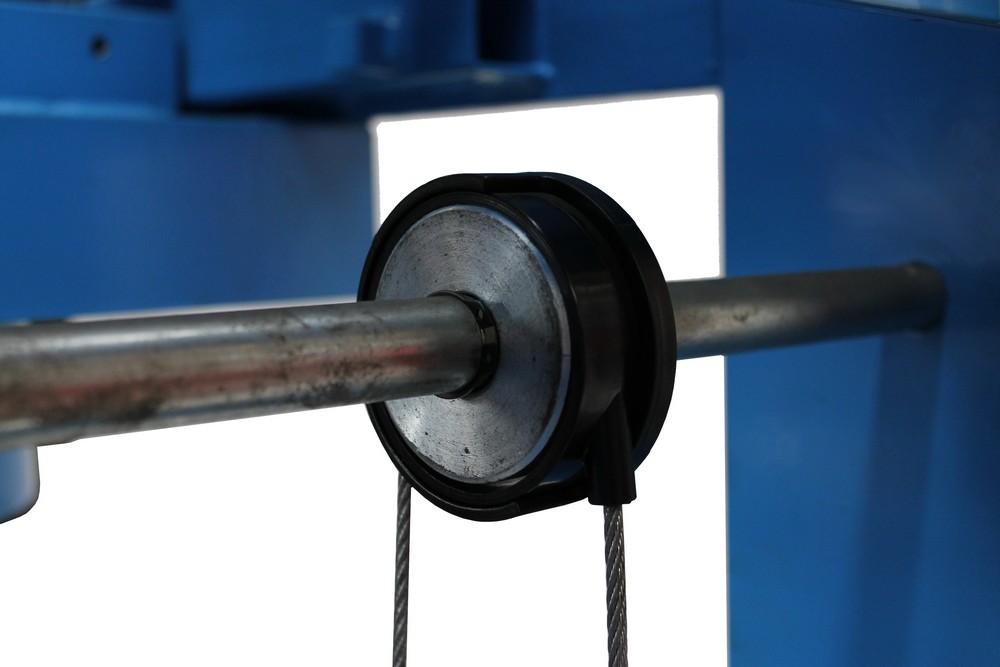

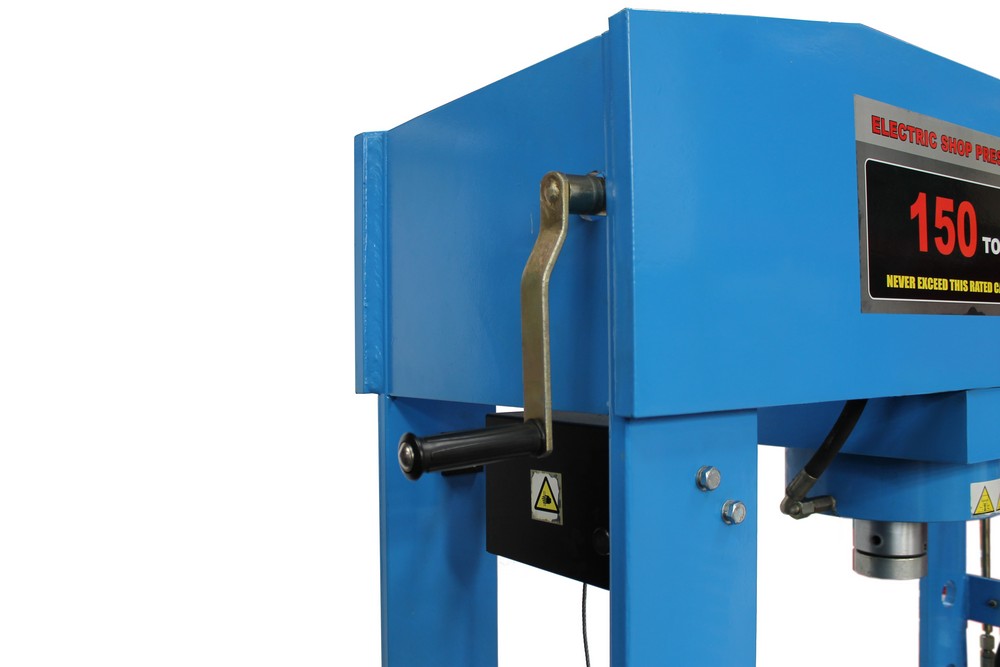

- Hand winch: Easily adjust the work table to 7 different heights and the cylinder is adjustable sideways.
- Interchangeable pressing cap: Easily removable for using other attachments.
- Safety screen: For extra protection during use.
- Foot pedal: Keeps your hands free.
Note: the press is supplied without CH22 hydraulic oil (29 litres) and pressing blocks.
Technical specifications
- Capacity = 150 ton
- Workbed width = 1000 mm
- Workbed depth = 414 mm
- Minimum working height = 64 mm
- Maximum working height = 889 mm
- Cylinder stroke = 350 mm
- Cylinder diameter = ø98 mm
- Voltage = 400V
- Power = 1.5 kw
- Motor speed = 1400 rpm
- Pressing speed (outward) = 2.3 mm/sec
- Pressing speed (inward) = 3.8 mm/sec
- Oil capacity = 29 L
- Oil type = OCH22
Dimensions and weights
- Weight =1287.0Kg
- Product weight =1200.0Kg
- Length =2550.0mm
- Width =1370.0mm
- Height =850.0mm
- Product Length =1453.0mm
- Product Width =1195.0mm
- Product Height =2100.0mm
