PRODUCT DESCRIPTION

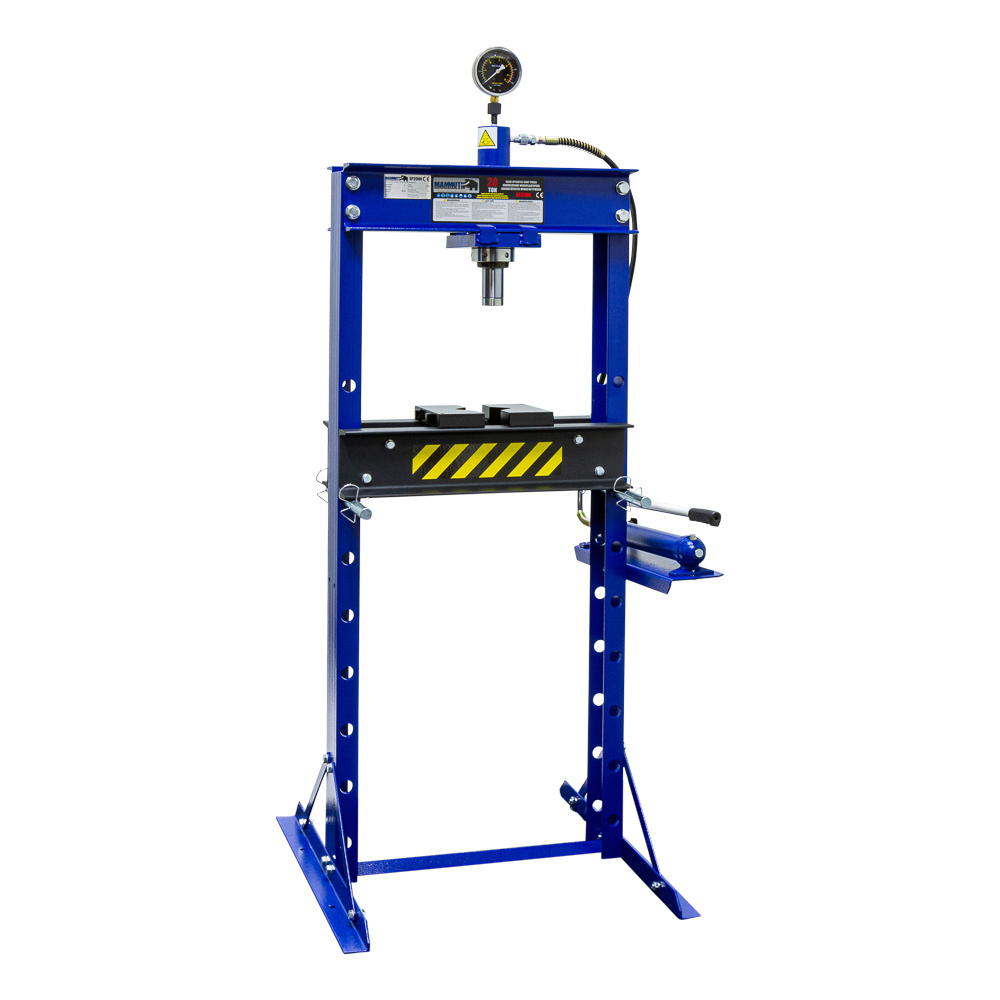

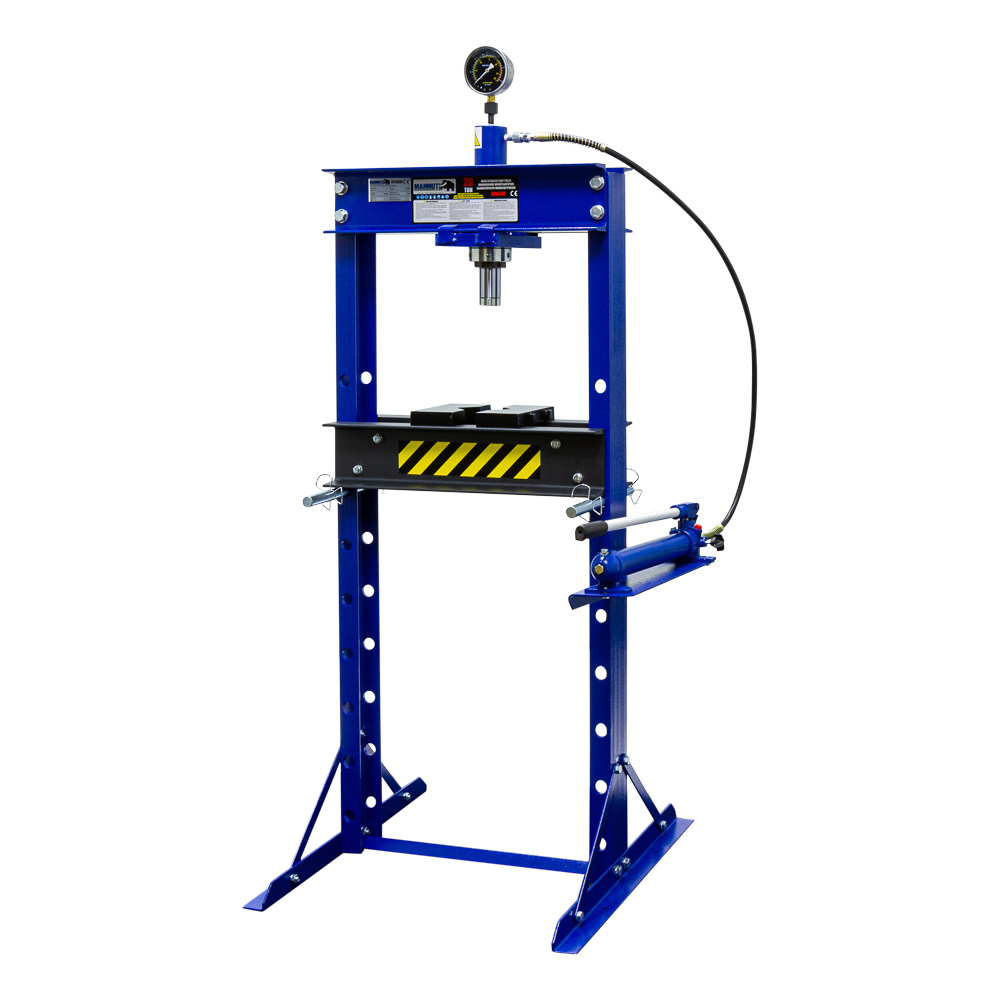

This Mammuth bearing press is ideal for installing bearings, pressing shafts and bolts, and other precise pressing tasks. Thanks to its sturdy construction and smooth operation, this press is a reliable choice for any workshop.

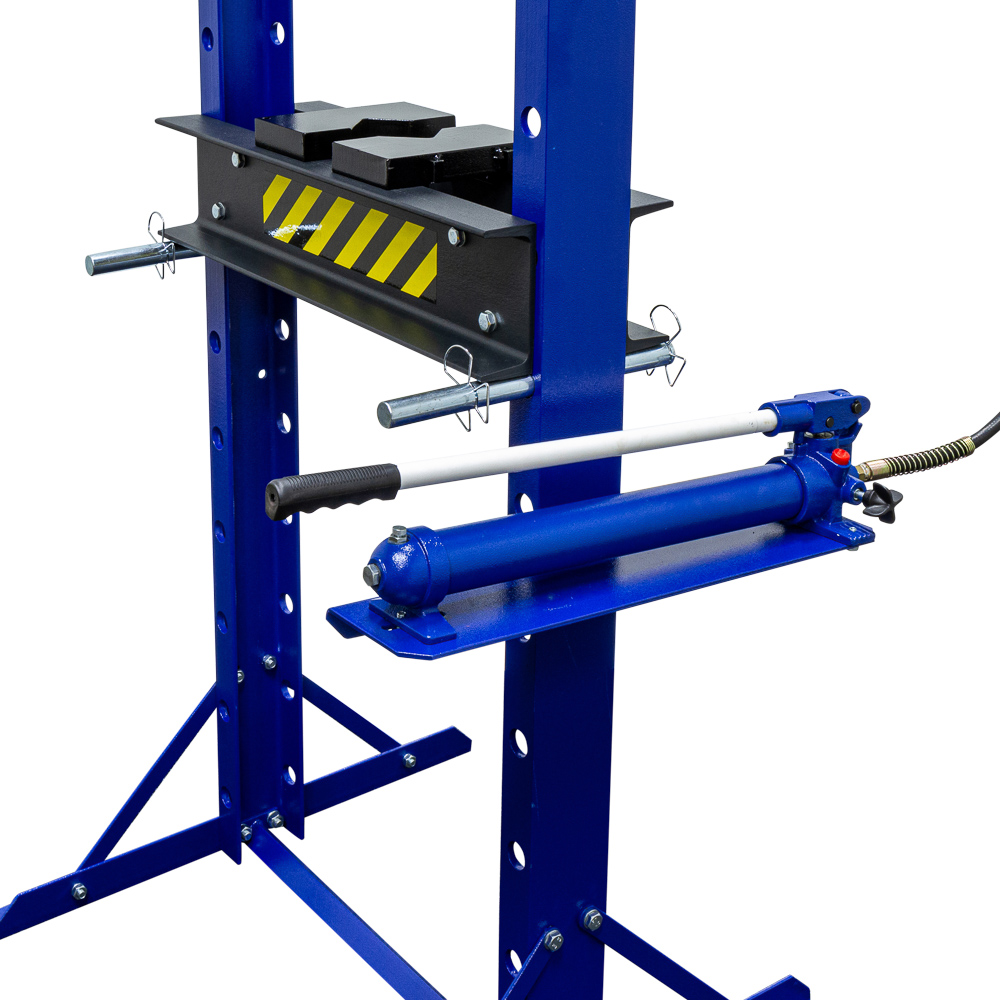

- Adjustable workbed: Easily secured at 9 different heights.
- Interchangeable press adapter: Easily removable for using other attachments.
- Side-adjustable cylinder: For precise positioning.
- Includes press blocks: Comes with 2 press blocks.
Technical specifications
- Capacity = 20 ton
- Workbed width = 542 mm
- Workbed depth = 105 mm
- Minimum working height = 25 mm
- Maximum working height = 985 mm
- Cylinder stroke = 185 mm
- Cylinder diameter = ø48 mm
- Oil capacity = 0.7 L
- Oil type = OKCH68
Dimensions and weights
- Weight =114.0Kg
- Product weight =92.0Kg
- Length =1535.0mm
- Width =270.0mm
- Height =335.0mm
- Product Length =738.0mm
- Product Width =700.0mm
- Product Height =1787.0mm
