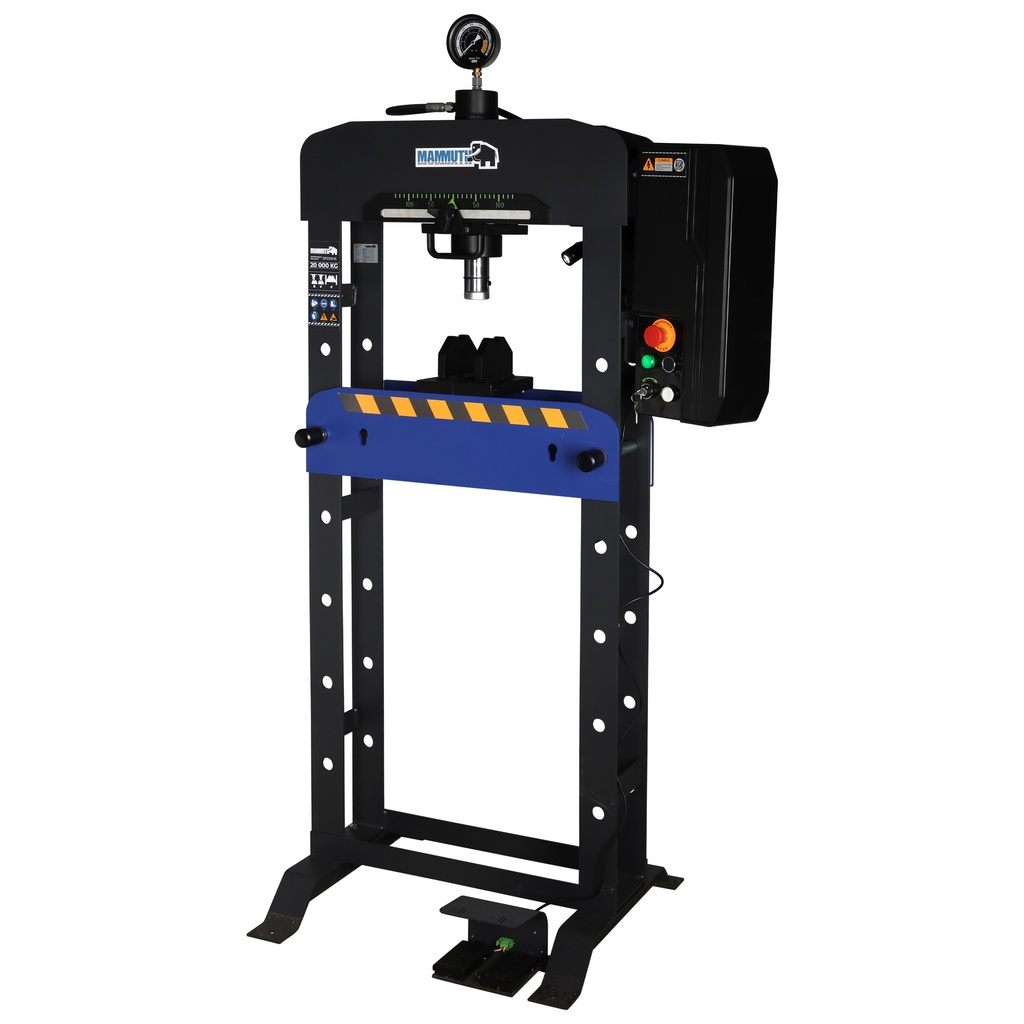

[SP20XHE] Mammuth 20 ton electric workshop press X-Series

€ 0.00 € 825.00

  • Press capacity
  • Suitable for professional use
  • Control type
  • Power supply
  • Motor power
  • Motor speed
  • Cylinder stroke (stroke length)
  • Cylinder diameter
  • Sideways adjustable cylinder
  • Scale marking
  • Pressure gauge
  • Pressing speed (outward)
  • Pressing speed (inward)
  • Adjustable workbed
  • Workbed width
  • Workbed depth
  • Minimum working height (between worktable and cylinder)
  • Maximum working height (between worktable and cylinder)
  • Material frame
  • LED work light
  • Includes press blocks
  • Oil-filled
  • Oil capacity
  • Oil type
  • Electric control and foot pedal
  • Work table height-adjustable
  • Side-adjustable cylinder with scale
  • Interchangeable press head
  • LED lighting

Shop equipment / Shop presses / Electric hydraulic shop presses

Product Code: SP20XHE

EAN: 8720028141265

PRODUCT DESCRIPTION

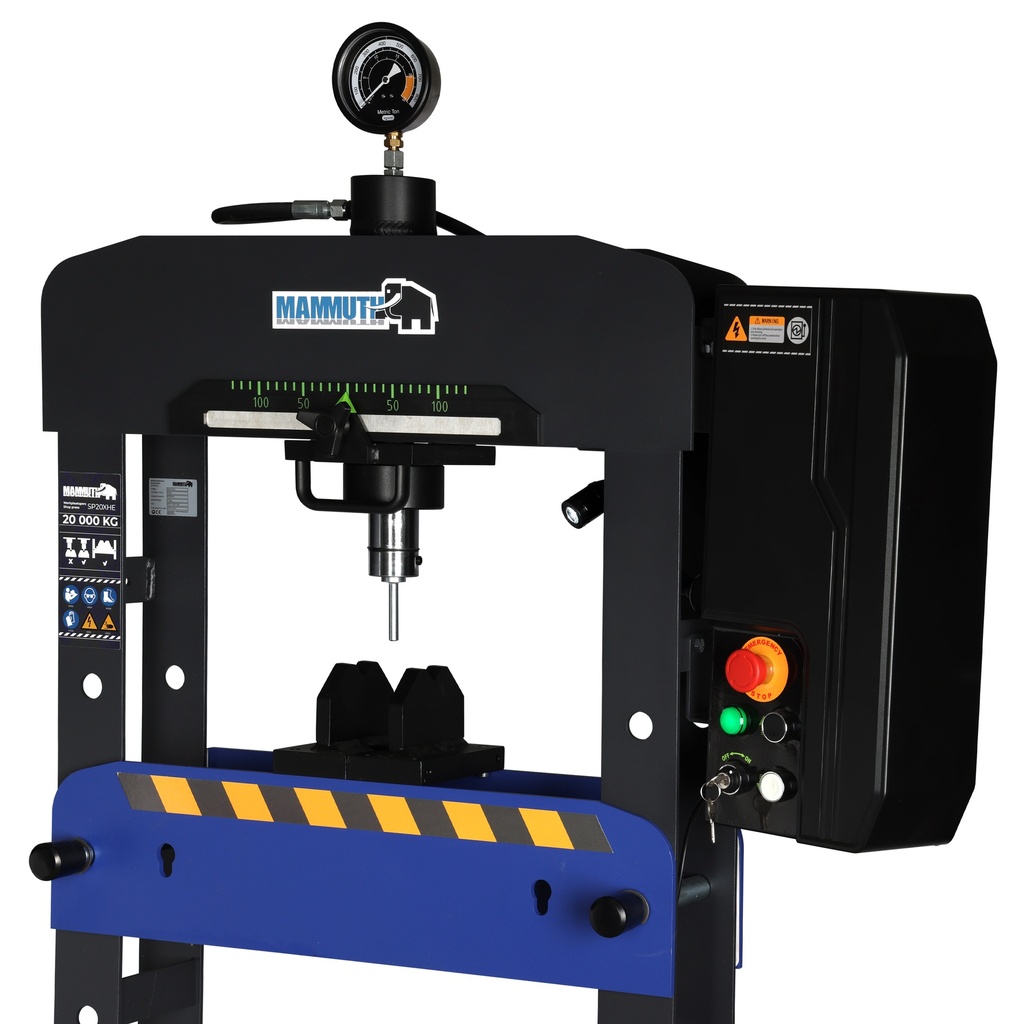

This Mammuth 20 ton hydraulic workshop press is a powerful, reliable and user friendly solution for the professional workshop.

Ideal for pressing bearings, shafts, bushings and other components where both force and precision are essential. The fully welded steel frame ensures stability under load, while the electric control system enables smooth and controlled operation.

With a height-adjustable work table and a side-shifting ram equipped with a clear scale, the press can easily be adapted to different workpieces. Its combination of accuracy and ease of use makes it suitable for daily intensive use.

The electric press comes complete with 2 solid pressing blocks.

Key features:

  • Electric control and foot pedal

For fast, effortless, and ergonomic operation.

  • Height-adjustable workbed

Easily adjustable to 6 different heights.

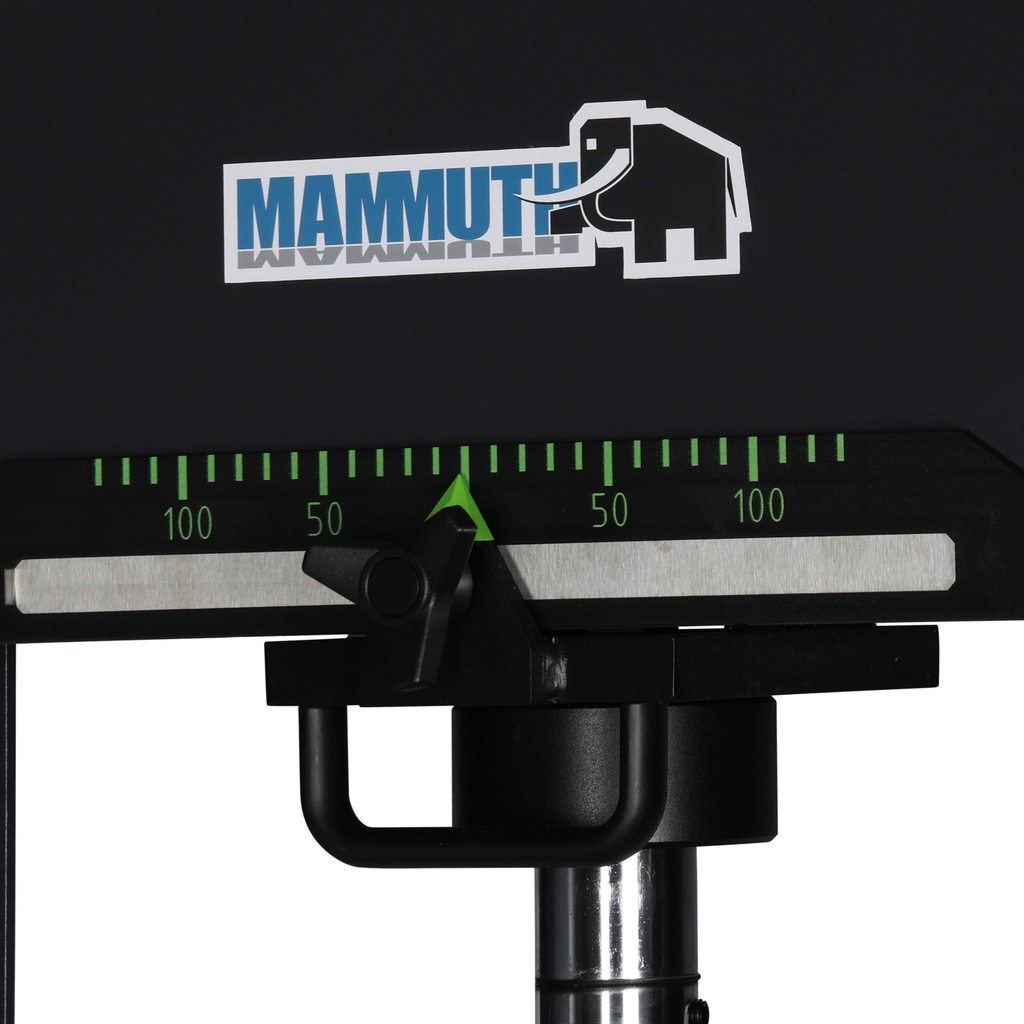

  • Side-adjustable cylinder with scale

For precise positioning of the press head and easy cylinder adjustment.

  • Interchangeable press head

Makes it easy to switch between different attachments.

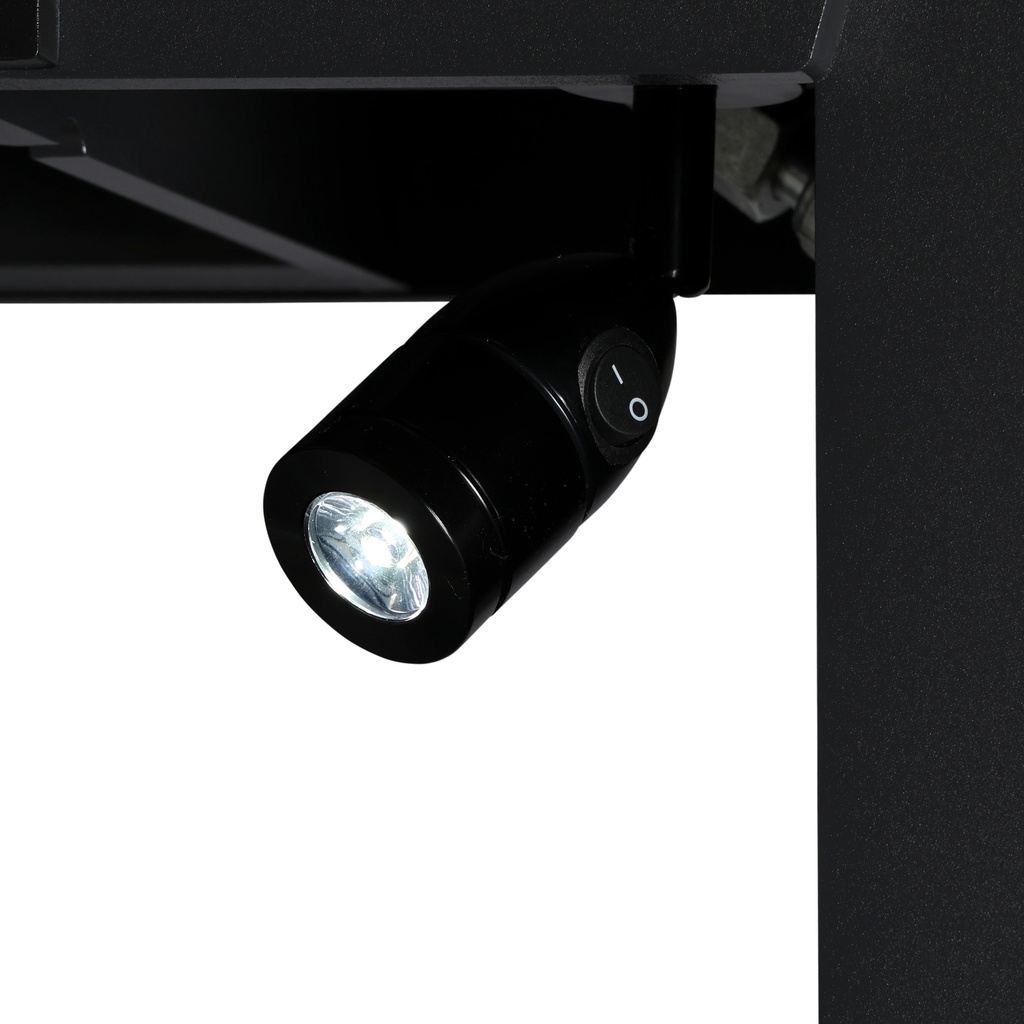

  • LED lighting

For optimal visibility of the workpiece.

This 20 ton hydraulic press is an excellent choice for professionals looking for a dependable and versatile bearing press for workshop or garage use.

Technical specifications

  • Press capacity = 20 ton
  • Suitable for professional use = Yes
  • Control type = Electric with foot pedal
  • Power supply = 230V
  • Motor power = 500 W
  • Motor speed = 6000 rpm
  • Cylinder stroke (stroke length) = 180 mm
  • Cylinder diameter = ø50 mm
  • Sideways adjustable cylinder = Yes
  • Scale marking = Yes
  • Pressure gauge = Yes
  • Pressing speed (outward) = 1.39 cm/sec
  • Pressing speed (inward) = 1.64 cm/sec
  • Adjustable workbed = Yes
  • Workbed width = 540 mm
  • Workbed depth = 134 mm
  • Minimum working height (between worktable and cylinder) = 48 mm
  • Maximum working height (between worktable and cylinder) = 910 mm
  • Material frame = Steel, fully welded
  • LED work light = Yes
  • Includes press blocks = Yes, 2 pieces
  • Oil-filled = Yes
  • Oil capacity = 1.7 L
  • Oil type = OCH22

Dimensions and weights

  • Weight =141.0Kg
  • Product weight =116.0Kg
  • Length =1560.0mm
  • Width =742.0mm
  • Height =296.0mm
  • Product Length =990.0mm
  • Product Width =540.0mm
  • Product Height =1830.0mm
