- Two-stage pump
- Adjustable workbed
- Side-adjustable cylinder with scale
- Interchangeable press adapter
-
Includes press blocks
Product Code: SP20XHM
EAN: 8720028097821
PRODUCT DESCRIPTION

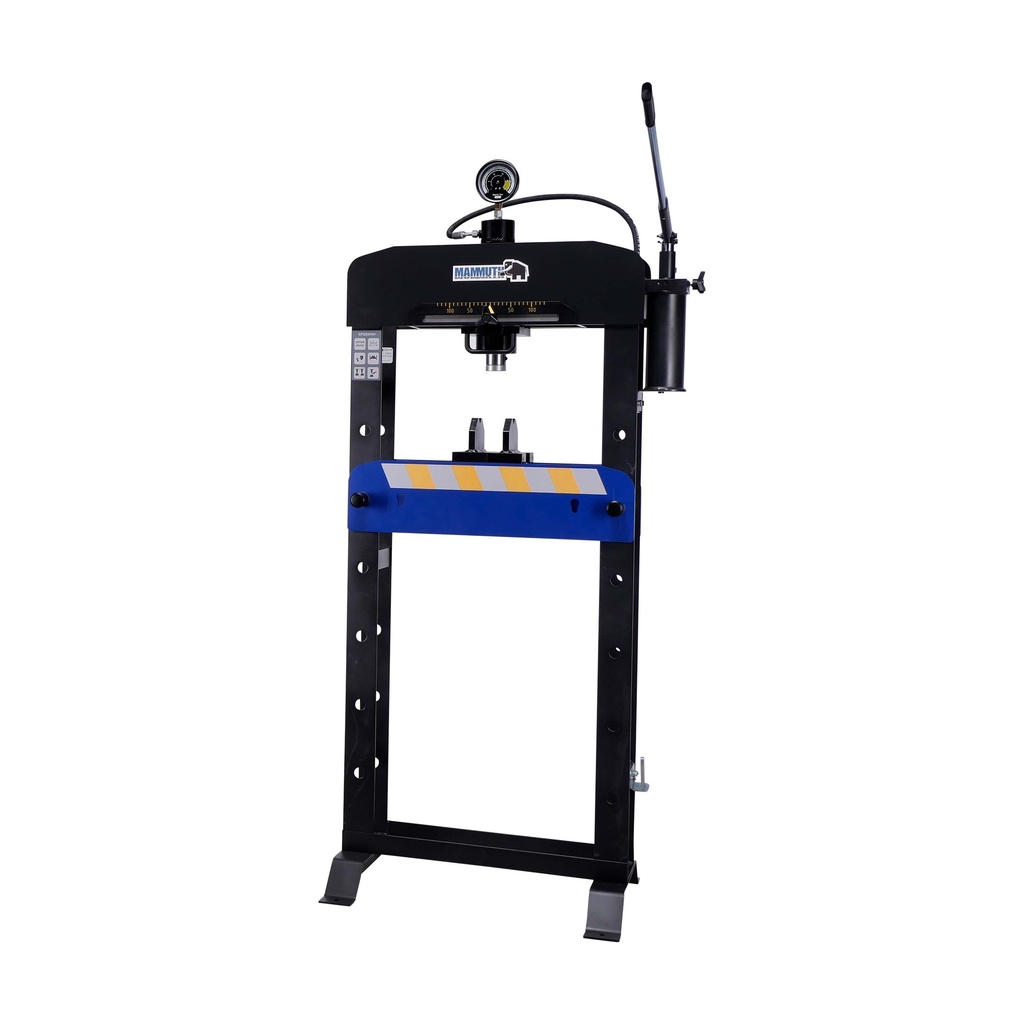

This Mammuth bearing press is ideal for installing bearings, pressing shafts and bolts, and other precise pressing tasks. Thanks to the fully welded frame and smooth operation, this press is a reliable choice for any workshop.
- Two-stage pump: First fast, then precise pressing.
- Adjustable workbed: Easily secured at 6 different heights.
- Side-adjustable cylinder with scale: For precise positioning.
- Interchangeable press adapter: Easily removable for using other attachments.
- Includes press blocks: Comes with 2 press blocks.
Technical specifications
- Capacity = 20 ton
- Workbed width = 540 mm
- Workbed depth = 134 mm
- Minimum working height = 48 mm
- Maximum working height = 958 mm
- Cylinder stroke = 180 mm
- Cylinder diameter = ø50 mm
- Oil capacity = 0.9 L
- Oil type = OKCH68
Dimensions and weights
- Weight =100.0Kg
- Product weight =98.4Kg
- Length =1570.0mm
- Width =770.0mm
- Height =300.0mm
- Product Length =850.0mm
- Product Width =540.0mm
- Product Height =1830.0mm
