PRODUCT DESCRIPTION
This Mammuth bearing press is ideal for installing bearings, pressing shafts and bolts, and other precise pressing tasks. Thanks to the fully welded frame with an integrated pressure gauge and smooth operation, this press is a reliable choice for any workshop. The press is supplied with 2 press blocks.
- Two-stage pump: First fast, then precise pressing.
- Hand winch workbed: Easily adjustable with the winch at 6 different heights.

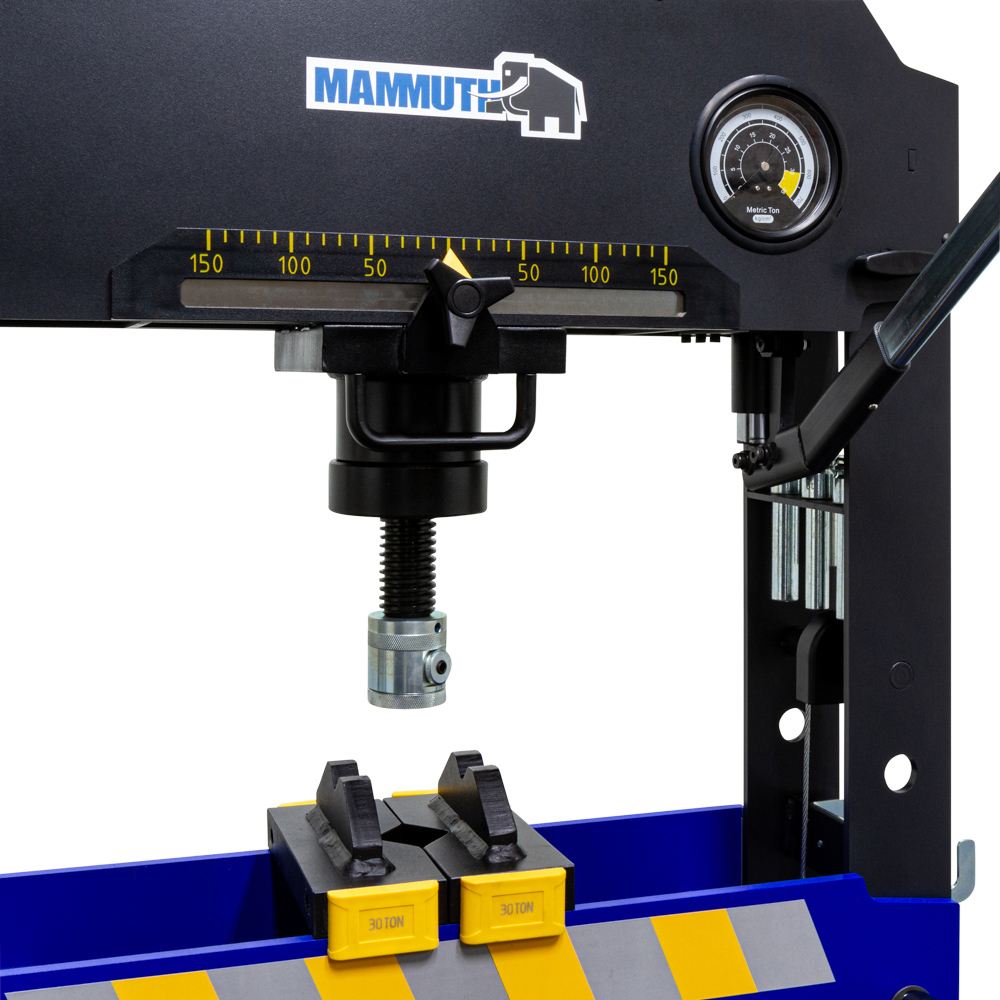

- Adjustable cylinder with scale: Side adjustable and extendable via the screw spindle for precise positioning.
-

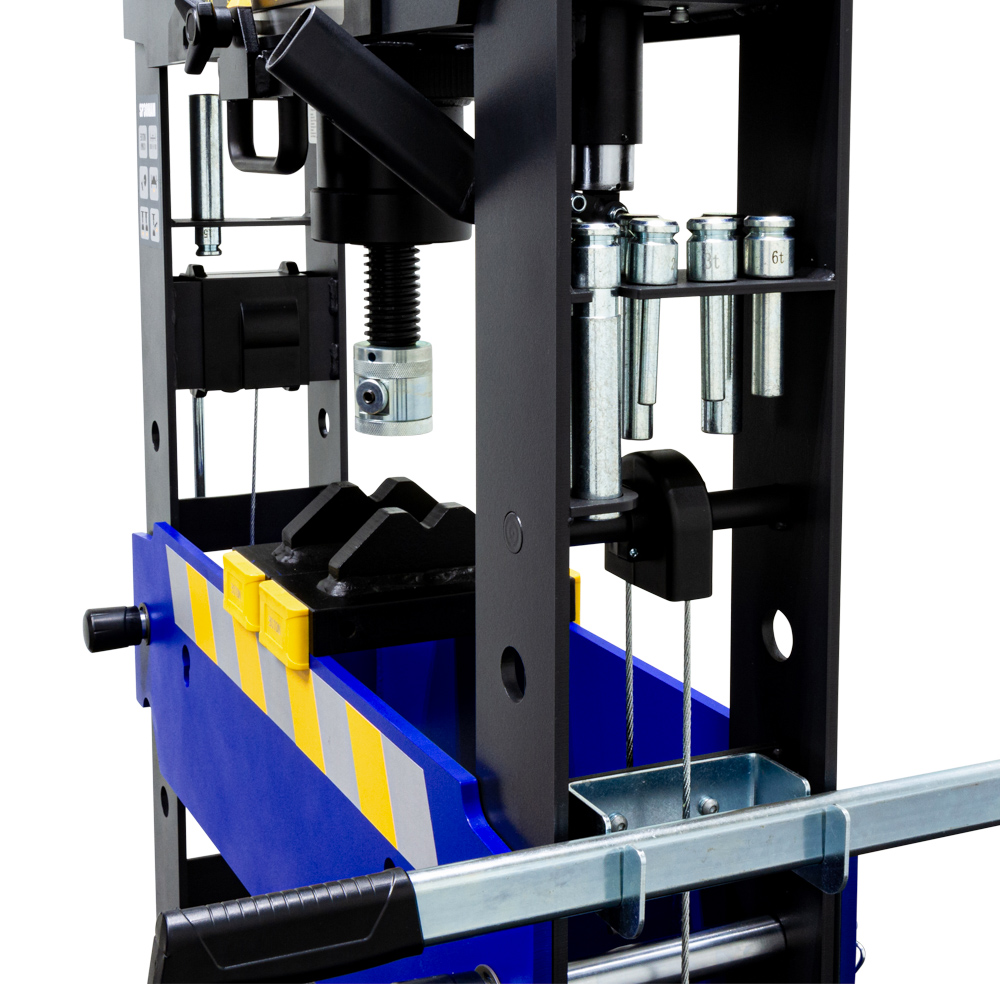

Quick-change press head including 8 pressing pins: Easy to clip on and secure.
-

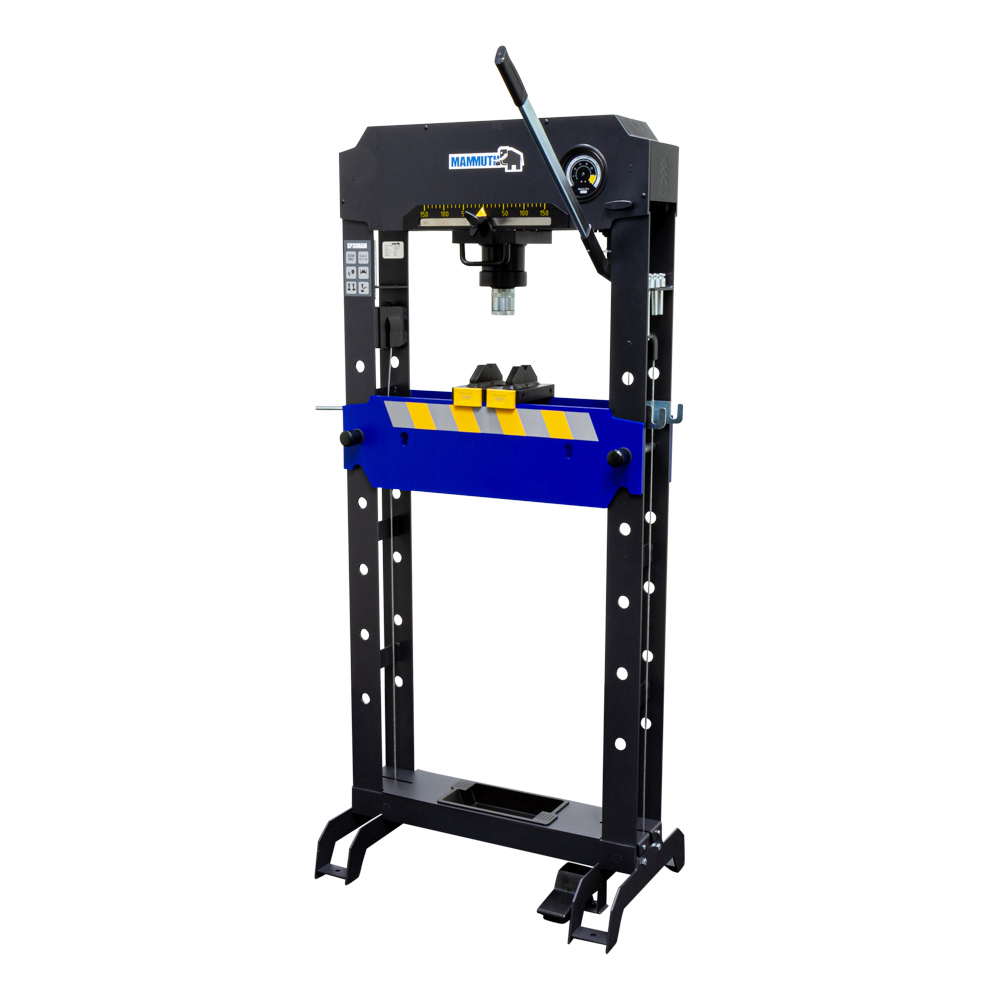

Pneumatic foot pedal: Effortless operation and keeps your hands free.
Technical specifications
- Capacity = 30 ton
- Workbed width = 600 mm
- Workbed depth = 187 mm
- Minimum working height = 25 mm
- Maximum working height = 850 mm
- Length of screw spindle = 75 mm
- Cylinder stroke = 220 mm
- Cylinder diameter = ø55 mm
- Working air pressure = 8 - 12 bar
- Air connection = 1/4 NPT
- Oil capacity = 1.2 L
- Oil type = OKCH68
Dimensions and weights
- Weight =194.0Kg
- Product weight =180.0Kg
- Length =840.0mm
- Width =1750.0mm
- Height =350.0mm
- Product Length =770.0mm
- Product Width =505.0mm
- Product Height =1800.0mm
