- Two-stage pump
- Adjustable workbed
- Side-adjustable cylinder with scale
- Interchangeable press adapter
- Pneumatic foot pedal
Product Code: SP30XHAM
EAN: 8720028097807
PRODUCT DESCRIPTION

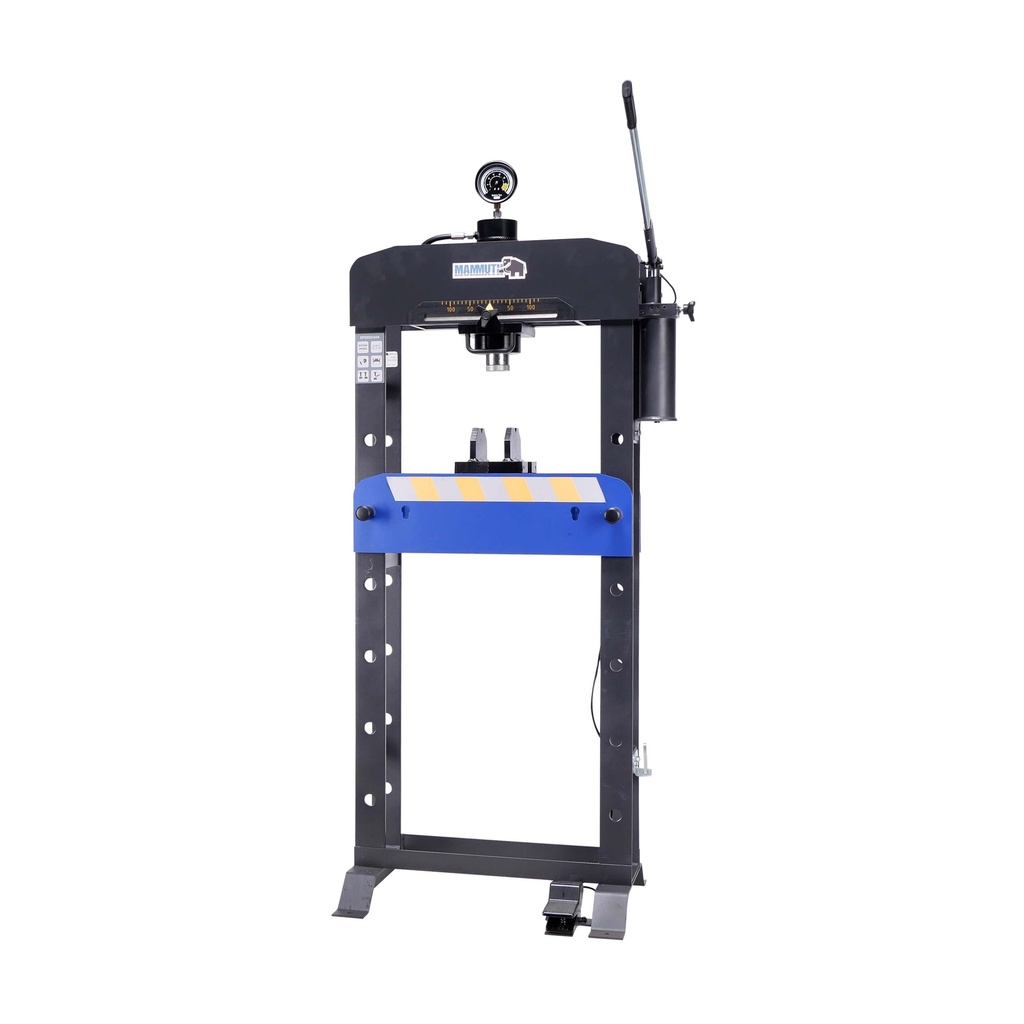

This Mammuth bearing press is ideal for installing bearings, pressing shafts and bolts, and other precise pressing tasks. Thanks to the fully welded frame and smooth operation, this press is a reliable choice for any workshop. The press comes with 2 press blocks.
- Two-stage pump: First fast, then precise pressing.
- Adjustable workbed: Easily secured at 6 different heights.
- Side-adjustable cylinder with scale: For precise positioning.
- Interchangeable press adapter: Easily removable for using other attachments.
-
Pneumatic foot pedal: Effortless operation and keeps your hands free.
Technical specifications
- Capacity = 30 ton
- Workbed width = 540 mm
- Workbed depth = 148 mm
- Minimum working height = 75 mm
- Maximum working height = 915 mm
- Cylinder stroke = 180 mm
- Cylinder diameter = ø60 mm
- Working air pressure = 8 - 12 bar
- Air connection = 1/4 NPT
- Oil capacity = 1.2 L
- Oil type = OKCH68
Dimensions and weights
- Weight =145.0Kg
- Product weight =131.0Kg
- Length =1600.0mm
- Width =770.0mm
- Height =330.0mm
- Product Length =840.0mm
- Product Width =540.0mm
- Product Height =1850.0mm
