PRODUCT DESCRIPTION

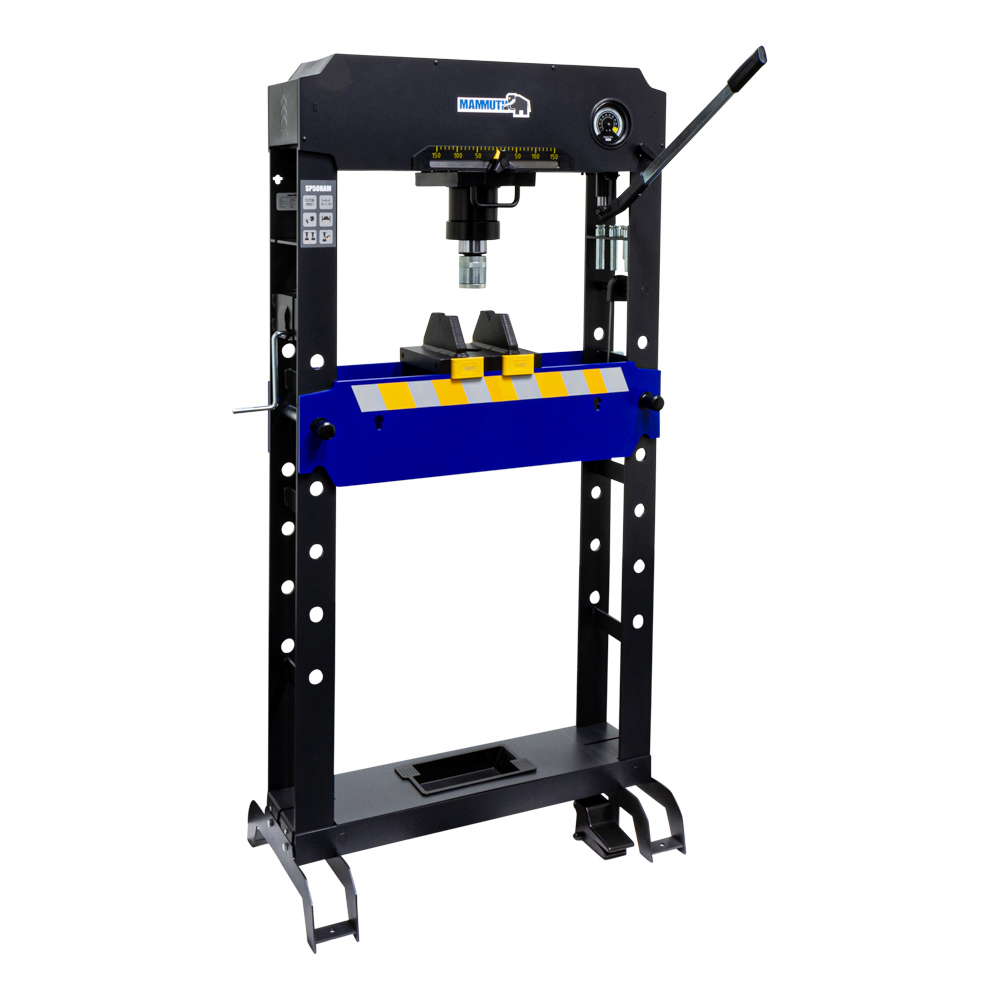

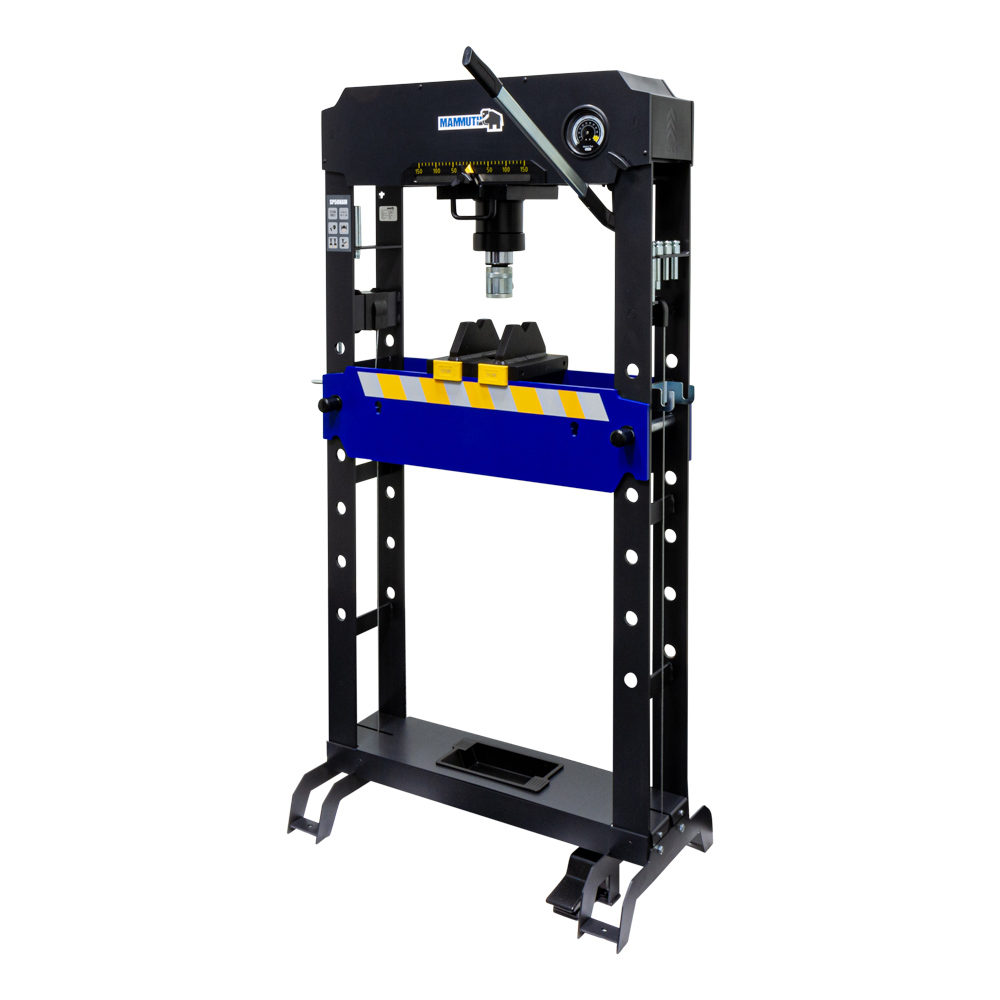

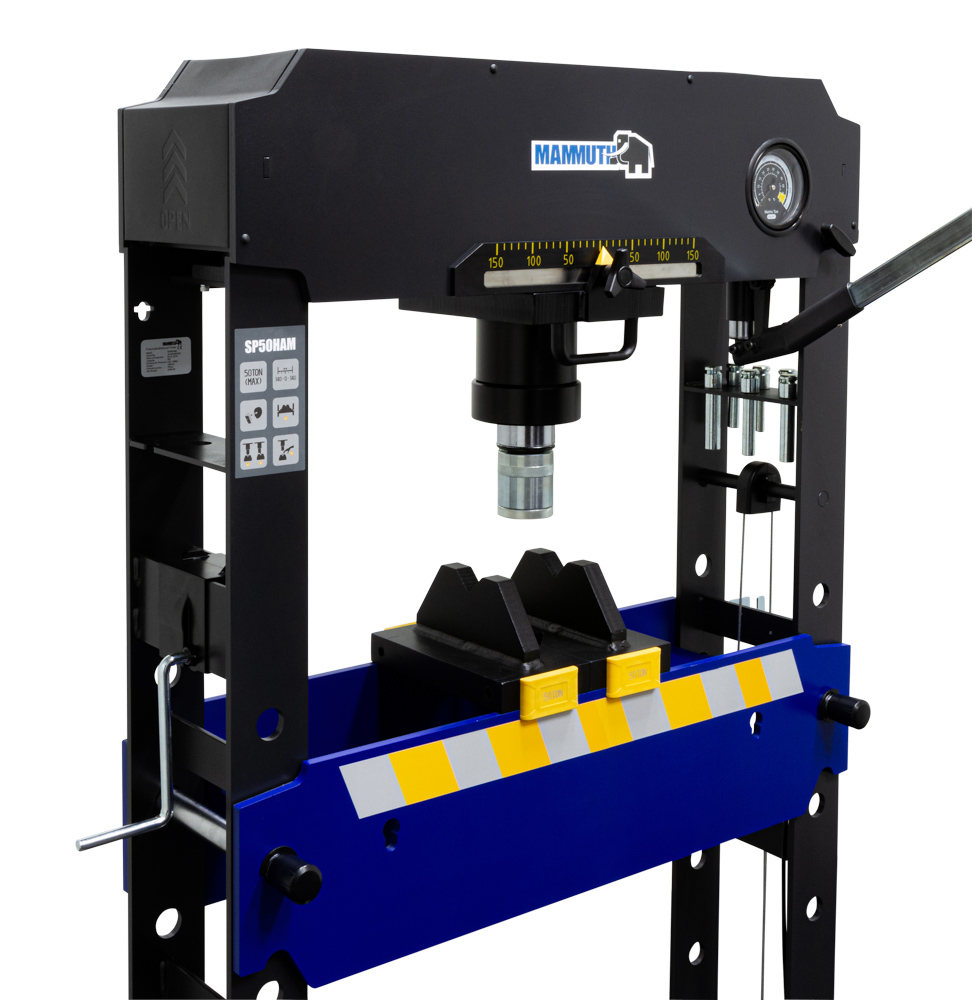

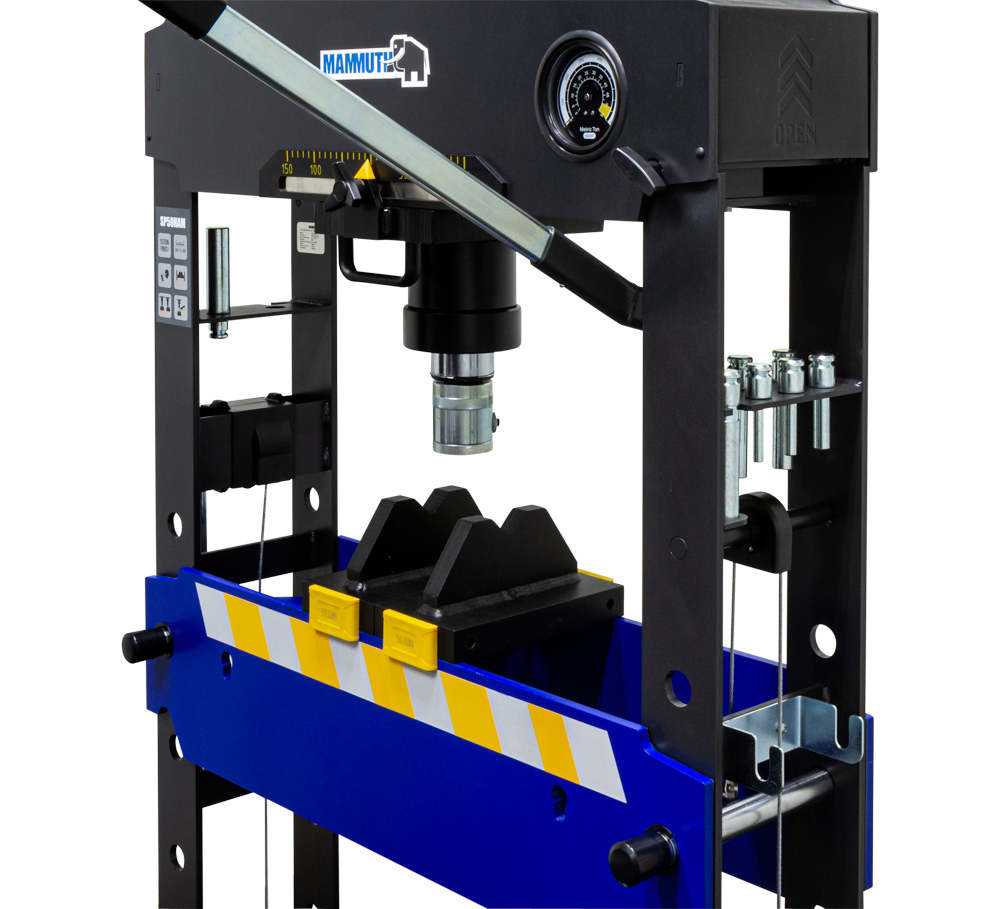

This Mammuth workshop press is a powerful and versatile machine. Ideal for installing and removing bearings, straightening metal parts, and pressing shafts and bolts. Thanks to the fully welded frame with an integrated pressure gauge and smooth operation, this press offers power and precision. This makes it a reliable choice for any workshop. The press is supplied with 2 pressing blocks.
- Two-stage pump: First fast, then precise pressing.

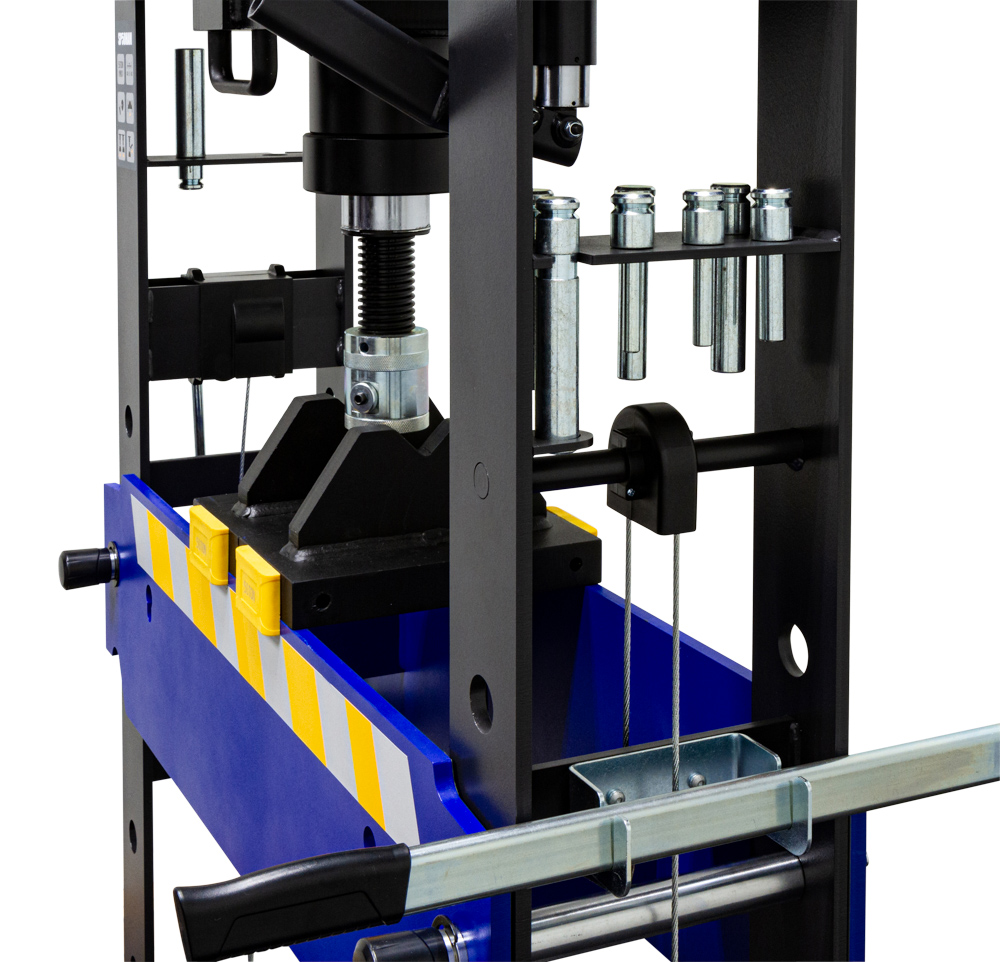

- Hand winch workbed: Easily adjustable with the winch at 6 different heights.

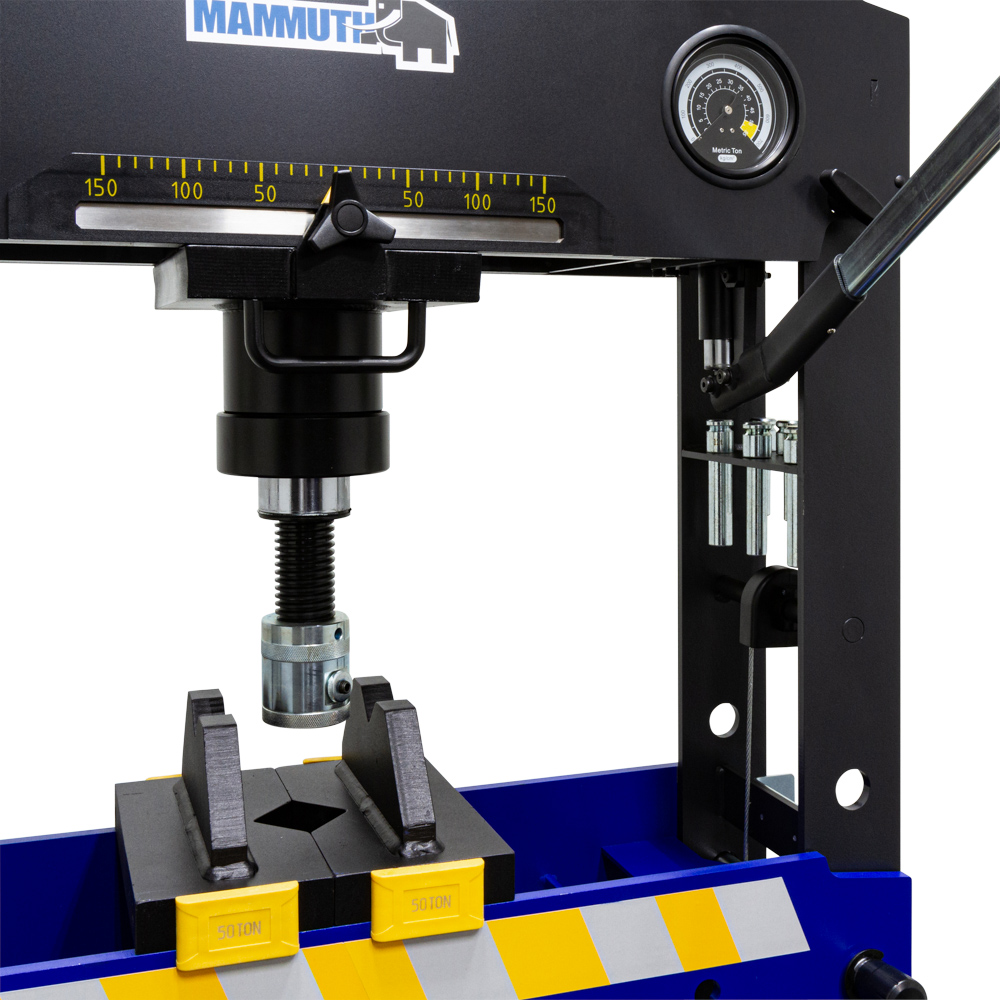

- Adjustable cylinder with scale: Side adjustable and extendable via the screw spindle for precise positioning.
-
Quick-change press head including 8 pressing pins: Easy to clip on and secure.
-
Pneumatic foot pedal: Effortless operation and keeps your hands free.
Technical specifications
- Capacity = 50 ton
- Workbed width = 750 mm
- Workbed depth = 200 mm
- Minimum working height = 80 mm
- Maximum working height = 780 mm
- Length of screw spindle = 75 mm
- Cylinder stroke = 220 mm
- Cylinder diameter = ø67 mm
- Working air pressure = 8 - 12 bar
- Air connection = 1/4 NPT
- Oil capacity = 2.5 L
- Oil type = OKCH68
Dimensions and weights
- Weight =288.0Kg
- Product weight =250.0Kg
- Length =1000.0mm
- Width =1860.0mm
- Height =420.0mm
- Product Length =930.0mm
- Product Width =535.0mm
- Product Height =1900.0mm
