- Two-stage pump
- Hand winch workbed
- Side-adjustable cylinder with scale
-
Interchangeable press adapter
- Includes press blocks
Product Code: SP50XHM
EAN: 8720028097784
PRODUCT DESCRIPTION

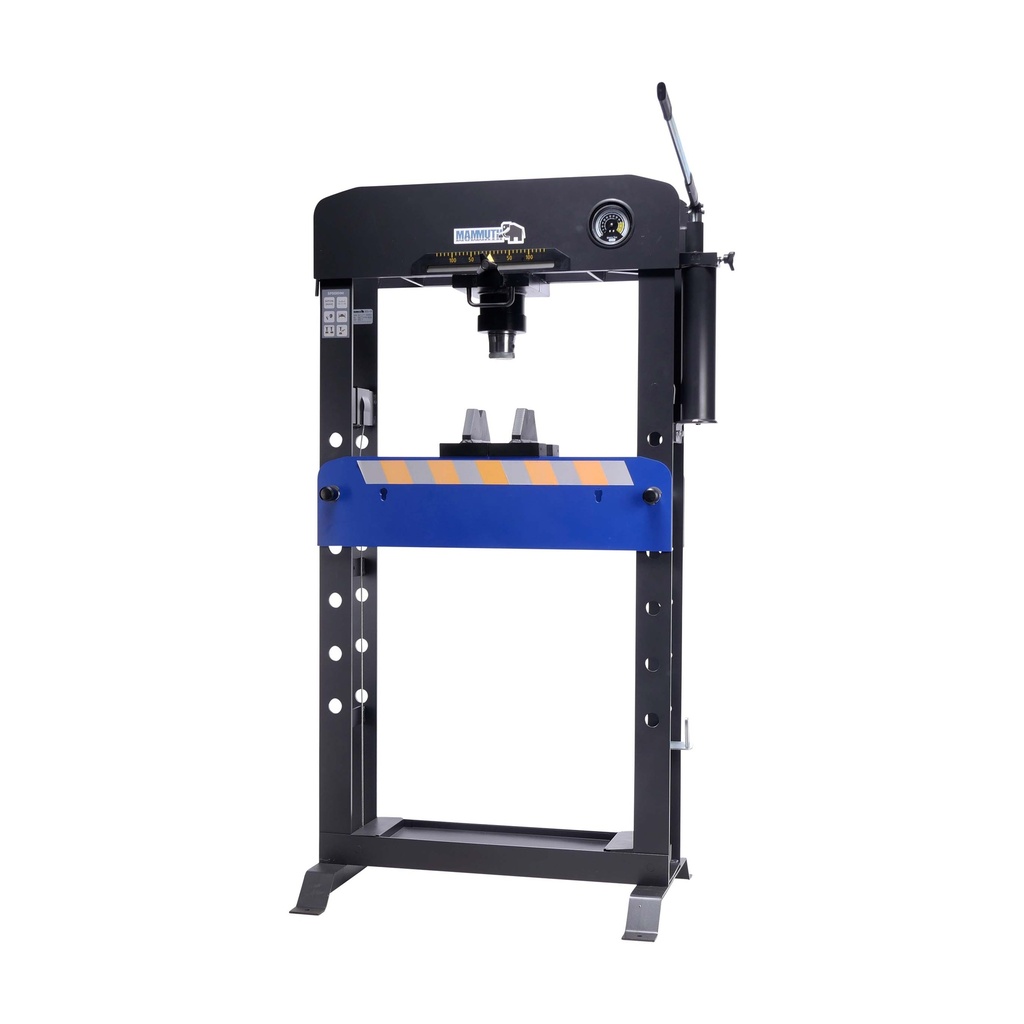

This Mammuth garage press is a powerful and versatile press. Ideal for installing and removing bearings, straightening metal parts, and pressing shafts and bolts. Thanks to the fully welded frame with an integrated pressure gauge and smooth operation, this press offers both power and precision. This makes it a reliable choice for any workshop.
- Two-stage pump: First fast, then precise pressing.
- Hand winch workbed: Easily adjustable with a winch at 6 different heights.
- Side-adjustable cylinder with scale: For precise positioning.
- Interchangeable press adapter: Easily removable for using other attachments.
-
Includes press blocks: Comes with 2 press blocks.
Technical specifications
- Capacity = 50 ton
- Workbed width = 750 mm
- Workbed depth = 200 mm
- Minimum working height = 120 mm
- Maximum working height = 700 mm
- Cylinder stroke = 200 mm
- Cylinder diameter = ø70 mm
- Oil capacity = 2.5 L
- Oil type = OKCH68
Dimensions and weights
- Weight =255.0Kg
- Product weight =241.0Kg
- Length =1820.0mm
- Width =1100.0mm
- Height =405.0mm
- Product Length =1080.0mm
- Product Width =650.0mm
- Product Height =1850.0mm
