PRODUCT DESCRIPTION
Please note: The new line of electric hydraulic shop presses is now available here >>>

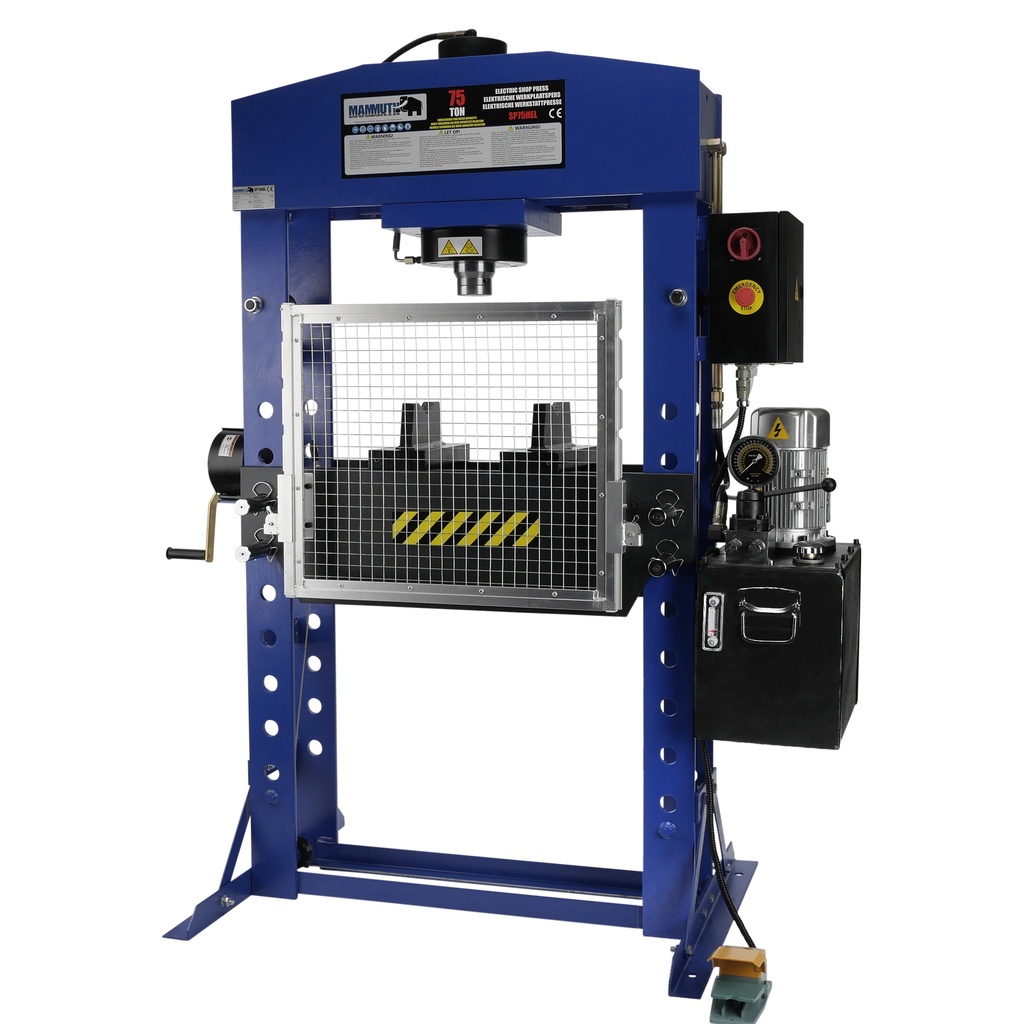

This Mammuth workshop press is a powerful and versatile machine. Thanks to the fully welded frame and electric hand or foot control, the press offers speed, power, and precision. This makes it a reliable choice for any workshop. The press is supplied with 2 pressing blocks.

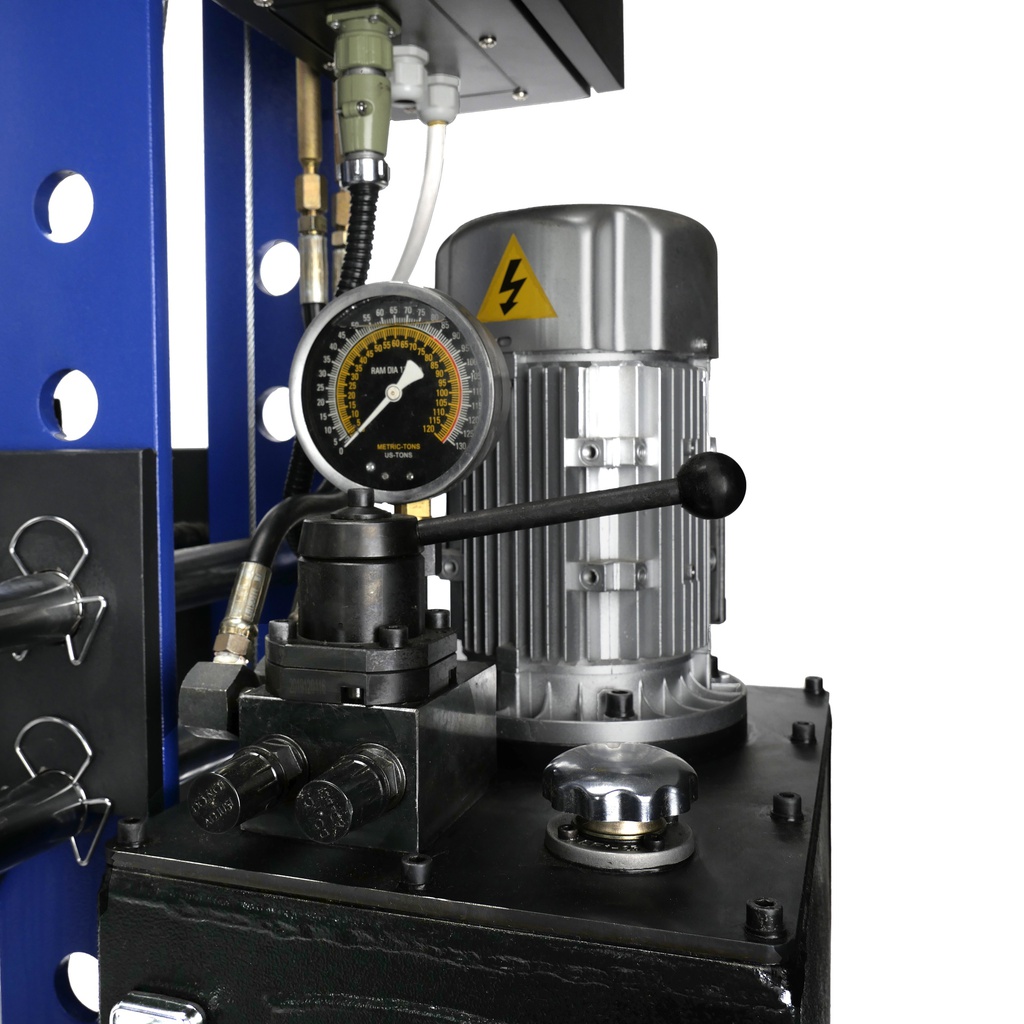

- Electric control: Effortless and fast operation.

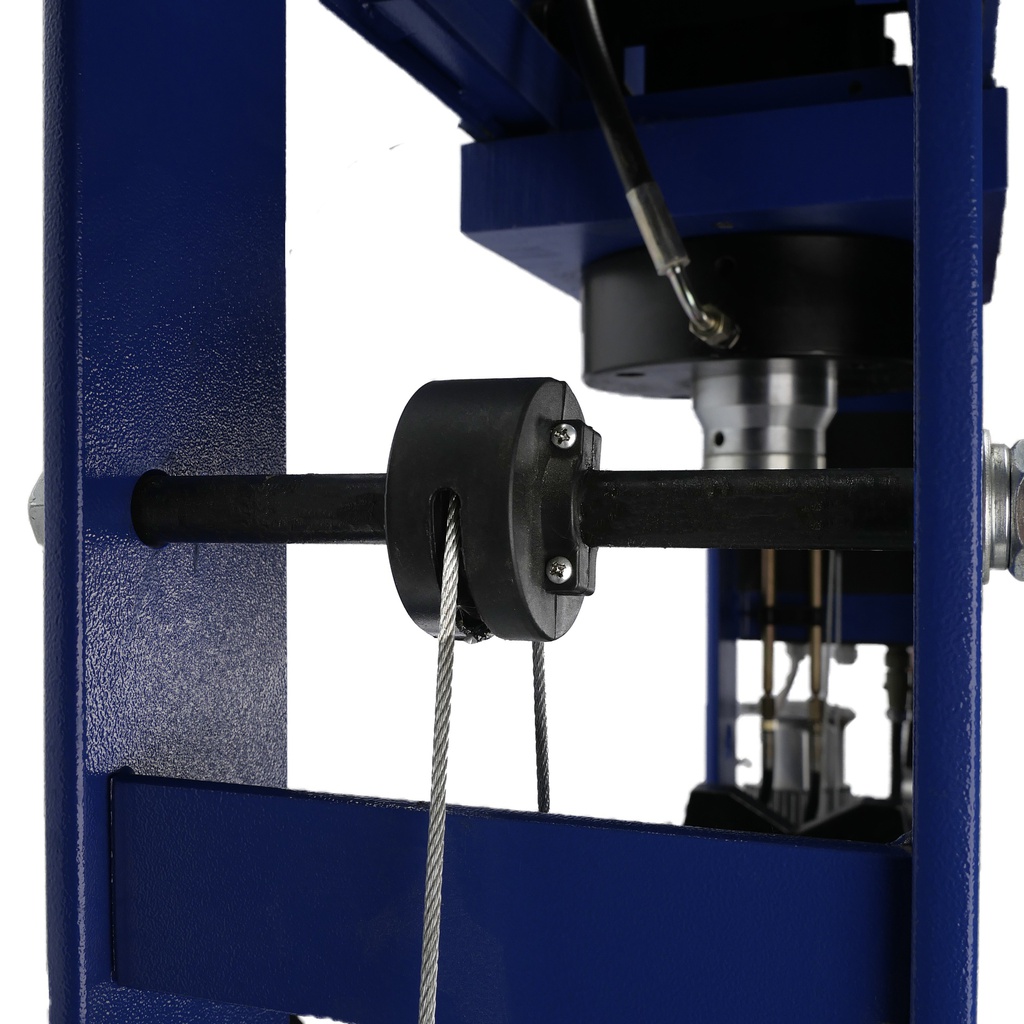

- Hand winch: Work table easily adjustable to 8 different heights and the cylinder adjustable sideways.
- Interchangeable pressing adapter: Easy to remove for using other attachments.
- Safety guard: For extra protection during use.
- Foot pedal: Keeps your hands free.
Please note: the press is supplied without CH22 hydraulic oil (22 liters).
Technical specifications
- Capacity = 75 ton
- Workbed width = 800 mm
- Workbed depth = 280 mm
- Minimum working height = 183 mm
- Maximum working height = 897 mm
- Cylinder stroke = 250 mm
- Cylinder diameter = ø78 mm
- Voltage = 400V
- Power = 1.5 kw
- Motor speed = 1400 rpm
- Pressing speed (outward) = 2.3 mm/sec
- Pressing speed (inward) = 3.8 mm/sec
- Oil capacity = 22 L
- Oil type = OCH22
Dimensions and weights
- Weight =548.0Kg
- Product weight =491.0Kg
- Length =2040.0mm
- Width =1090.0mm
- Height =365.0mm
- Product Length =1140.0mm
- Product Width =800.0mm
- Product Height =1860.0mm
