- Foldable
- 360-degree rotation
- Easy installation
- Hand winch
-
2 positions
Product Code: TC45HW
EAN: 8720028057382
PRODUCT DESCRIPTION

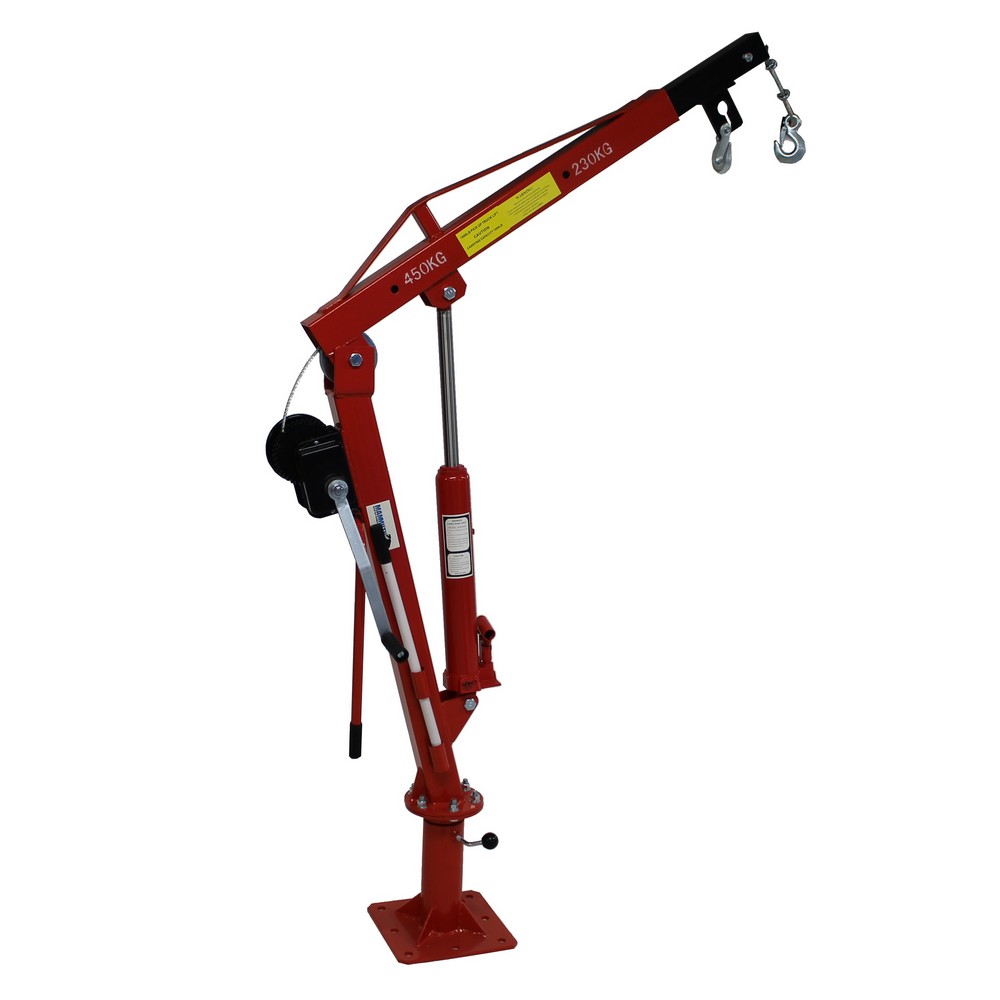

This Mammuth trailer crane with hand winch is a reliable choice for lifting and moving loads up to 450kg. Ideal for mounting on trailers and pick-ups, this crane offers the reliability and power needed for loading and unloading.
- Foldable: Takes up minimal space.
- 360-degree rotation: For maximum flexibility.
- Easy installation: Pre-drilled mounting plate for quick assembly.
- Hand winch: Lifts loads precisely with extra control.
- 2 positions: Choose the right position for every task
Position 1 (230Kg)
Minimum height: 0mm
Maximum height: 2150mm
Arm length: 1290mm
Position 2 (450Kg)
Minimum height: 0mm
Maximum height: 1595mm
Arm length: 870mm
The mounting plate has dimensions of 270x270mm, with a hole-to-hole distance of 205x205mm.
Technical specifications
- Material = Steel
- Lifting capacity = 450 kg
- Oil capacity = 0.51 L
- Oil type = OKCH68
Dimensions and weights
- Weight =53.0Kg
- Product weight =52.0Kg
- Length =1130.0mm
- Width =280.0mm
- Height =180.0mm
- Product Length =720.0mm
- Product Width =270.0mm
- Product Height =1450.0mm
