Product Code: TEP700B
EAN: 8720028072408
PRODUCT DESCRIPTION

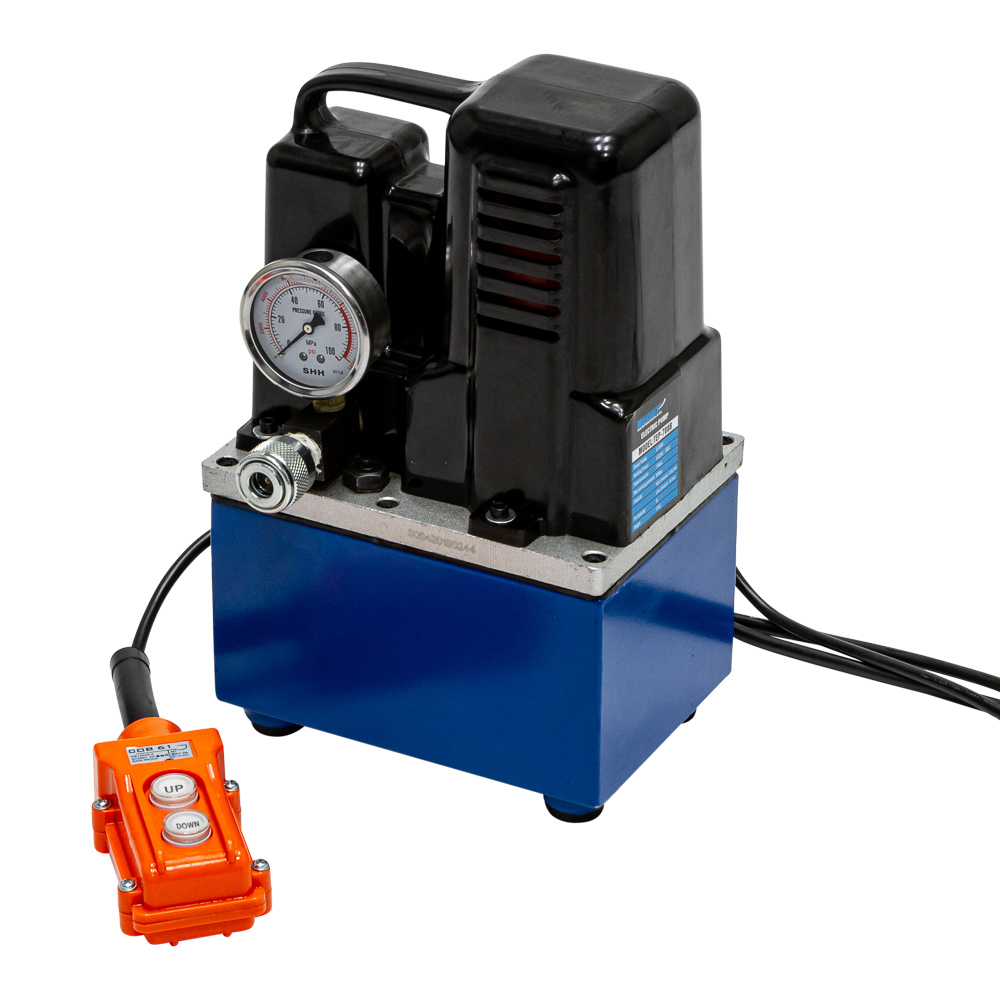

Electric hydraulic pump
Small volume pump with high-performance motor.
The speed and electric power are automatically adjusted during lifting.
Even under high pressure (32MPa), the pump starts easy.
Easy to take anywhere.
- voltage = AC220V 50Hz
- rated power = 0,75Kw
- low pressure = 2,5 Mpa / 25bar
- high pressure = 70Mpa / 700bar
- max. working pressure = 70Mpa / 700bar
- output low pressure = 4 L/min
- output hoge druk = 0,5 L/min
- oil capacity = 2 Ltr
Technical specifications
Dimensions and weights
- Weight =18.88Kg
- Product weight =13.35Kg
- Length =265.0mm
- Width =320.0mm
- Height =420.0mm
- Product Length =180.0mm
- Product Width =205.0mm
- Product Height =340.0mm
