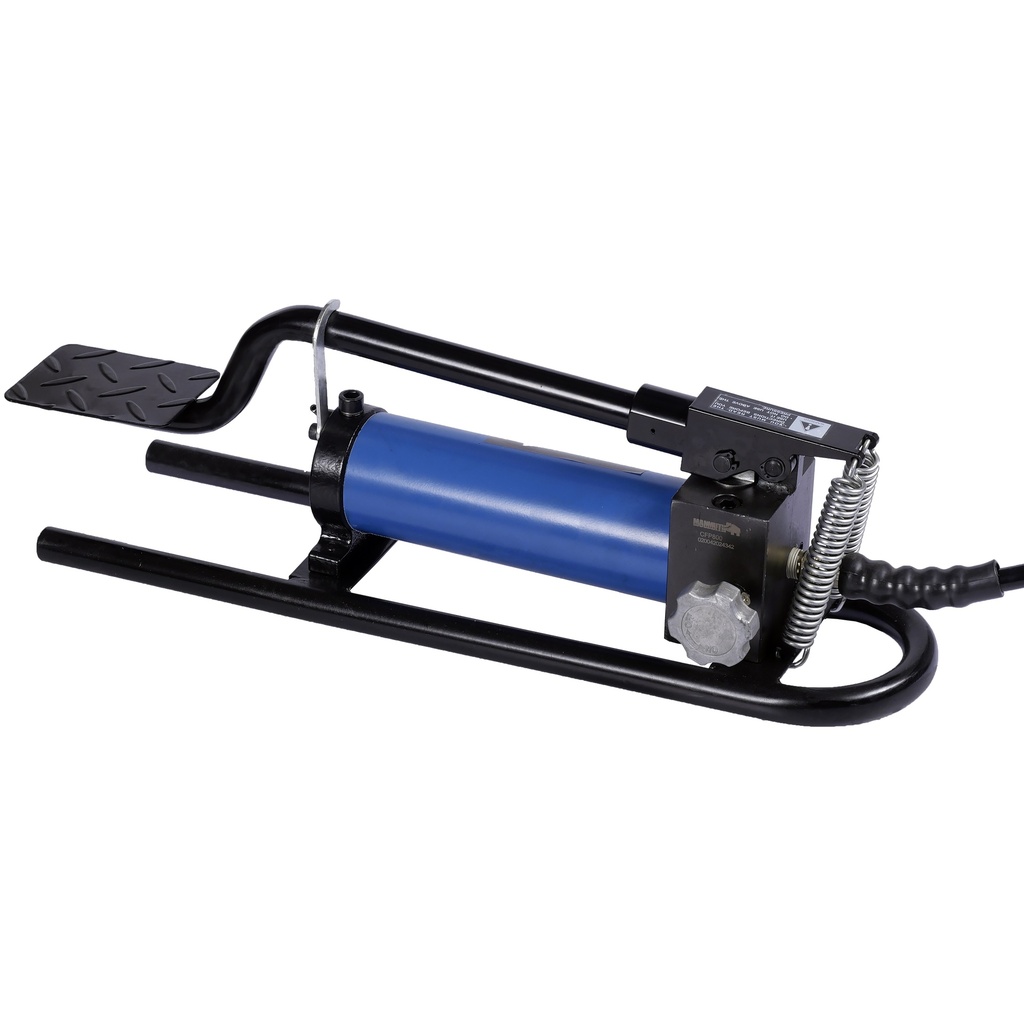

PRODUCT DESCRIPTION
Powerful hydraulic foot-operated pump with dual-stage function for fast and precise operation. Ideal for use with hydraulic tools in workshops or industrial environments.
- Foot operation
Allows hands-free working, giving you full control over the connected tool.
- 700 bar working pressure
Suitable for heavy-duty applications requiring high pressure, such as presses, jacks, and pullers.
- Dual-stage pump
Fast oil delivery at low pressure and precise control at high pressure — efficient and accurate.

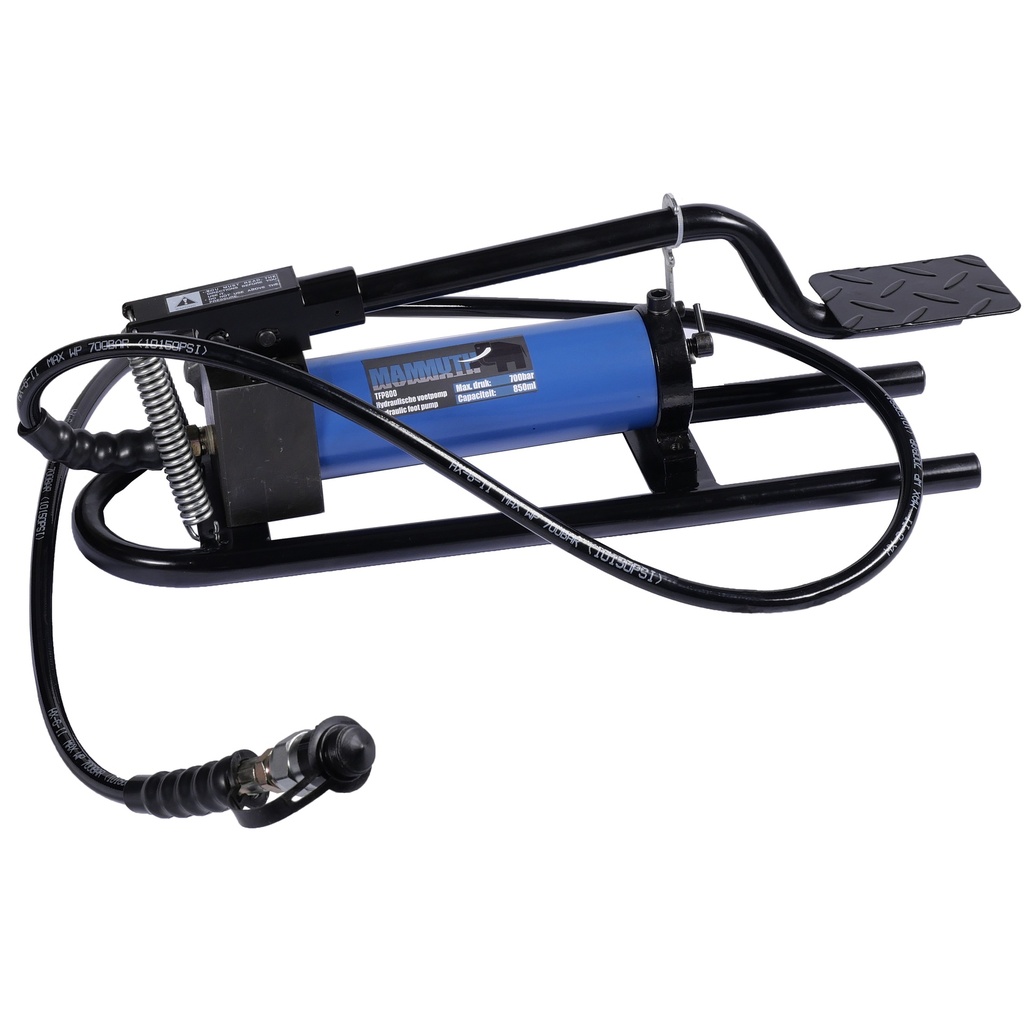

- Includes hose and C19M quick coupling
Ready to use straight out of the box with supplied hydraulic hose and universal coupling.
Technical specifications
- Working pressure max. = 700 bar
- Oil capacity = 700 cc
- Pressure low setting = 20 Bar
- Pressure high setting = 700 Bar
- Output volume low pressure = 11 ml per stroke
- Output volume high pressure = 1.4 ml per stroke
Dimensions and weights
- Weight =15.0Kg
- Product weight =13.5Kg
- Length =600.0mm
- Width =210.0mm
- Height =235.0mm
- Product Length =450.0mm
- Product Width =150.0mm
- Product Height =200.0mm
