Chromed steel
Easy to assemble
Up to 76mm diameter
0 to 50 degrees
Product Code: TN02
EAN: 8720028043736
PRODUCT DESCRIPTION

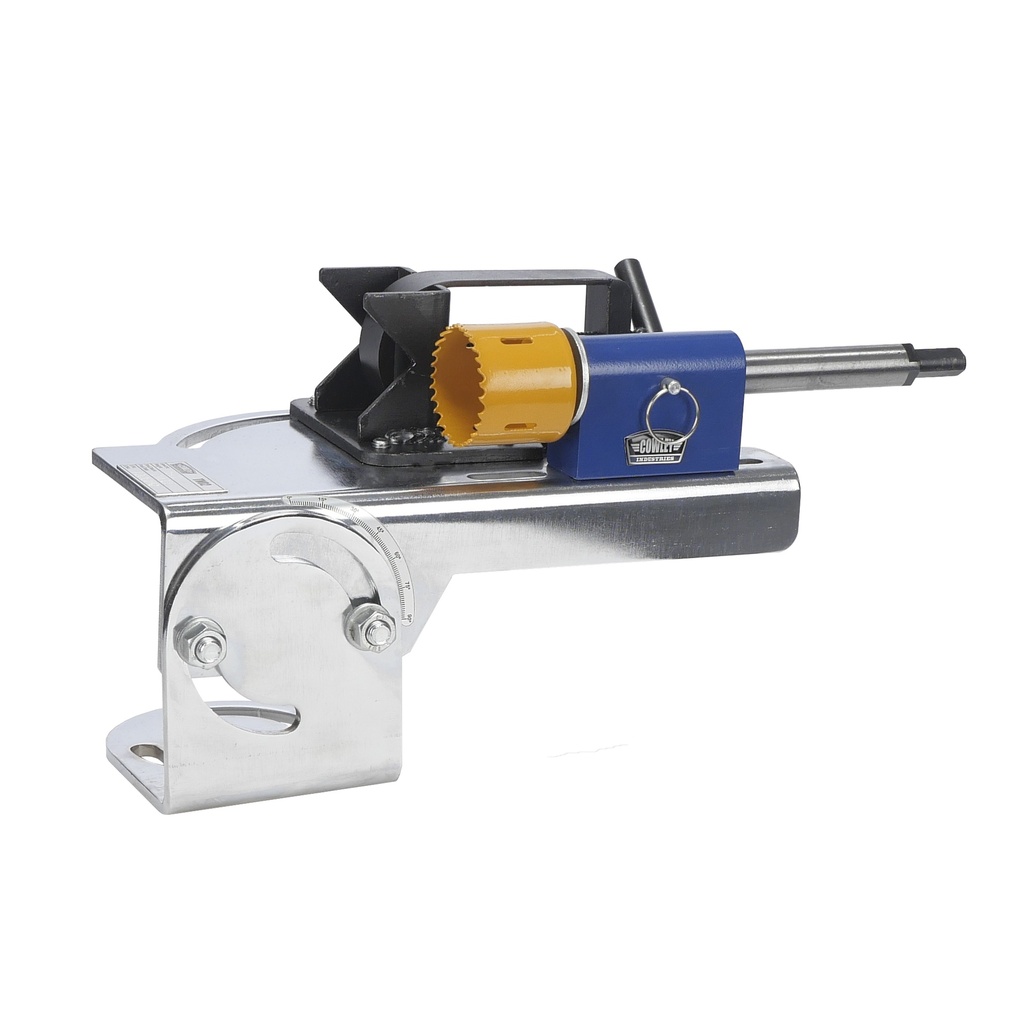

Pipe notcher
This precision pipe notcher is very suitable for making holes in pipes and tubes at different angles before they are welded.
Easy to mount on a work table and in particular to mount on drill presses.
The base can be rotated and together with the adjustable pipe holder it makes the notcher user-friendly in different angles.
Comes with a locking pin for the drill shaft.
The screw thread for the hole saw is M12 x 1,25. With an adaptor this is M16 x 1,50.
pipe/tube capacity = 2" (50mm)
spindle = 3/4" (19mm)
angle adjustment = 0 - 60 degrees
chromed steel
Technical specifications
Dimensions and weights
- Weight =4.6Kg
- Product weight =4.4Kg
- Length =300.0mm
- Width =170.0mm
- Height =200.0mm
- Product Length =285.0mm
- Product Width =170.0mm
- Product Height =200.0mm
