[UC120DFN] Fluxon ultrasonic cleaner 120L

€ 0.00 € 2,000.00

  • Tank capacity
  • Tank dimensions
  • Basket dimensions
  • Basket capacity
  • Ultrasonic power
  • Number of transducers
  • Power per transducer
  • Frequency
  • Heating power
  • Temperature range
  • Timer
  • Power supply
  • Maximum continuous operating time
  • Sound level
  • Mobile
  • Space saving
  • Digitally adjustable
  • Memory function
  • Stainless steel construction

Shop equipment / Cleaning devices / Ultrasonic cleaners

Product Code: UC120DFN

EAN: 8720028147717

PRODUCT DESCRIPTION

Pre-order
This product is currently available for pre-order and can be ordered by phone or by email.

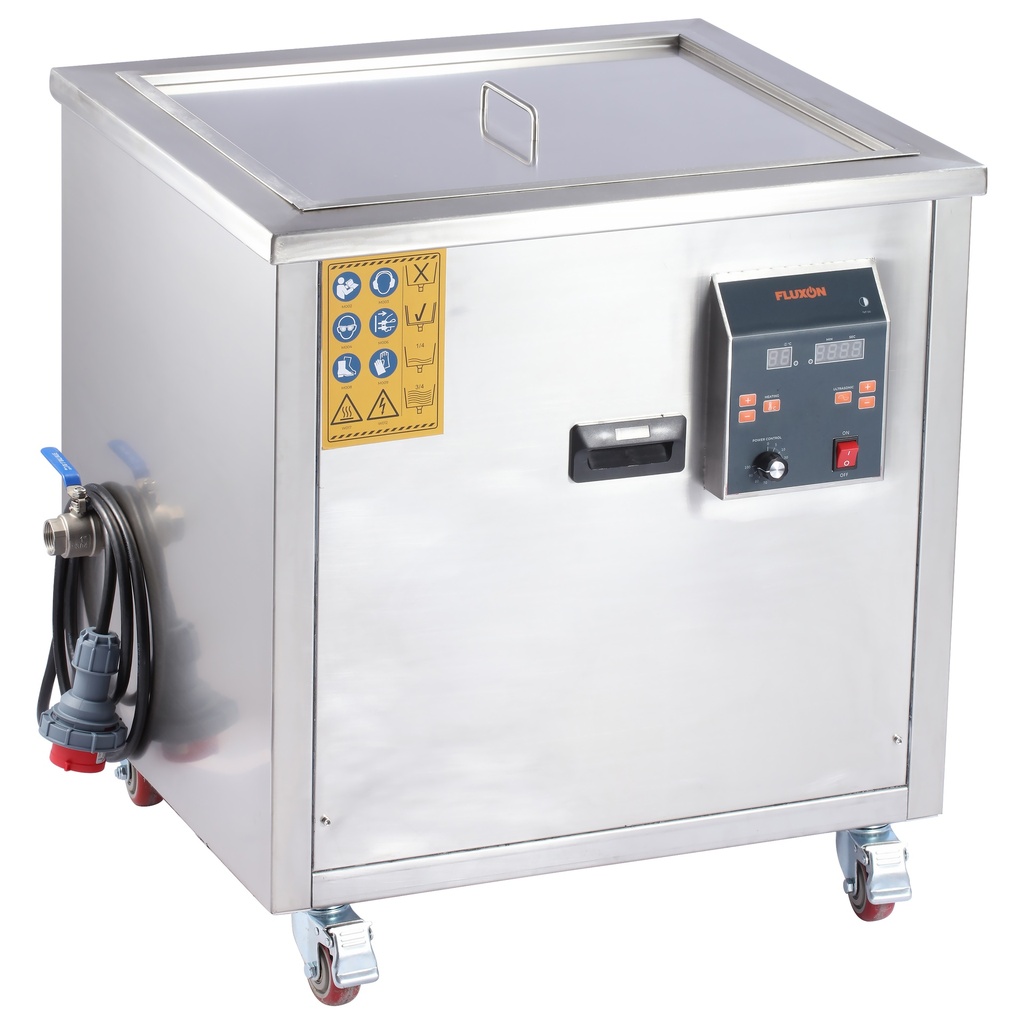

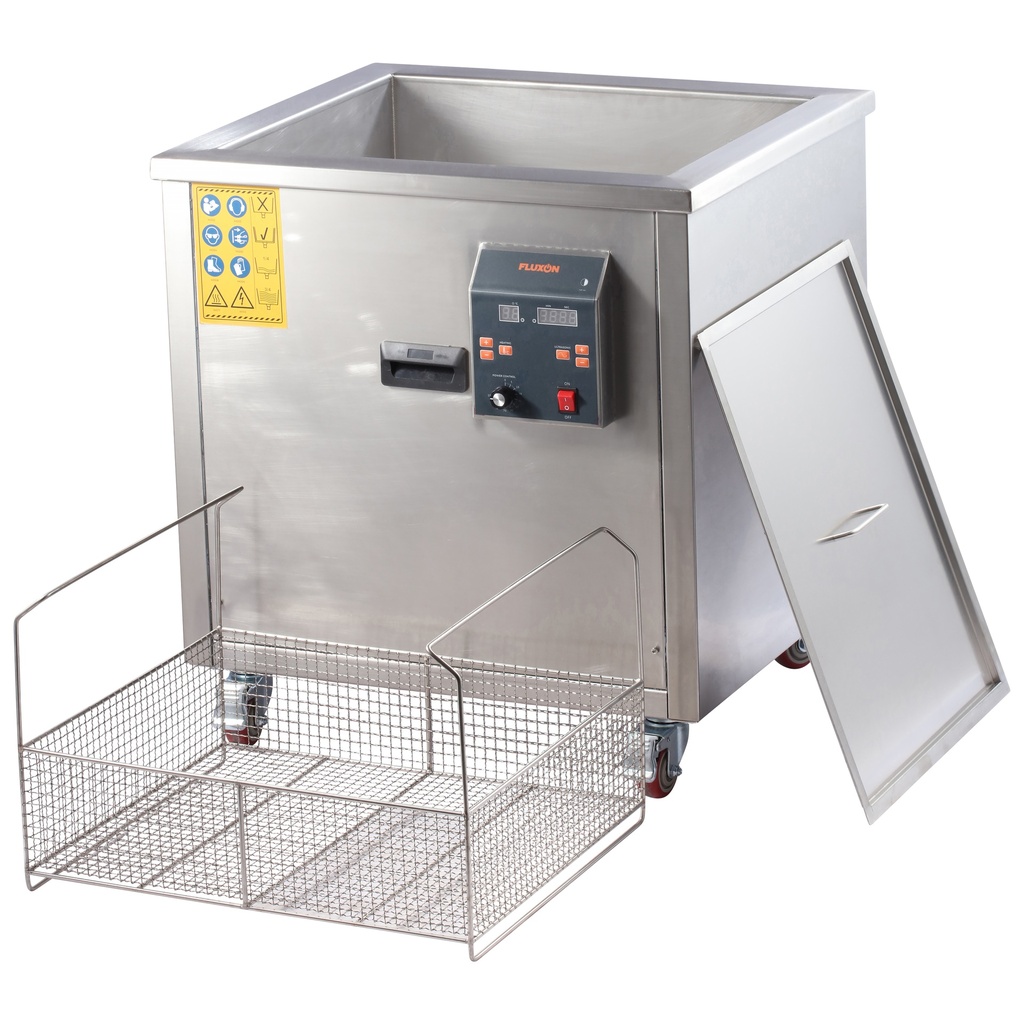

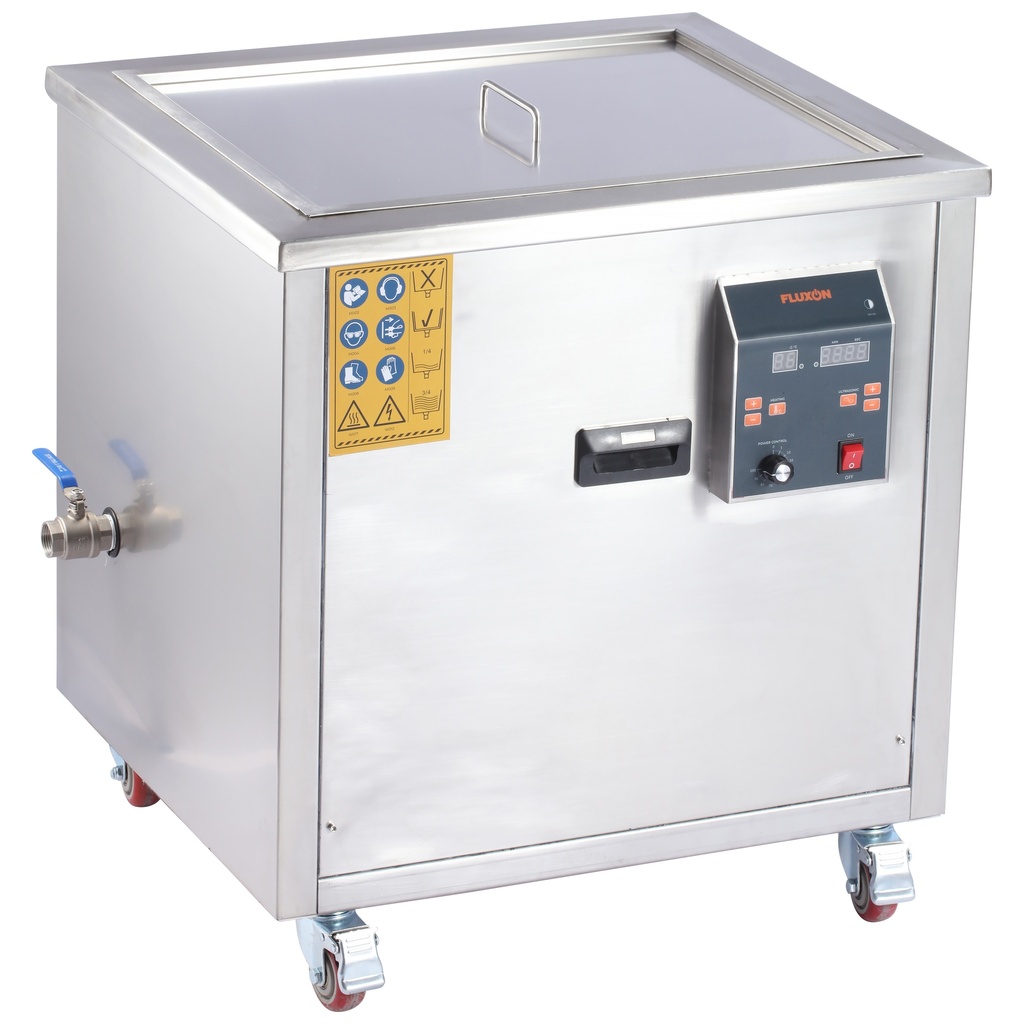

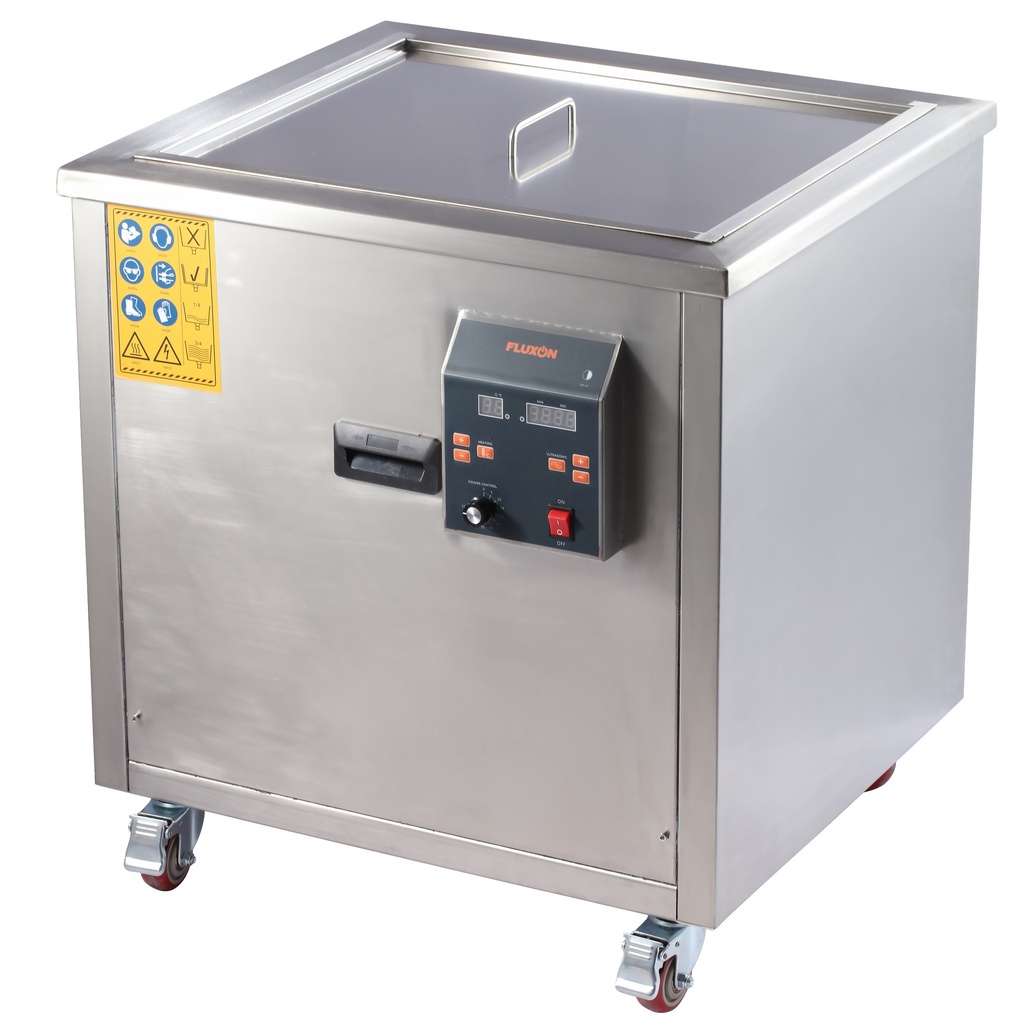

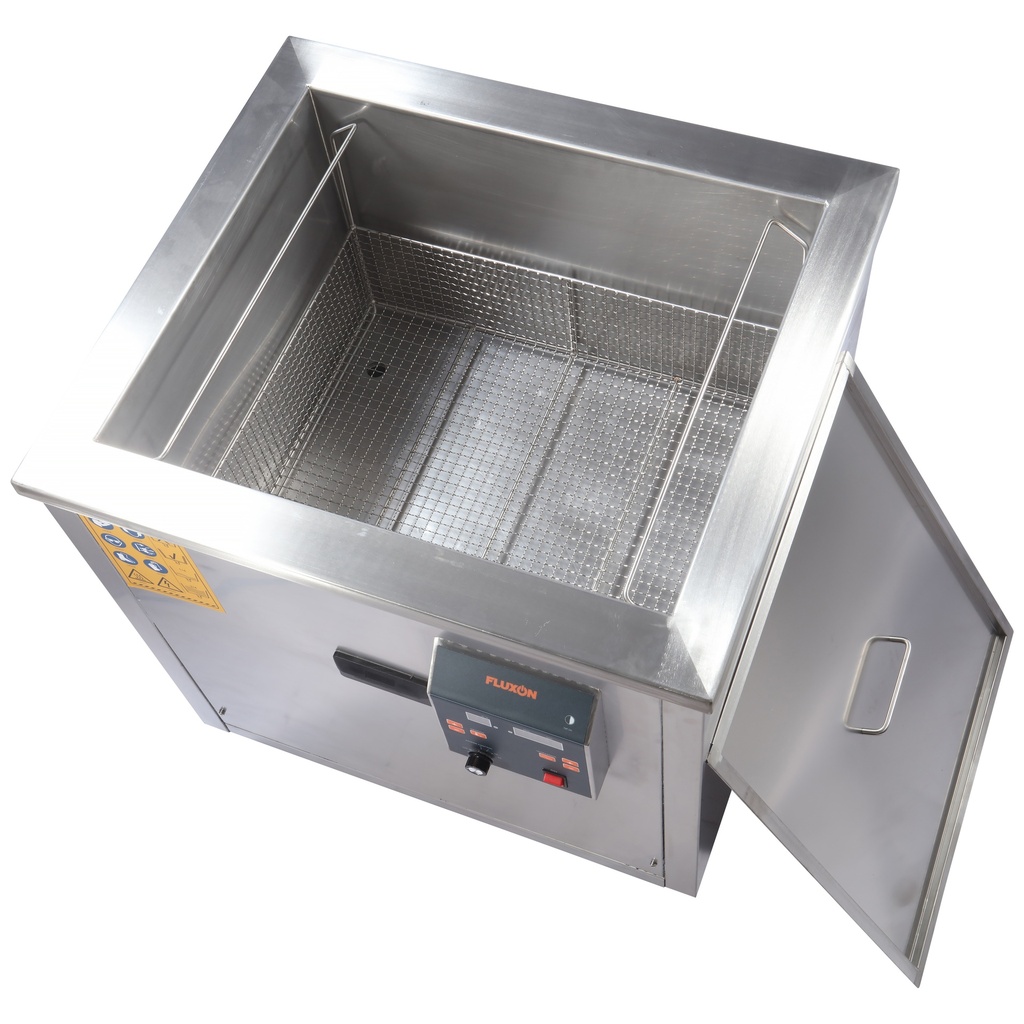

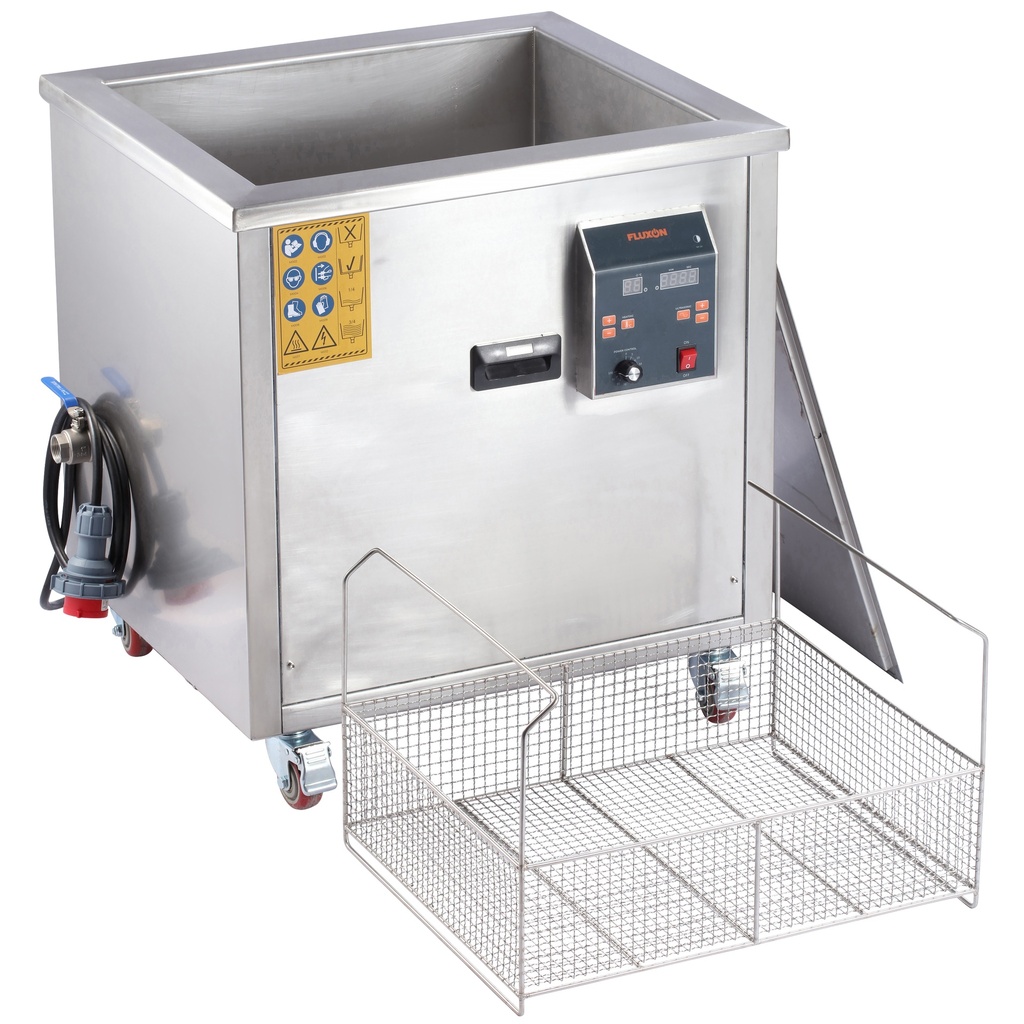

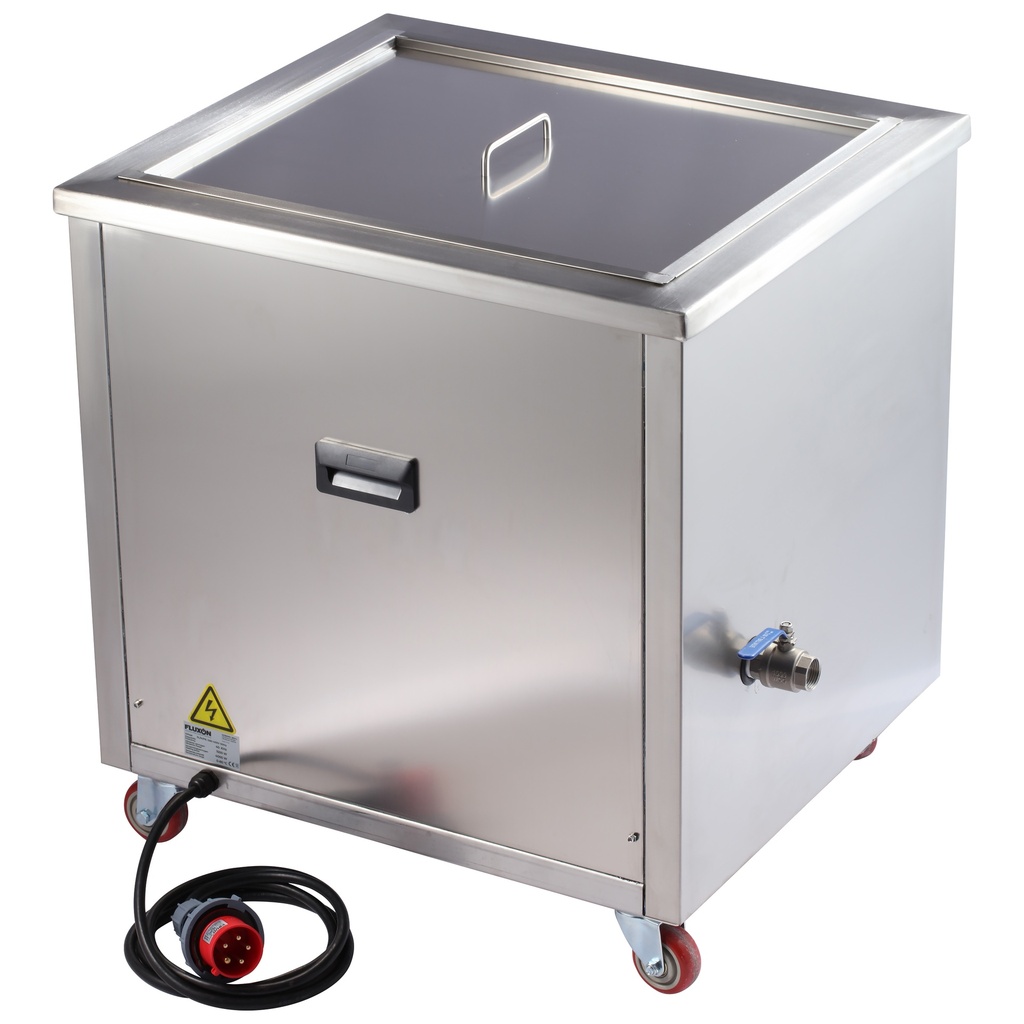

The Fluxon ultrasonic cleaner 120L is suitable for ultrasonic cleaning of parts in workshops, maintenance environments and production environments. With a frequency of 40 kHz, this parts cleaner is suitable for removing contamination from hard-to-reach areas.


By placing the components at the bottom and designing the structure higher, the machine remains compact relative to its capacity and takes up less floor space. The cleaning section and housing are made of stainless steel, with wheels with brakes for easier movement and positioning within the workspace.


After filling the tank with cleaning fluid, time, temperature and intensity can be set via the digital display. This allows the cleaning process to be tailored to the part and the level of contamination. The timer is adjustable from 0 to 99 minutes and can also be used continuously. Thanks to the memory function, the last used settings are retained after a power interruption.


Key features:


  • Mobile

Equipped with swivel casters with brakes for easy movement and positioning.


  • Space saving

The higher structure with components placed at the bottom keeps the machine compact.


  • Digitally adjustable

Time, temperature, and intensity can be set per cleaning process.


  • Memory function

Retains the last used settings after a power interruption.


  • Stainless steel construction

Tank, basket, drain tap, lid, and housing are made of stainless steel.

Technical specifications

  • Tank capacity = 120 L
  • Tank dimensions = 600 × 500 × 400mm
  • Basket dimensions = 580 x 480 x 150 mm
  • Basket capacity = 30 kg
  • Ultrasonic power = 1500W
  • Number of transducers = 30
  • Power per transducer = 50 W
  • Frequency = 40kHz
  • Heating power = 4000W
  • Temperature range = 0°C - 80°C
  • Timer = 0–99 min./continuous
  • Power supply = 400V
  • Maximum continuous operating time = 20 hours
  • Sound level = 80 dB

Dimensions and weights

  • Weight =97.0Kg
  • Product weight =70.0Kg
  • Length =720.0mm
  • Width =660.0mm
  • Height =770.0mm
  • Product Length =720.0mm
  • Product Width =660.0mm
  • Product Height =770.0mm
