Product Code: UMB100B
EAN: 8720028087693
PRODUCT DESCRIPTION

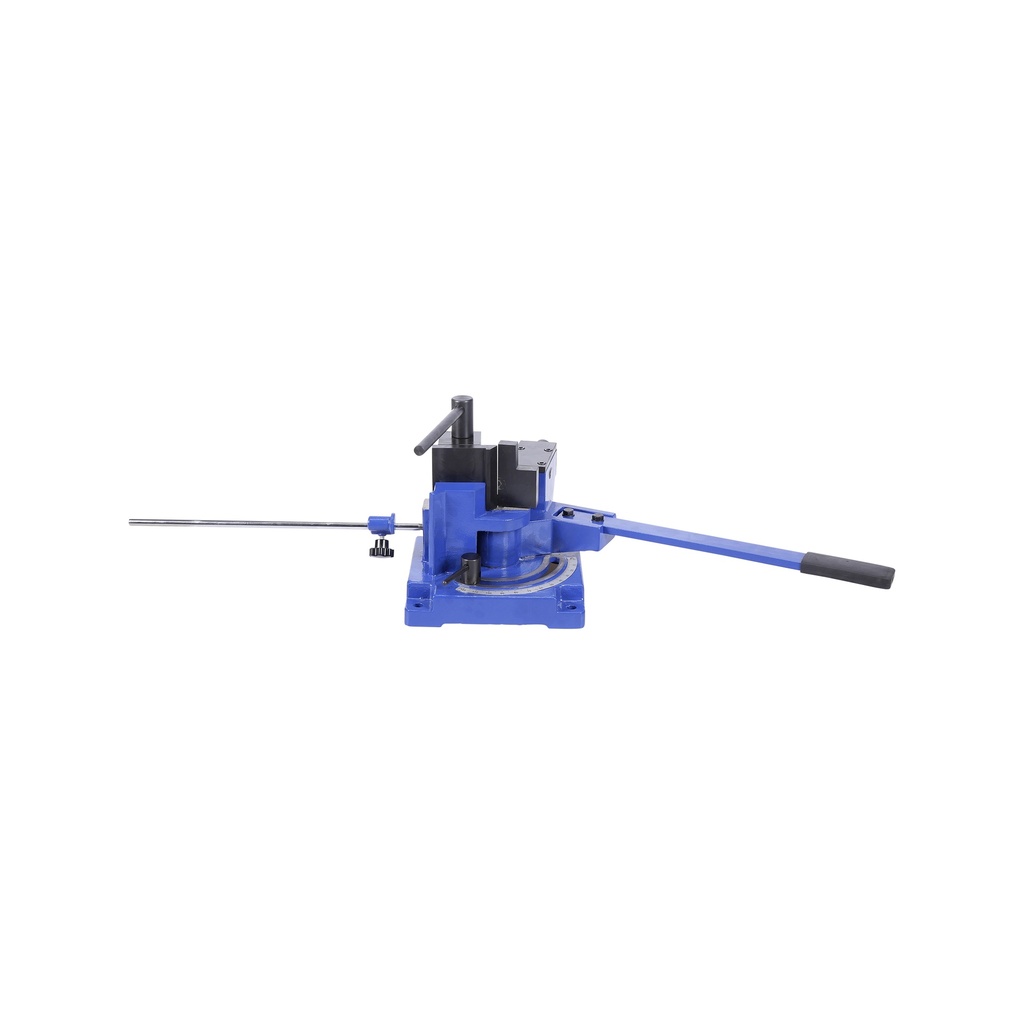

Universal bender
This bender is easy to operate and good for precise use. It has a maximum bending angle of 120 degrees and can be used both warm and cold.
flat steel = warm 100 x 15mm / cold 100 x 8mm
round steel = warm 27mm / cold 22mm
square steel = warm 25 x 25mm / cold 20 x 20mm
Max bending parameters are for low alloy carbon steel.
Technical specifications
Dimensions and weights
- Weight =35.0Kg
- Product weight =34.0Kg
- Length =550.0mm
- Width =320.0mm
- Height =240.0mm
- Product Length =720.0mm
- Product Width =620.0mm
- Product Height =300.0mm
