Fully automatic
Double and triple extendable arms
Quality hydraulic pump
Adjustable rubber pads double spindle
Capacity of 4000kg
Product Code: VL35F230
EAN: 8720028050765
PRODUCT DESCRIPTION

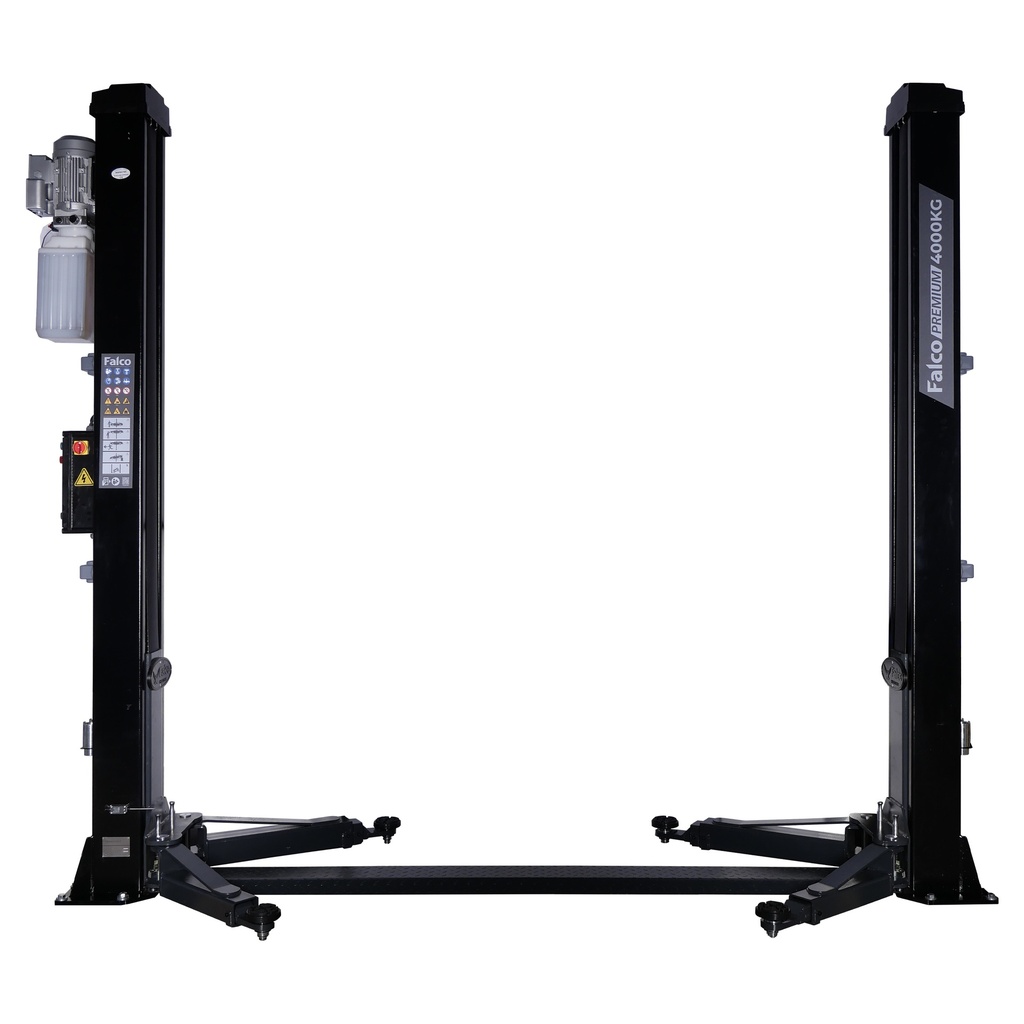

Two post lift
Thanks to the thoughtful design of Falco lifts, you save time and effort. The focus is on ease of use and efficient work flow. The different models are developed for various applications.
The "Premium" fully automatic model is a very complete and reliable model, making the lift suitable for a large number of vehicles.
Features:

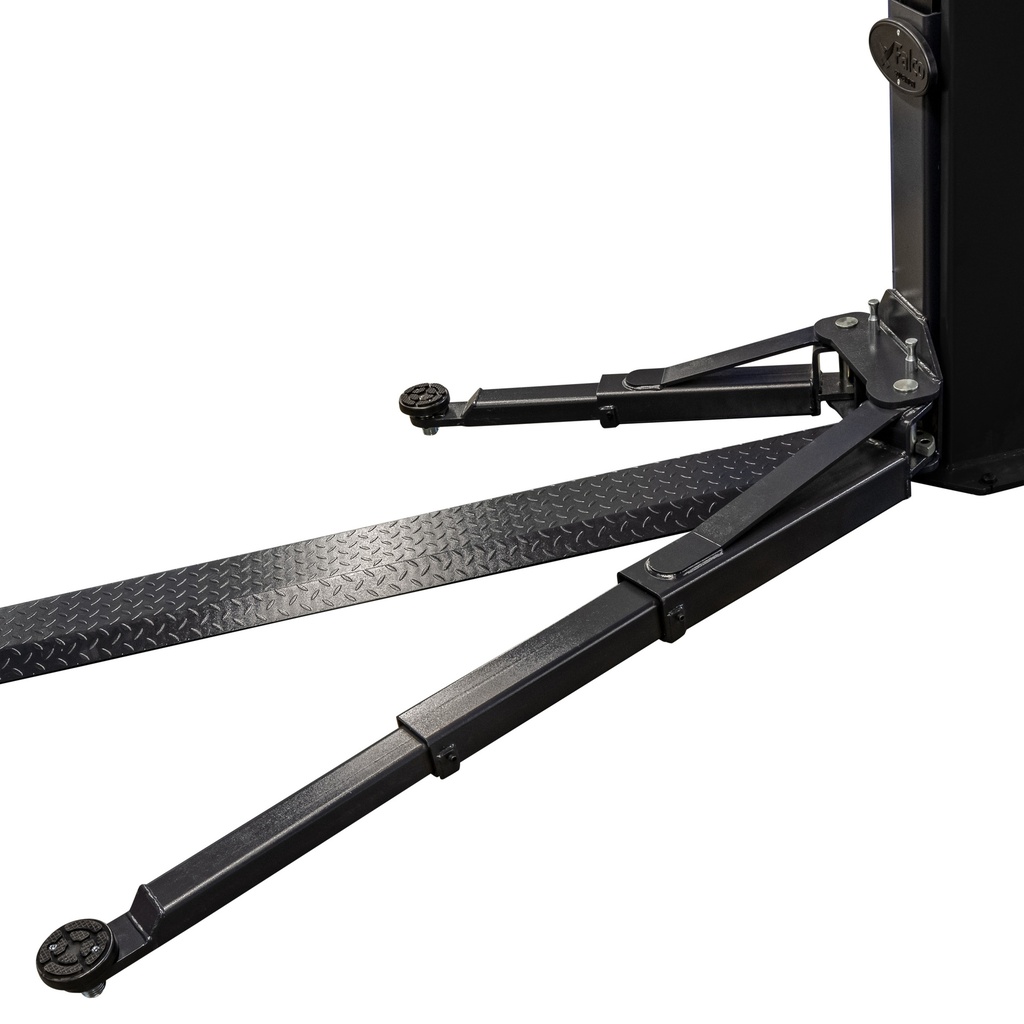

- double and triple telescopic extendable lifting arms
- steel cable synchronization control

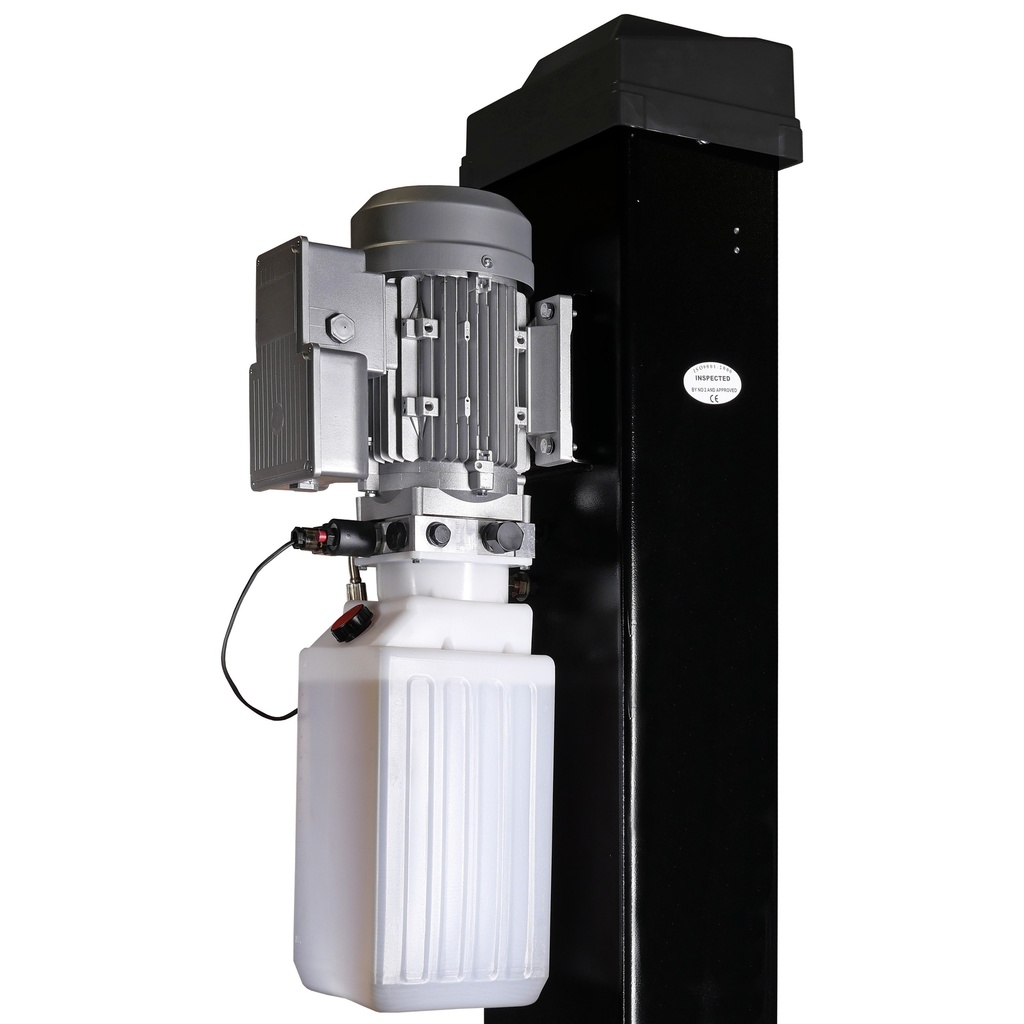

- quality hydraulic pump incl. cooling fins
- clear oil reservoir incl, oil level
- foot protection incl. acoustic security signal
- turns off when the highest position is reached
- in height adjustable lifting pads with double spindles

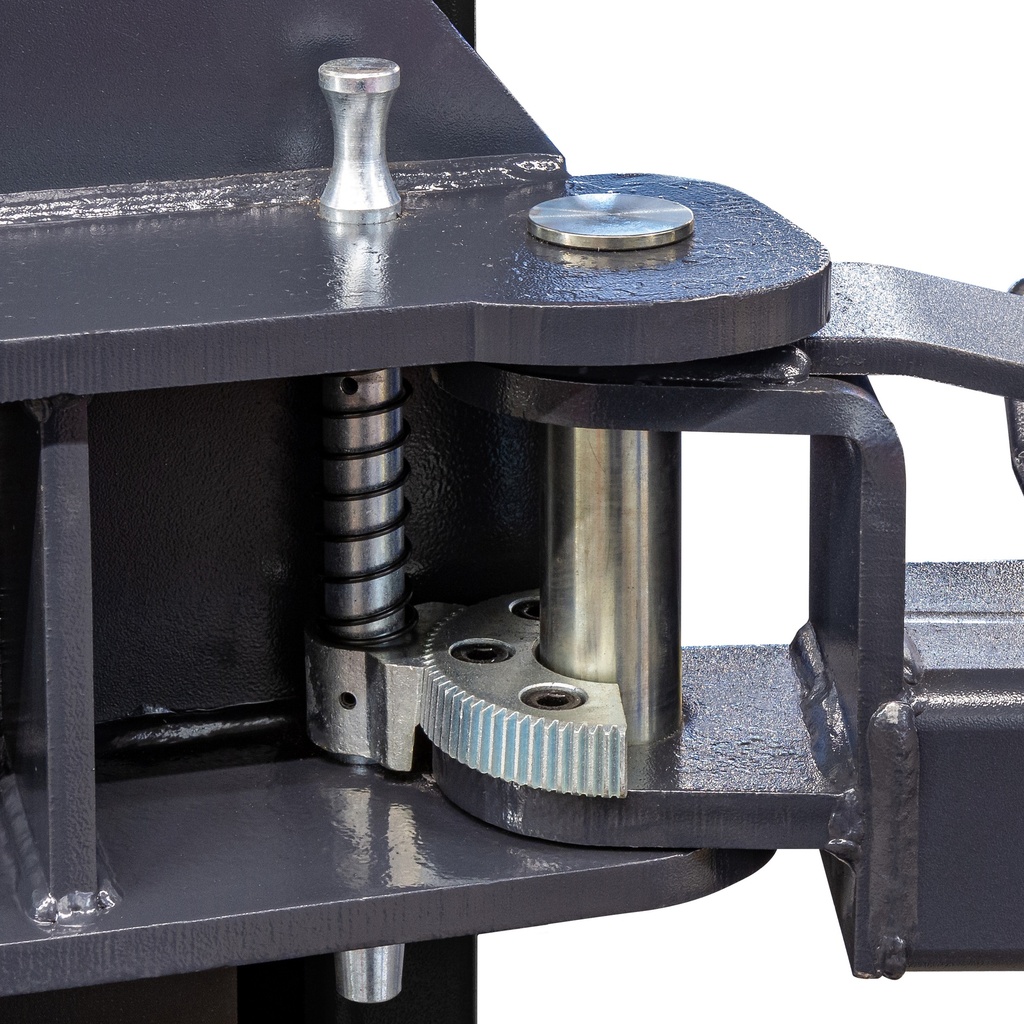

- automatic support arm locking
- fully automatic electric detent

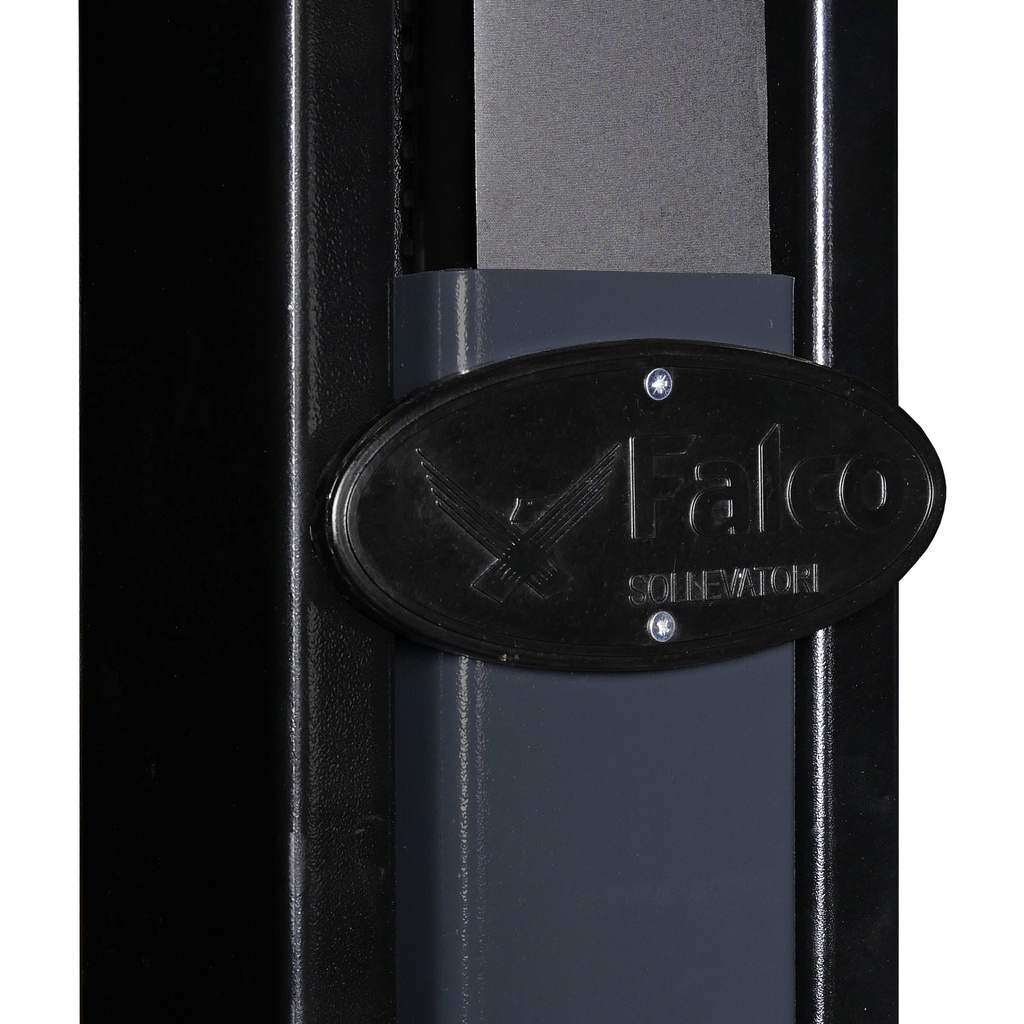

- protective caps on the inside of the columns
- protective rubbers door stop
- robust columns manufactured from rolled steel
- hydraulic cylinder on both sides
- extreme low threshold of 45mm

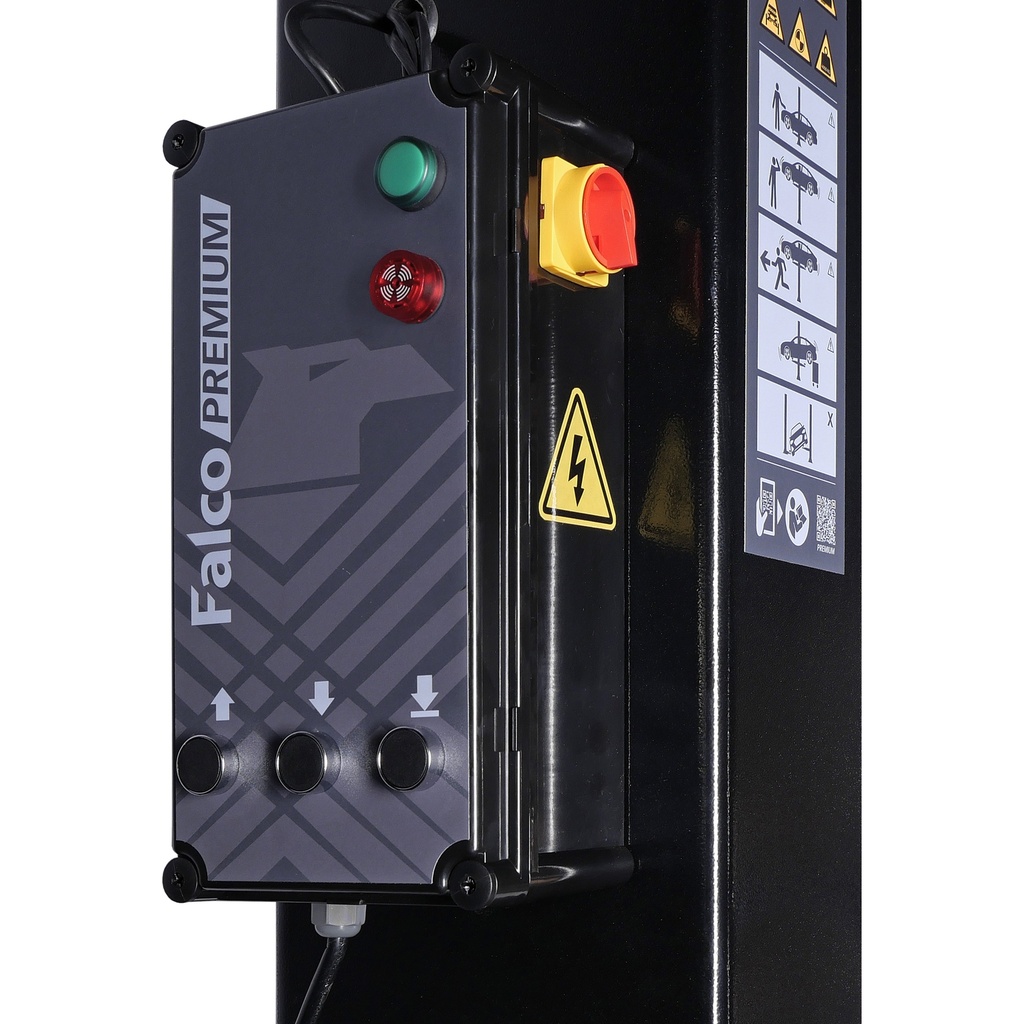

- dead man's switch for lifting and lowering
- automatic protection against overcharge
- height limit switch
- 12 heavy M18 security bolts
All of Falco's car lifts comply with the NEN-EN1493 safety standard and are supplied with a Dutch manual including maintenance protocol and CE certificate 2006/42/EC.
Technical specifications
- Lifting capacity = 4000 kg
- Lifting height min. = 100 mm
- Voltage = 230V
- Lifting height max. = 2050 mm

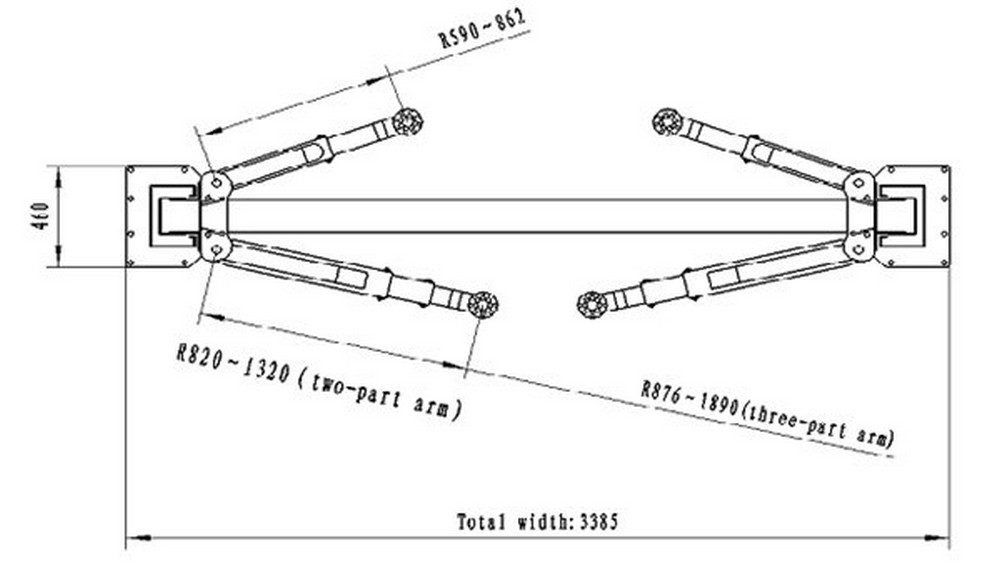

- Telescopic arm short = 630 - 930 mm
- Telescopic arm long = 830 - 1760 mm
- Oil type = CH32
- Motor capacity = 2.2 kW

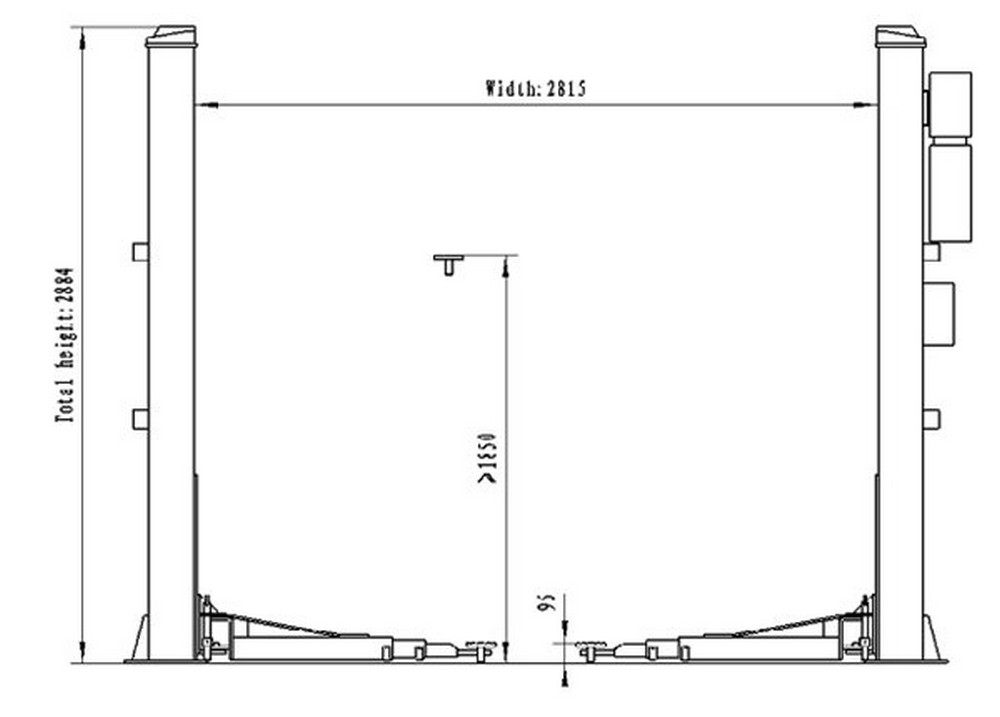

- Columns height = 2806 mm
- Drive-through width = 2815 mm
Dimensions and weights
- Weight =620.0Kg
- Product weight =610.0Kg
- Length =2890.0mm
- Width =500.0mm
- Height =860.0mm
- Product Length =2890.0mm
- Product Width =500.0mm
- Product Height =720.0mm
