[VL35F230B] Two post lift 4000kg 230V Classic

€ 0.00 € 1,700.00

  • Lifting capacity
  • Lifting height min.
  • Voltage
  • Lifting height max.
  • Telescopic arm short
  • Telescopic arm long
  • Oil type
  • Motor capacity
  • Columns height
  • Drive-through width
  • Packaging
  • Sync lock system

  • Capacity of 4000kg

  • Extremely low threshold of 45mm

  • 12x heavy M18 locking bolts

Lifts / Two post lifts

Product Code: VL35F230B

EAN: 8720028070442

PRODUCT DESCRIPTION

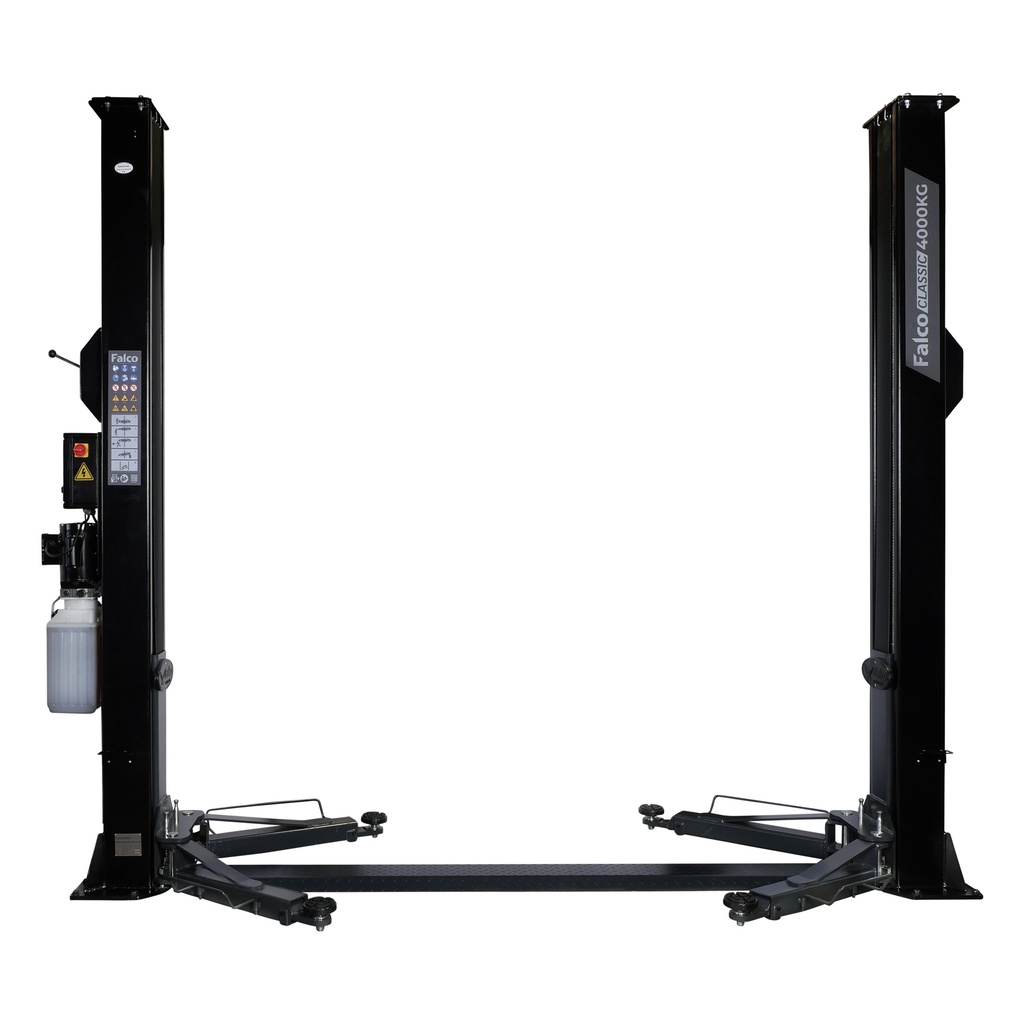

Two post lift / two colum lift

Thanks to the thoughtful design of Falco lifts, you save time and effort. The focus is on ease of use and efficient work flow. The different models are developed for various applications.
The "Classic" model is a very and succesful and reliable model. Due to its simple but sturdy structure, the lift has no weak superfluous components and is extremely durable. Thanks to the new manual sync lock system, the lift can easily be unlocked on both sides with just one action.

Features:

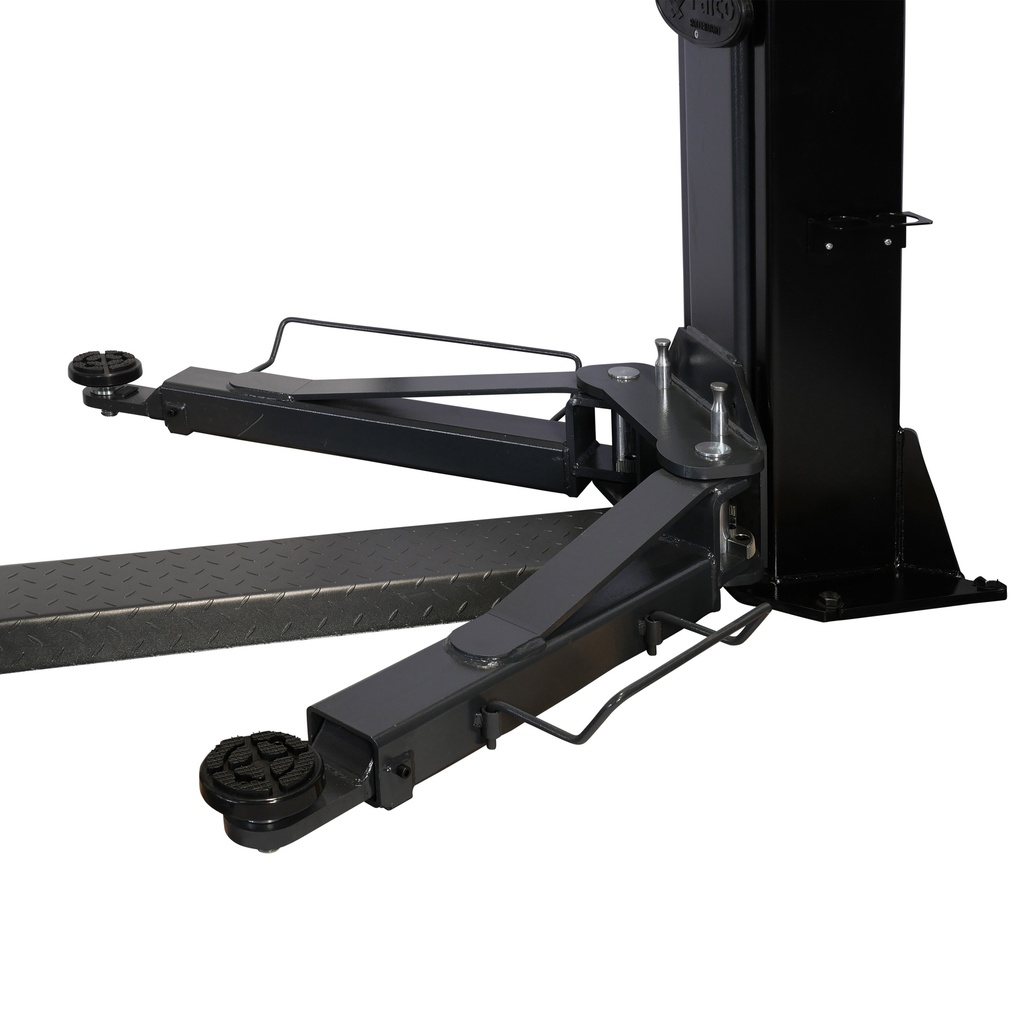

  • double telescopic extendable lifting arms

  • sync lock system

  • good quality hydraulic pump

  • in height adjustable lifting pads

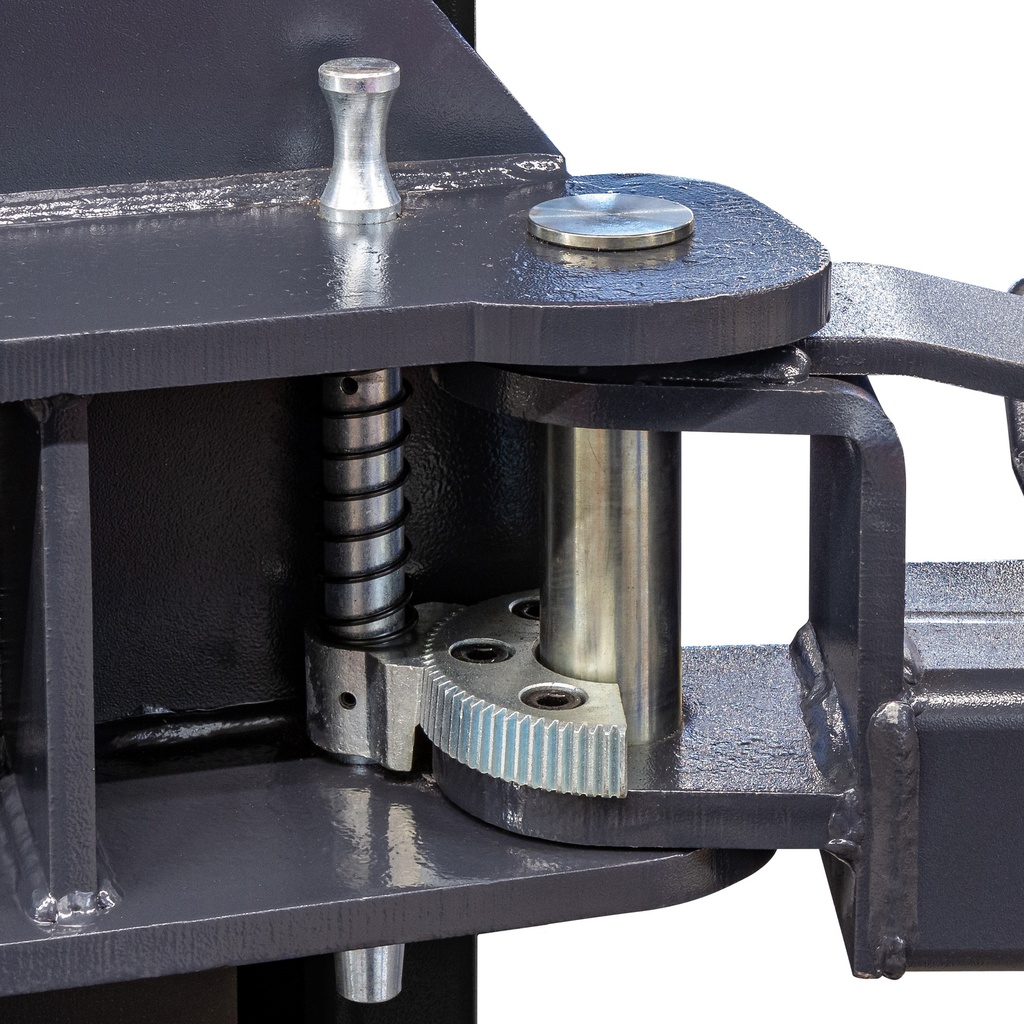

  • automatic support arm locking

  • fully automatic electric detent

  • protective rubbers door stop

  • foot protection at every lifting arm

  • protective caps on the inside of the columns

  • robust columns manufactured from rolled steel

  • hydraulic cylinder on both sides

  • extreme low threshold of 45mm

  • dead mans switch for lifting and lowering

  • automatic protection against overcharge

  • height limit switch

  • 12 heavy M18 security bolts

All of Falco's car lifts comply with the NEN-EN1493 safety standard and are supplied with a Dutch manual including maintenance protocol and CE certificate 2006/42/EC.

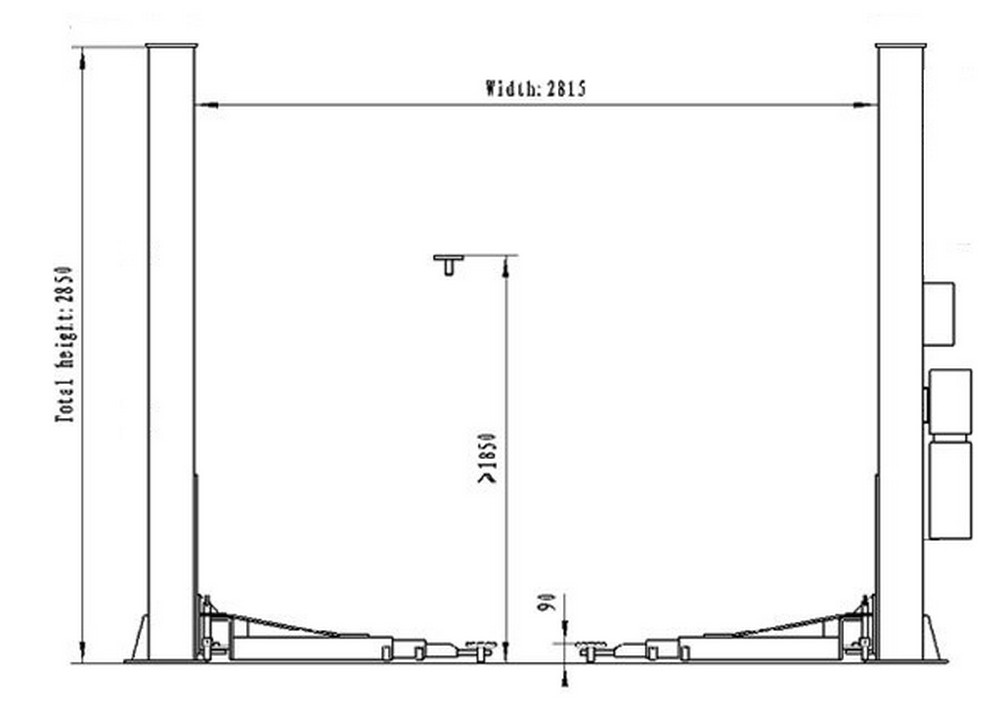

Technical specifications

  • Lifting capacity = 4000 kg
  • Lifting height min. = 95 mm
  • Voltage = 230V - 1 Phase
  • Lifting height max. = 2000 mm
  • Telescopic arm short = 735 - 1150 mm
  • Telescopic arm long = 840 - 1320 mm
  • Oil type = CH32
  • Motor capacity = 2.2 kW
  • Columns height = 2850 mm
  • Drive-through width = 2815 mm

Dimensions and weights

  • Weight =650.0Kg
  • Product weight =610.0Kg
  • Length =3000.0mm
  • Width =470.0mm
  • Height =830.0mm
  • Product Length =3440.0mm
  • Product Width =700.0mm
  • Product Height =2850.0mm
