Product Code: XP19CTD
EAN: 8720028071074
PRODUCT DESCRIPTION

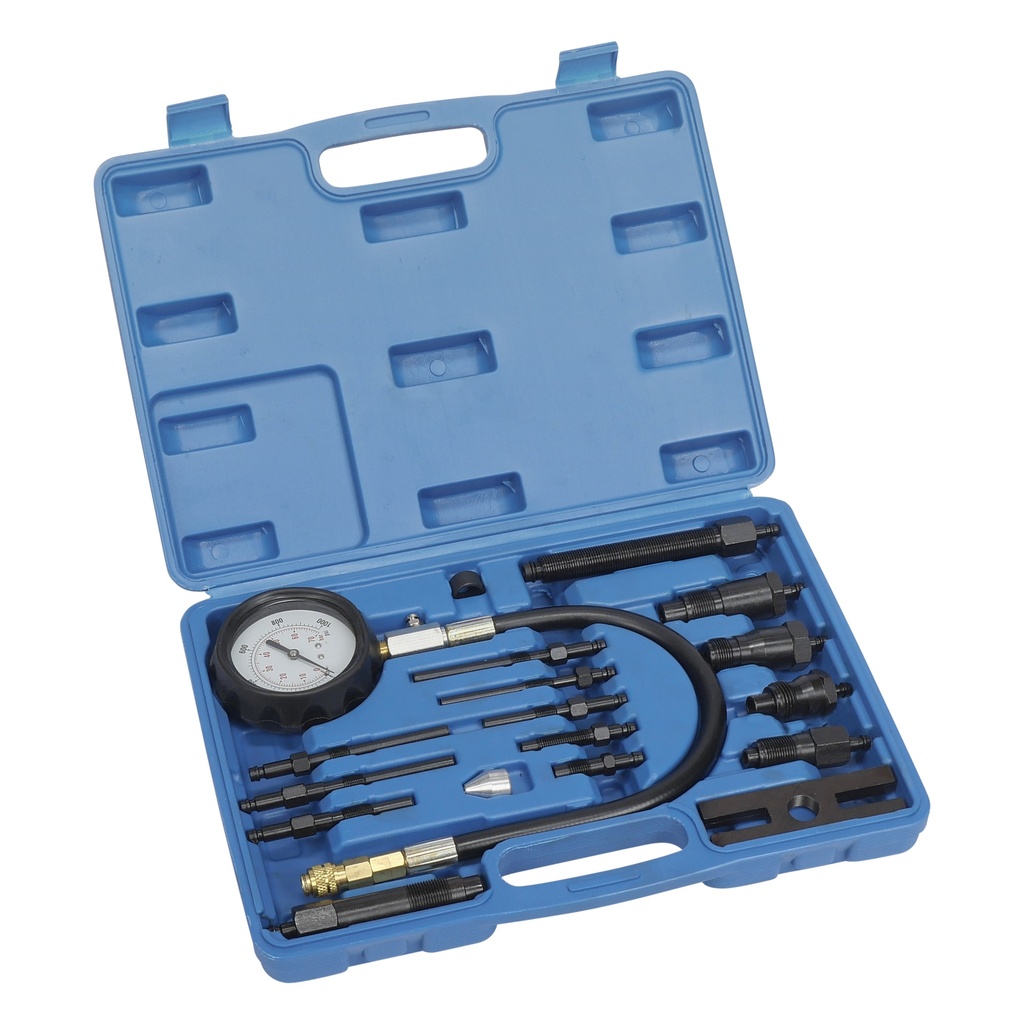

Compression tester kit diesel
This tester kit is suitable for the measurement of compression loss in almost every diesel engine from both cars and trucks.
The pressure gauge has a range of 0 - 70bar (0 - 1000psi) and a flexible hose of 360mm. Furthermore, the compression meter is equipped with a built-in resetter.
4 injector adapters:
M20 x 1,5 x 75mm
M22 x 1,5 x 73mm
M24 x 1,5 x 88mm
M24 x 2,0 x 63mm
9 glow plugs adapters:
M10 x 1,0 x 83mm
M10 x 1,0 x 91mm
M10 x 1,0 x 102mm
M10 x 1,0 x 113mm
M10 x 1,0 x 119mm
M10 x 1,25 x 64mm
M10 x 1,25 x 135mm
M12 x 1,25 x 47mm
M22 x 1,5 x 118mm
Technical specifications
Dimensions and weights
- Weight =3.05Kg
- Product weight =3.05Kg
- Length =380.0mm
- Width =270.0mm
- Height =75.0mm
- Product Length =380.0mm
- Product Width =270.0mm
- Product Height =75.0mm
