Product Code: XP20CTT
EAN: 8720028076475
PRODUCT DESCRIPTION

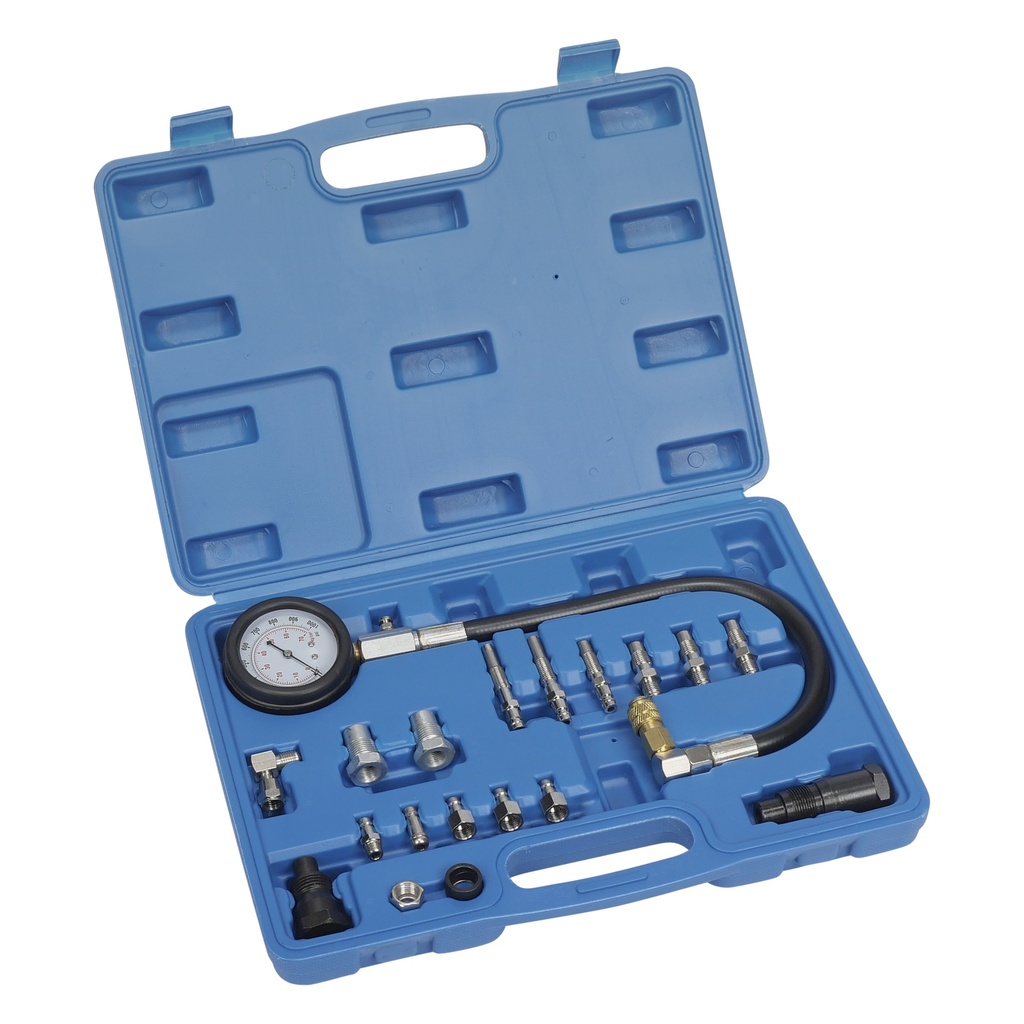

Truck compression gauge / compression test set
This compression test set is suitable for checking the condition of a diesel engine. With no fewer than 7 adapters, the set is suitable for almost all truck diesel engines.
The set consists of a pressure gauge with hose, a 90 degree fitting and 7 adapters.
The pressure gaug is clearly legible, has 2 scales, a vent valve, a range of 0 - 70bar (0 - 1000psi) and a flexible hose of 360mm with a quick coupling at the end. The 7 adapters can easily be connected here. The 90 degree fitting ensures that hard to reach places are also accessible.
Furthermore, the compression meter is equipped with a built-in resetter.
Spark plug adapters:
M10 x 1.0 x 68mm
M10 x 1.25 x 54mm
M10 x 1.25 x 68mm
M12 x 1.25 x 45mm
Nozzle adapters:
M18 x 1.5
M24 x 1.5
M24 x 2.0
Technical specifications
Dimensions and weights
- Weight =1.95Kg
- Product weight =1.95Kg
- Length =380.0mm
- Width =280.0mm
- Height =75.0mm
- Product Length =380.0mm
- Product Width =280.0mm
- Product Height =75.0mm
