Product Code: YM168FR2R
EAN: 8720028055319
PRODUCT DESCRIPTION

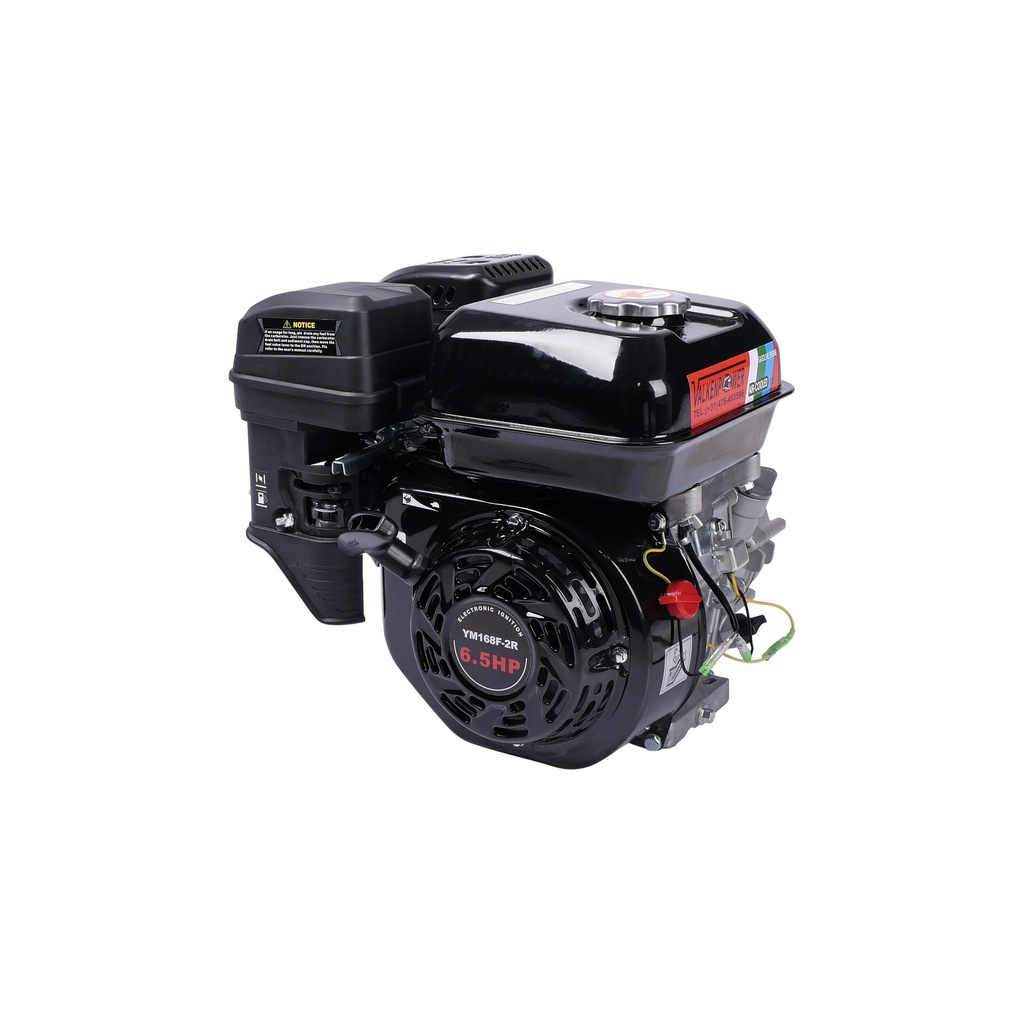

Gasoline engine hand start
This gasoline engine is used as a replacement for engines from wsater pumps, industrial and agricultural machinery. The engine starts quickly and is provided with an air filter.
Technical specifications:
type = 4-stroke / 1-cylinder
bore and stroke = 68 x 54mm
shaft size = 20mm
displacement = 196cm³
max. power = 4,0kW / 1800rpm
max. torque = 24Nm / 1250rpm
compression ratio = 8,5 : 1
oil capacity = 0,55L
tank capacity = 3,6L
air cooled
ignition = TCI
PTO rotation = left / anticlockwise
Technical specifications
Dimensions and weights
- Weight =21.5Kg
- Product weight =16.0Kg
- Length =400.0mm
- Width =400.0mm
- Height =345.0mm
- Product Length =420.0mm
- Product Width =360.0mm
- Product Height =335.0mm
