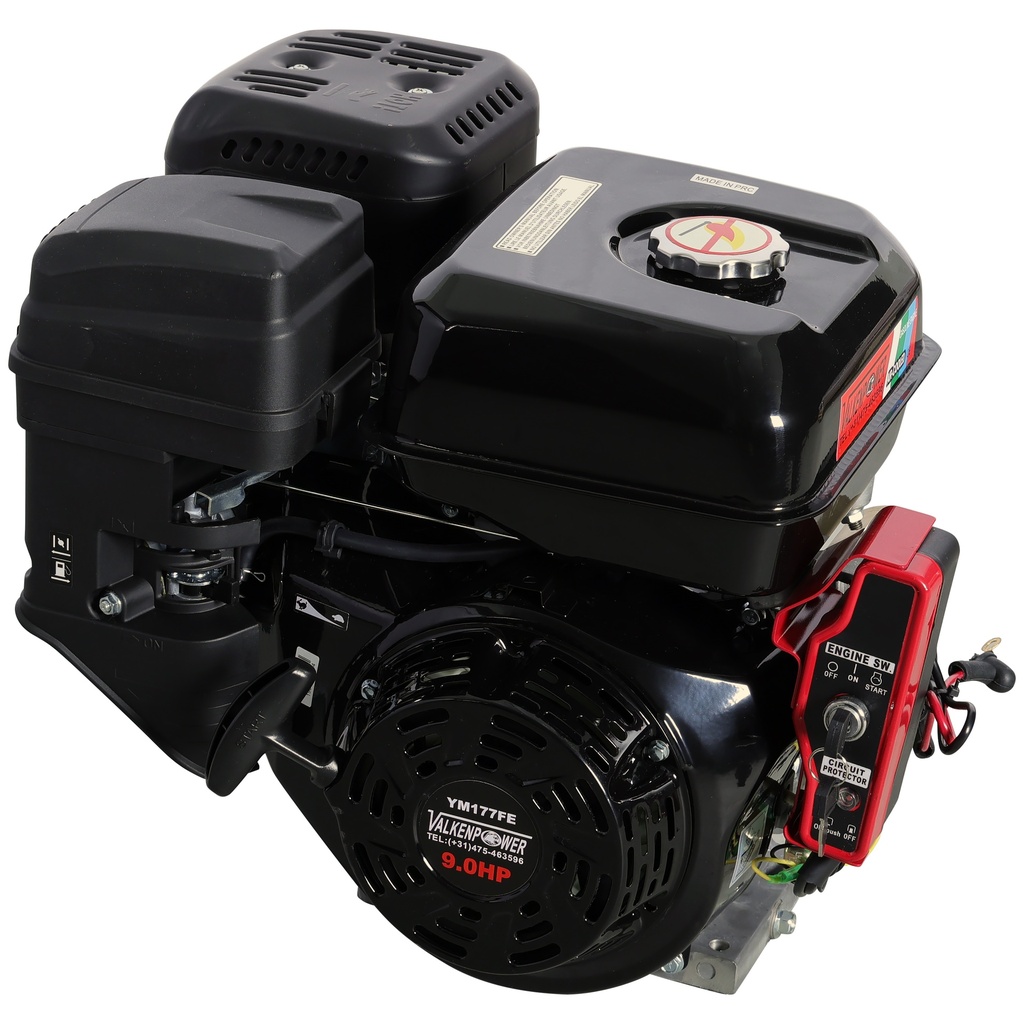

[YM177FE250] Valkenpower gasoline engine E-start 7.5 hp shaft size 25 mm

€ 0.00 € 295.00

  • Engine type
  • Displacement
  • Cylinder bore
  • Cylinder stroke
  • Compression ratio
  • Max. power
  • Torque max.
  • Starting system
  • Ignition system
  • Cooling system
  • Oil type
  • Oil capacity
  • Fuel tank capacity
  • Output shaft rotation
  • Shaft size
  • Flange thread
  • Flange center to center distance
  • Montagevoet hart op hart maat
  • Montagevoet hart op hart maat
Add to cart
Add to wishlist
Contact Us


Generator, motor and pump / Engines and accessories / Gasoline engines

Product Code: YM177FE250

EAN: 8720028087051

PRODUCT DESCRIPTION

Valkenpower 7.5 hp petrol engine is a 4-stroke single-cylinder OHV engine with electric start and is universally applicable as a drive motor in various machines.

Technical specifications

  • Engine type = 4 stroke, single cylinder, OHV
  • Displacement = 270 cm³
  • Cylinder bore = 77 mm
  • Cylinder stroke = 58 mm
  • Compression ratio = 8.2 : 1
  • Max. power = 5.5 kW / 3,600 rpm
  • Torque max. = 16.5 Nm / 2500 rpm
  • Starting system = Manual / Electric
  • Ignition system = T.C.I.
  • Cooling system = air-cooled
  • Oil type = O15W40
  • Oil capacity = 0.8 L
  • Fuel tank capacity = 6.5 L
  • Output shaft rotation = Counterclockwise

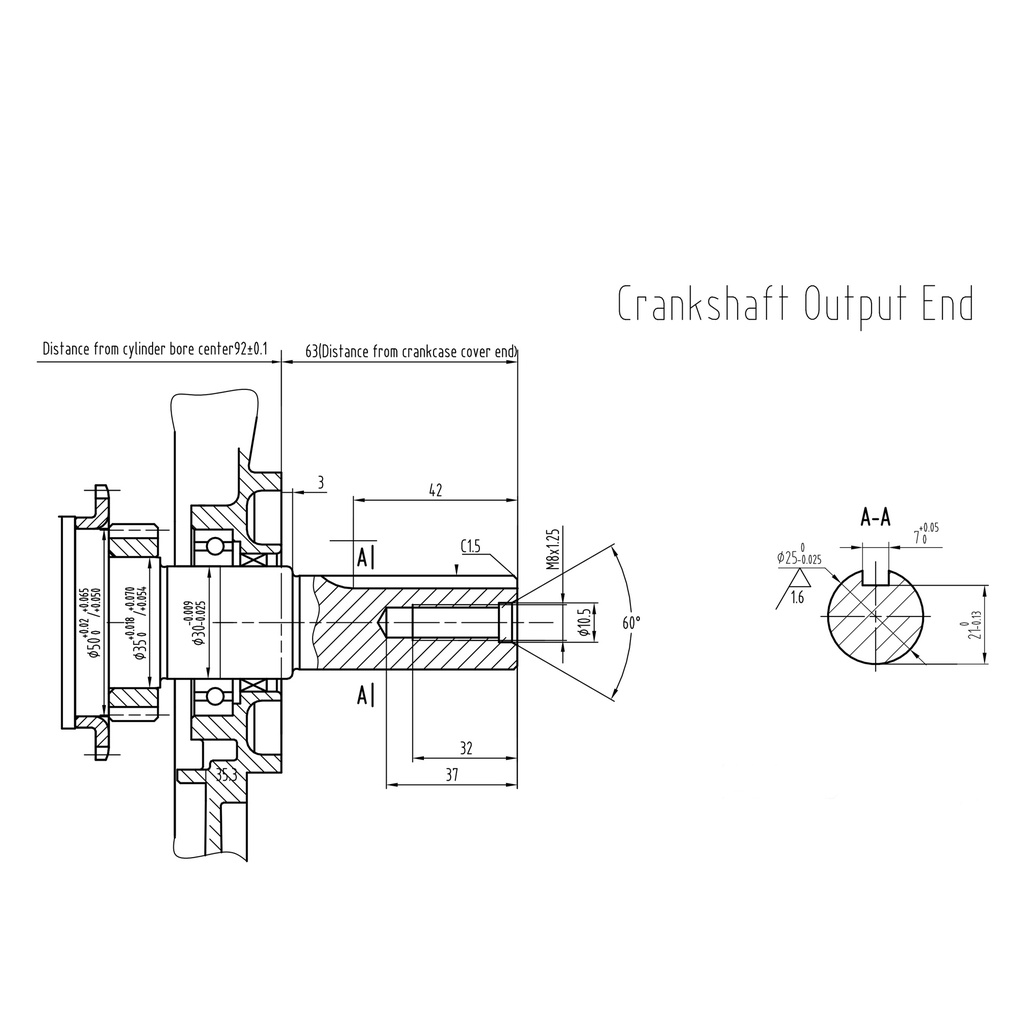

  • Shaft size = 25 mm

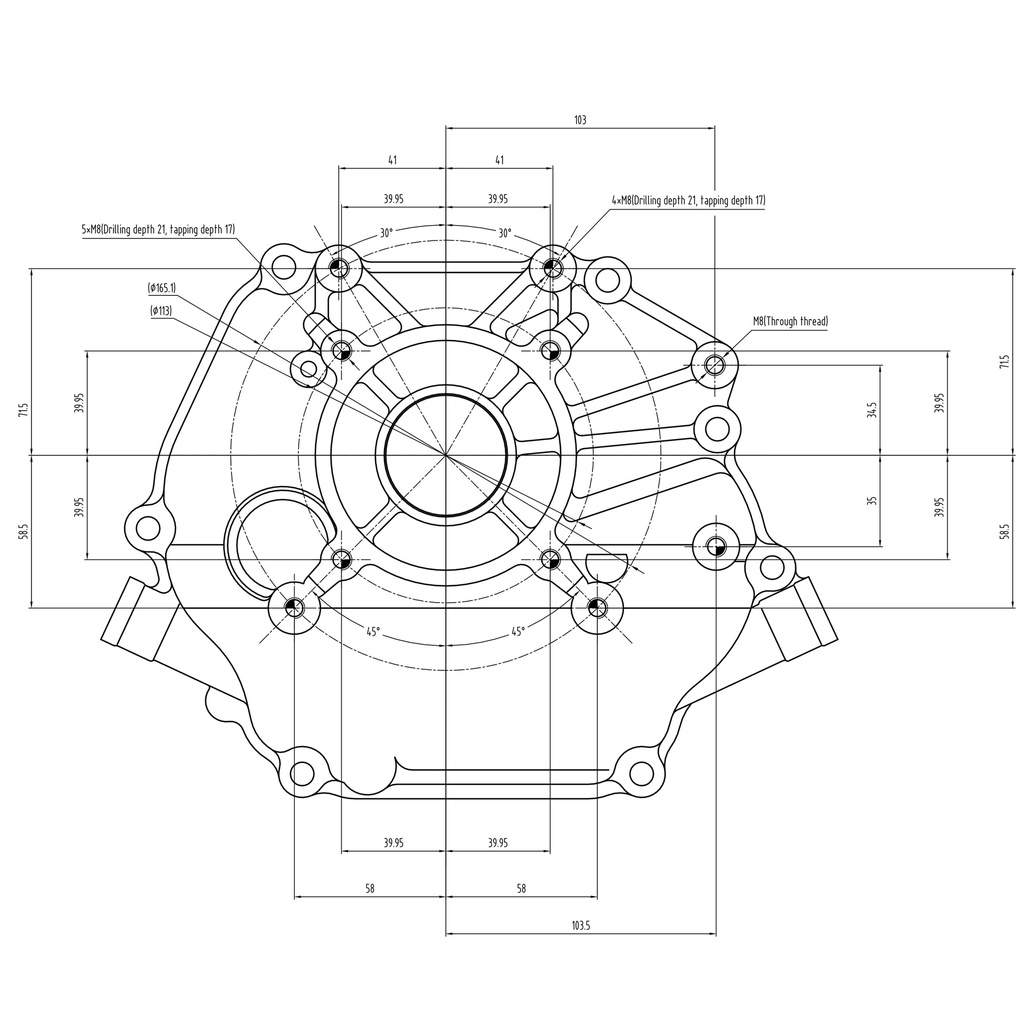

  • Flange thread = M8 internal
  • Flange center to center distance = 79,9 mm

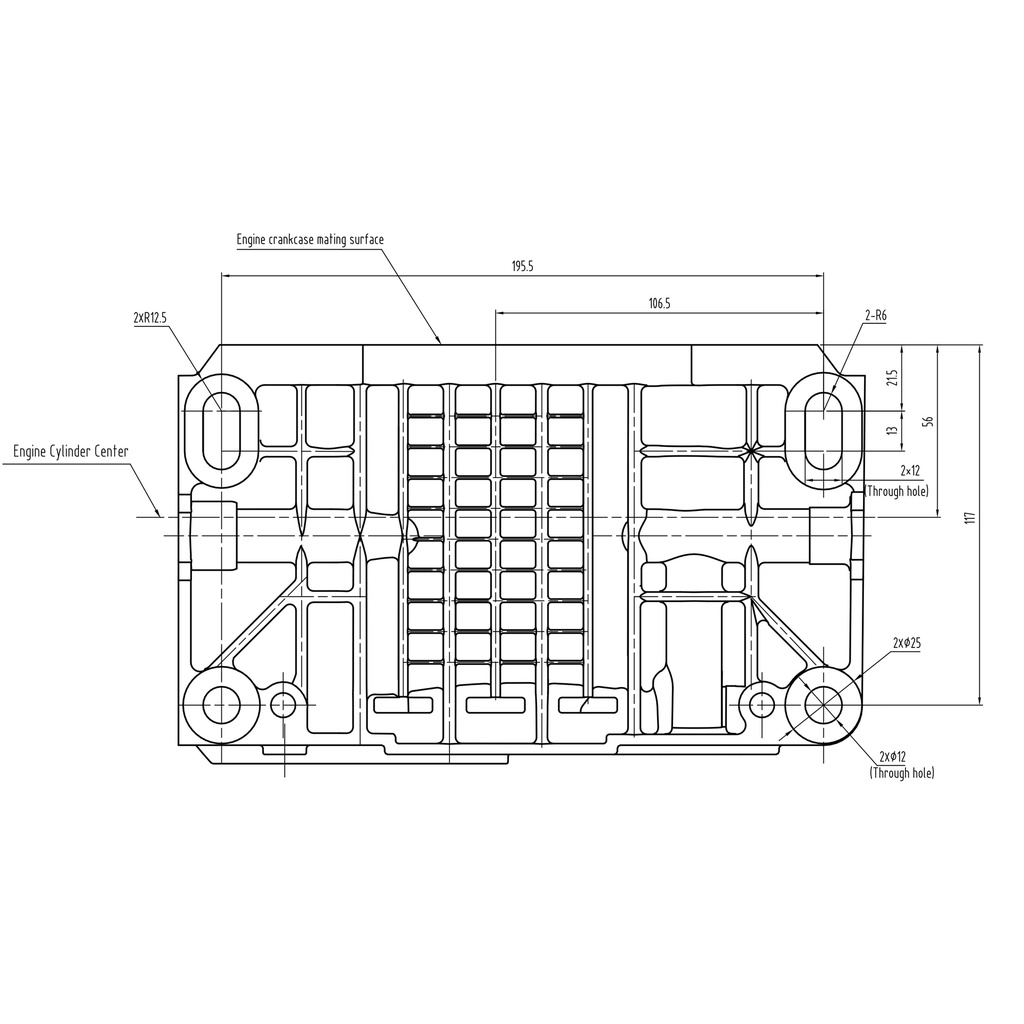

  • Montagevoet hart op hart maat = 195 mm , 95 mm

Dimensions and weights

  • Weight =28.0Kg
  • Product weight =27.0Kg
  • Length =540.0mm
  • Width =460.0mm
  • Height =470.0mm
  • Product Length =520.0mm
  • Product Width =360.0mm
  • Product Height =445.0mm
