[ZH825B] Fabbri ZH825B wheel balancer semi-automatic

€ 0.00 € 735.00

  • Power supply
  • Motor power
  • Wheel weight max.
  • Wheel diameter max.
  • Rim diameter range
  • Rim width range
  • Balancing accuracy (car wheels)
  • Balancing shaft
  • Balancing time
  • Noise level
  • Cone size (max. - min.)
  • Cone size (max. - min.)
  • Cone size (max. - min.)
  • Cone size (max. - min.)
  • Automatic wheel rotation
  • Manual input of rim parameters
  • Optional motorcycle accessory pack
  • Multiple balancing programs
  • Rim diameter range 10" - 24"

Shop equipment / Tyre service / Tyre balancer

Product Code: ZH825B

EAN: 8720028071937

PRODUCT DESCRIPTION

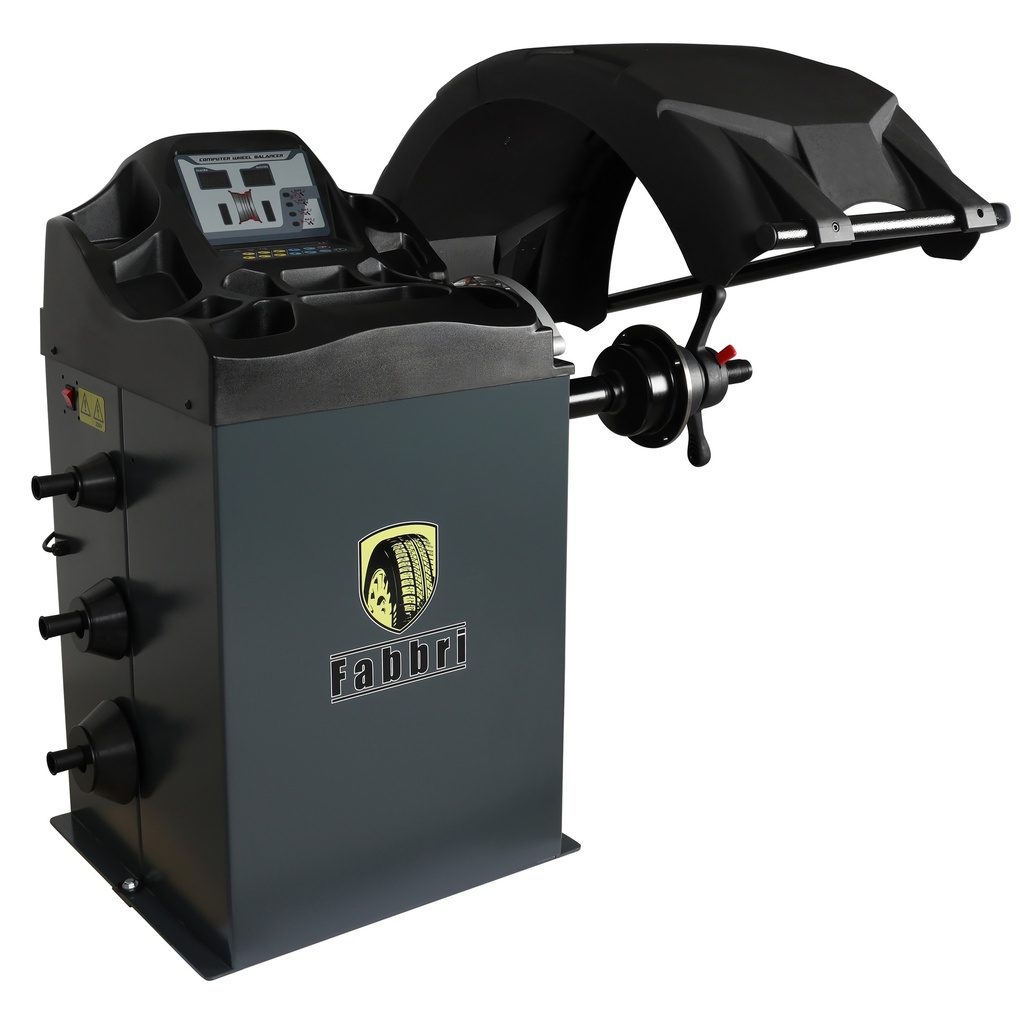

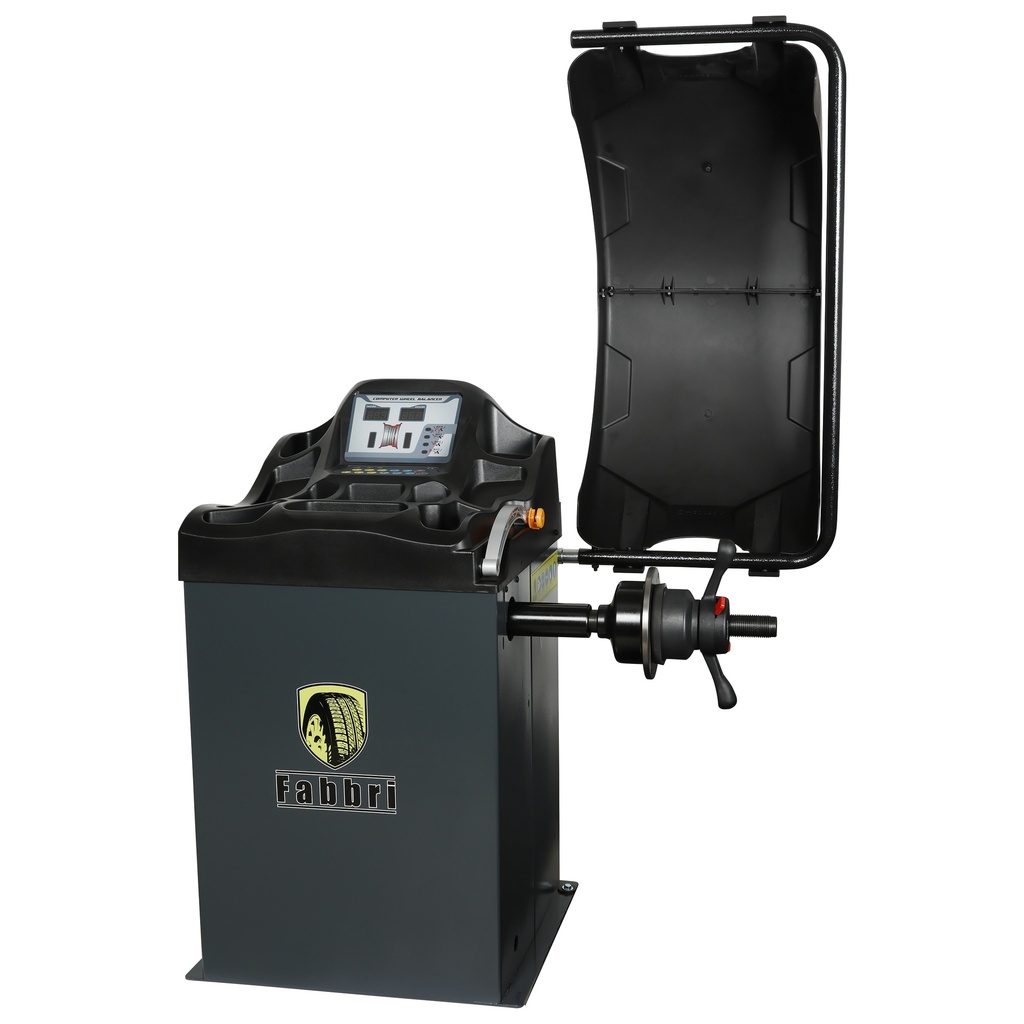

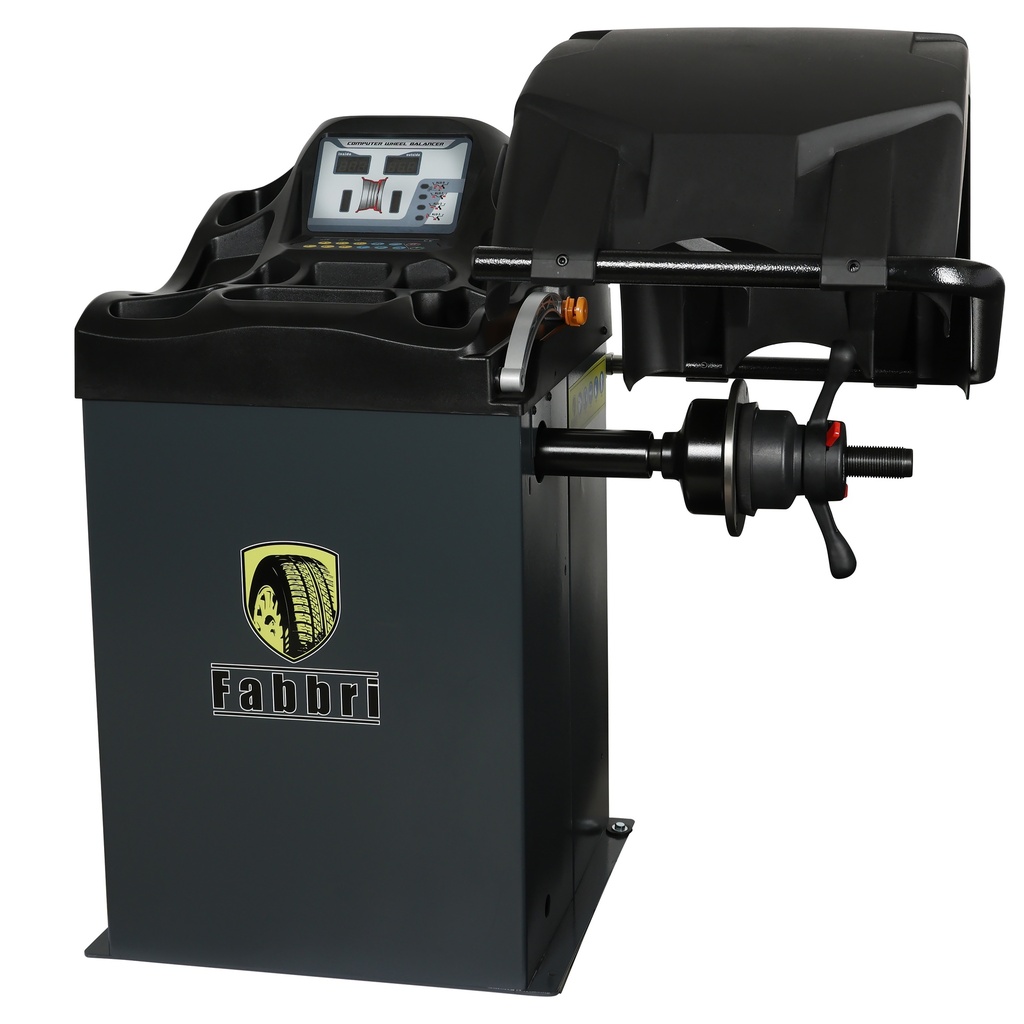

The Fabbri balancing machine ZH825B is a semi-automatic, user-friendly model ideal for professional garages and workshops where speed, safety and reliability are key. Thanks to the built-in motor, the wheel is automatically rotated for fast and accurate balance measurement. Parameters are entered manually, allowing the user to maintain full control.

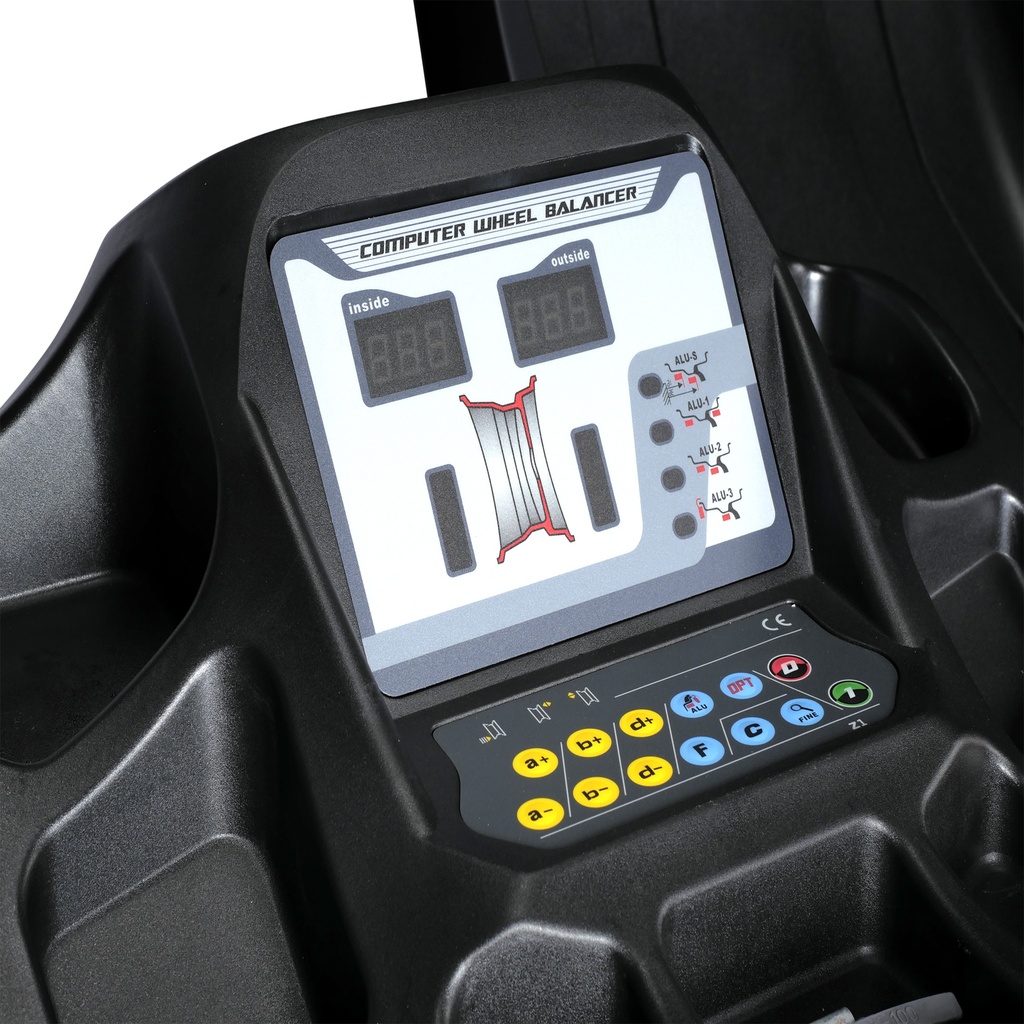

With a wheel weight capacity of up to 65 kg and a rim diameter range of 10“ to 24”, this wheel balancer is suitable for a variety of vehicles. The protective cover increases safety and automatically activates the measuring process as soon as it is closed. Operation via clear buttons ensures efficient operation.

Key features:


  • Automatic wheel rotation

Electrically driven for faster and more consistent balancing.

  • Manual input of rim parameters

For precise setting of diameter, spacing and width.

  • Optional motorcycle accessory pack

For balancing motorcycle tires with the SBM99MA adapter.

  • Multiple balancing programs

For dynamic balancing of steel and aluminum car rims, and static balancing of motorcycle wheels.

  • Rim diameter range 10" - 24"

Also suitable for SUVs and light commercial vehicles.

A reliable choice for mechanics looking for a semi-automatic tyre balancer for workshop use.


Standard accessories included:

Wheel pliers

Calibration weight

Wheel width gauge

Balancing clamp

Conuss kit

Technical specifications

  • Power supply = 230V
  • Motor power = 0.2 kW
  • Wheel weight max. = 65 kg
  • Wheel diameter max. = 1000 mm
  • Rim diameter range = 10" - 24" (254 - 610 mm)
  • Rim width range = 1.5" - 17" (38 - 432 mm)
  • Balancing accuracy (car wheels) = 1g
  • Balancing shaft = 36 mm
  • Balancing time = 7 sec.
  • Noise level = <70 dB
  • Cone size (max. - min.) = 65mm - 45mm , 80mm - 55mm , 110m - 75mm , 135mm - 95mm

Dimensions and weights

  • Weight =97.0Kg
  • Product weight =82.0Kg
  • Length =900.0mm
  • Width =560.0mm
  • Height =1150.0mm
  • Product Length =1140.0mm
  • Product Width =670.0mm
  • Product Height =1120.0mm
