PRODUCT DESCRIPTION
This series of Mammuth air bellow jacks are increasingly being used instead of the standard pneumatic jack. The air bellow jack lifts faster, is more manageable and is easy to store upright.
Thanks to its sophisticated design, this pneumatic balloon jack has te following useful features:
2 sturdy bellows with a wall thickness of 7 - 7,5mm
weighs only 15kg, but is still very solid
safety overload valve
guide ring in cylinder for smooth working and durability

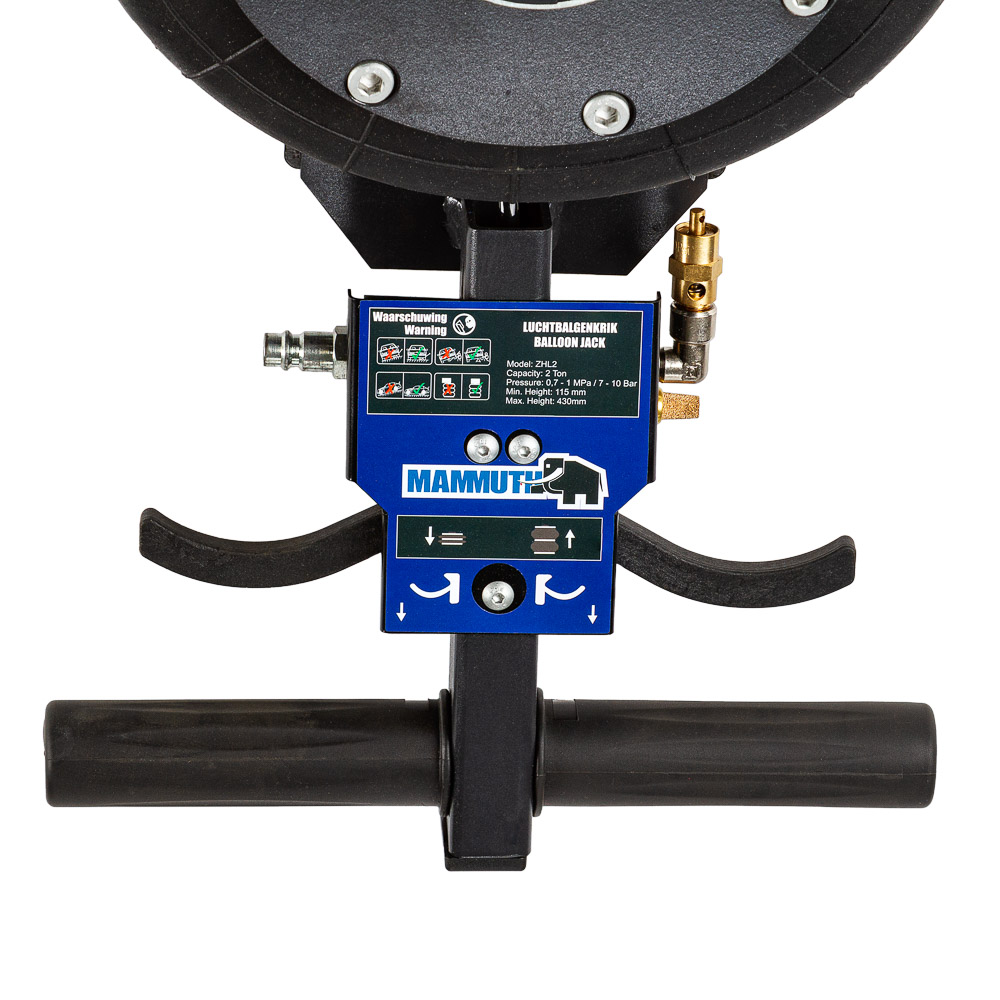

ergonomic automatic switch, ensures safe and easy operation
space saving
ideal for the workplace, but also on the road

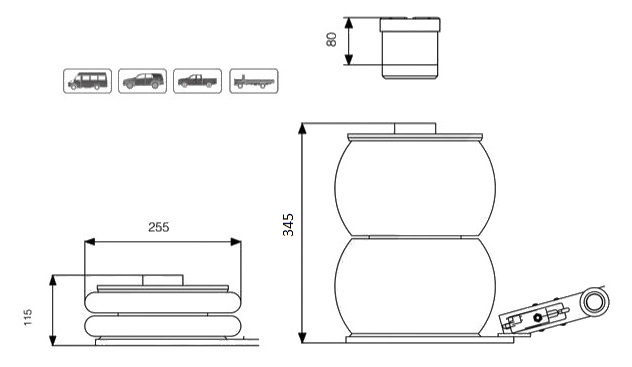

Specifications:
capacity = 2T
minimum lifting height = 115mm
maximum lifting height without adapter = 345mm
maximum lifting height with adapter = 425mm
lifting height = 230mm
adapter = 80mm
working pressure = 7 - 10 bar
Technical specifications
Dimensions and weights
- Weight =15.5Kg
- Product weight =15.0Kg
- Length =515.0mm
- Width =280.0mm
- Height =135.0mm
- Product Length =1200.0mm
- Product Width =225.0mm
- Product Height =135.0mm
